Bently Nevada 330104-01-09-50-01-05 3300 XL 8 mm Proximity Probe

330104-01-09-50-01-05
330104-01-09-50-01-05
330104-01-09-50-01-05

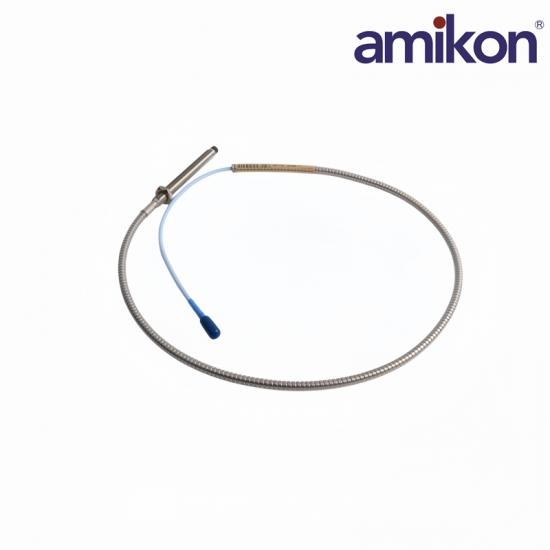

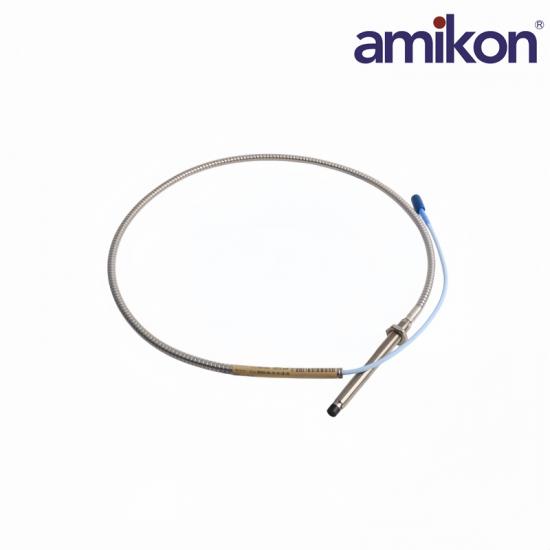

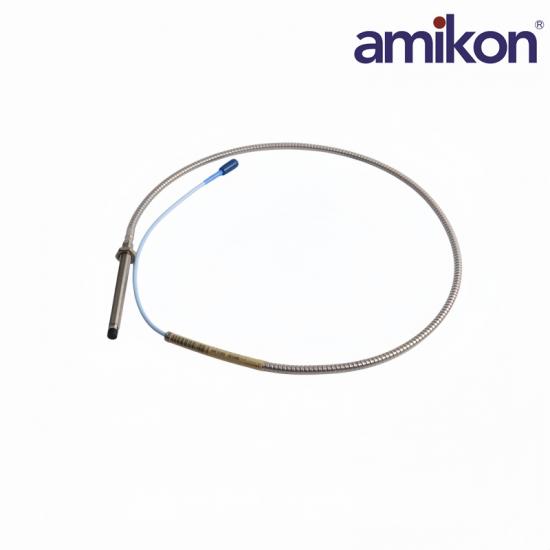

Bently Nevada 330104-01-09-50-01-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL Proximity Transducer System

330104-01-09-50-01-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330104-01-09-50-01-05
PART NUMBER330104-01-09-50-01-05
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330104-01-09-50-01-05

  • Order(MOQ):

    1

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Bently Nevada 3300 XL Proximity Transducer System

330104-01-09-50-01-05

Price and Availability Inquiry

The Bently Nevada 330104-01-09-50-01-05 is a 3300 XL 8 mm proximity probe with M10 × 1 mounting, armored cable, 10 mm unthreaded length, 90 mm overall case length, 5.0 m (16.4 ft) total probe length and a miniature coaxial ClickLoc connector with protector.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330104-01-09-50-01-05 and required quantity in your inquiry.

Bently Nevada 330104-01-09-50-01-05

Technical Specifications

Official order-code, mechanical, interface, performance and environmental data for this 3300 XL 8 mm probe variant.

01Product IdentityExact probe identification
ManufacturerBently Nevada
Order number330104-01-09-50-01-05
Product designation3300 XL 8 mm Proximity Probe
Product family3300 XL Proximity Transducer System
02Mechanical ConfigurationOrder-code dimensions and construction
Mounting threadM10 × 1
Cable armorWith armor
Unthreaded length10 mm
Overall case length90 mm
03Cable & InterfaceProbe lead and connection data
Total probe length5.0 m (16.4 ft)
ConnectorMiniature coaxial ClickLoc with protector
Approval optionCSA / ATEX / IECEx
Cable construction75 Ω triaxial, FEP-insulated standard cable
04Performance & Environment3300 XL system-level ratings
Linear range2 mm (80 mils), approx. 0.25–2.3 mm
Nominal scale factor7.87 V/mm (200 mV/mil), ±5%
Frequency response0–10 kHz, +0/−3 dB
Probe temperature−52 to +177 °C (standard probe)

Bently Nevada 330104-01-09-50-01-05 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 330104-01-09-50-01-05.

01

How should the 5 m armored probe be ordered?

Order the complete number 330104-01-09-50-01-05. The 330104 prefix denotes the M10 × 1 probe configuration with armored cable.

02

Which dimensions are defined by codes 01 and 09?

Code 01 specifies 10 mm unthreaded length and code 09 specifies 90 mm overall case length; the mounting thread is M10 × 1.

03

Which total length does code 50 specify?

Code 50 specifies a 5.0 m (16.4 ft) total probe length.

04

How are the cable and connector protected?

Flexible AISI 302/304 stainless-steel armor with an FEP jacket protects the lead. Option 01 adds a miniature coaxial ClickLoc connector and connector protector.

05

Which Proximitor sensor is compatible with the 5 m probe?

The official order guide states that a 5 m probe is for use with a 5 m Proximitor Sensor only.

06

Which linear output data apply to this configuration?

The 5 m system provides a 2.0 mm (80 mil) linear range, a nominal scale factor of 7.87 V/mm (200 mV/mil) within ±5%, and a 0–10 kHz frequency response.

07

How are the hazardous-area approvals identified?

The final code 05 denotes CSA, ATEX and IECEx approvals.
