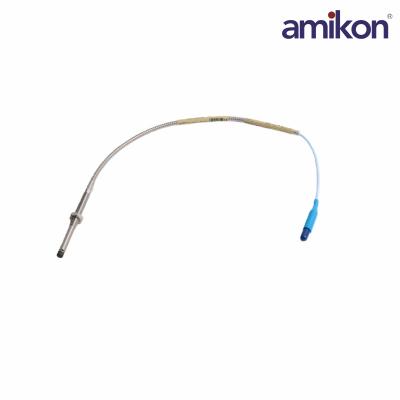

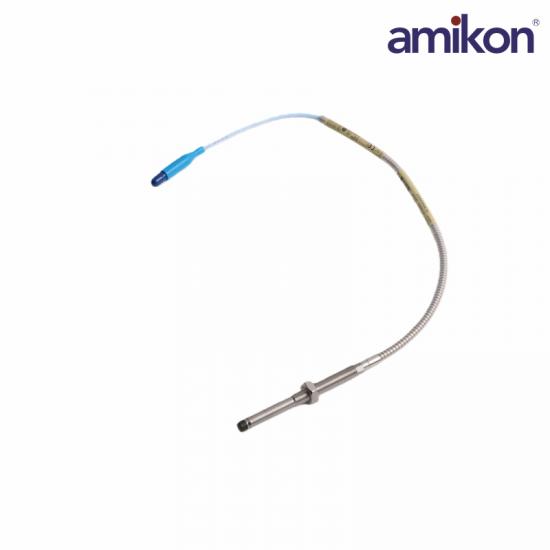

Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

Q1: What is Bently Nevada 330104-04-12-05-01-05 used for?

A: It is designed for non-contact measurement of vibration and shaft displacement in rotating machinery such as turbines, compressors, and motors.

Q2: What is the 330104-04-12-05-01-05 unthreaded length of this probe?

A: The unthreaded length is 4 mm (04 option).

Q3: What is the 330104-04-12-05-01-05 overall case length?

A: The overall case length is 12 mm (12 option).

Q4: What is the 330104-04-12-05-01-05 total cable length?

A: The total length is 0.5 meters (05 option).

Q5: What is the 330104-04-12-05-01-05 probe diameter?

A: The probe diameter is 8 mm, suitable for compact installation spaces.

Product Applications

Steam turbine and generator: Monitor micrometer-level vibrations in the bearing box to prevent rotor from colliding with the stator.

Centrifugal compressor: Used to detect axial displacement and monitor the condition of the thrust bearing to avoid severe mechanical failure.

Industrial pumps and fans: Provide real-time status monitoring data in critical high-speed units.

Gas compressor / turbine expander: Used for mechanical protection in explosion-proof areas in chemical plants.
