Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position)and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

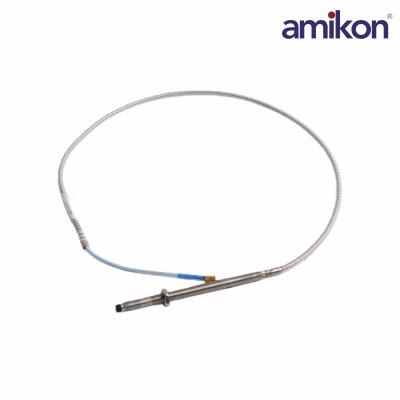

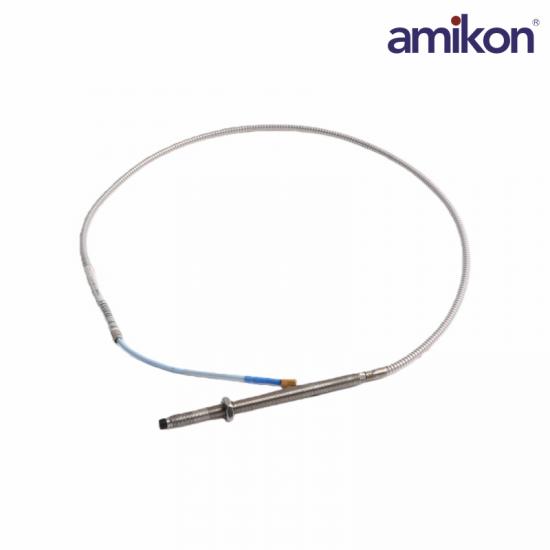

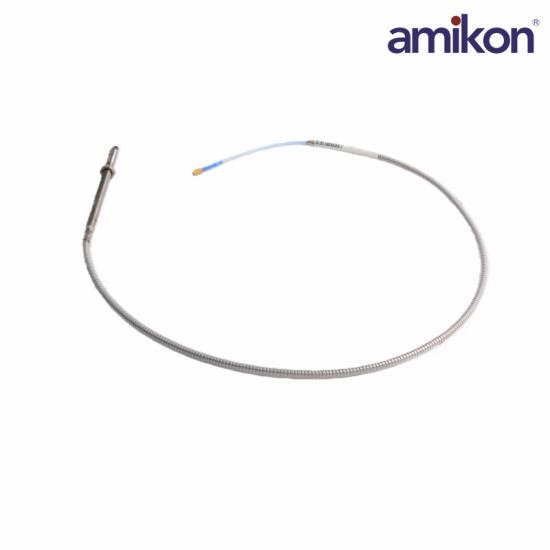

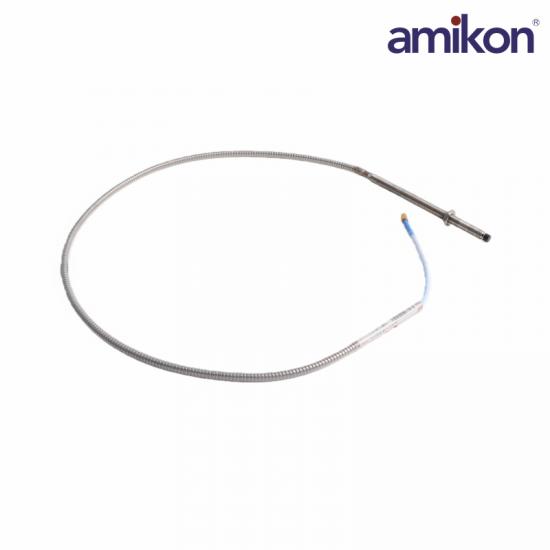

Q1: What is the Bently Nevada 330104-10-15-05-12-05?

A1: It is a proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery, featuring an M10×1 threaded configuration.

Q2: What does the “330104” model indicate?

A2: “330104” identifies the probe as an M10×1 threaded proximity probe, suitable for specific mounting requirements.

Q3: What does the “10” option represent?

A3: “10” specifies an unthreaded length of 100 mm.

Q4: What does the “15” option indicate?

A4: “15” refers to an overall case length of 150 mm.

Q5: What does the “05” option represent?

A5: “05” indicates a total cable length of 5.0 meters.

Product Applications

Power industry: shaft vibration and displacement monitoring of steam turbines, water turbines, generators, feedwater pumps, and induced draft fans.

Petrochemical industry: centrifugal compressors, reciprocating compressors, turbine drive devices, large motors.

Steel metallurgy: displacement monitoring of the rotating parts of blast furnace fans and rolling mills.

Mining and Cement: Fault Warning for Heavy Equipment such as Large Crushers and Coal Mills
