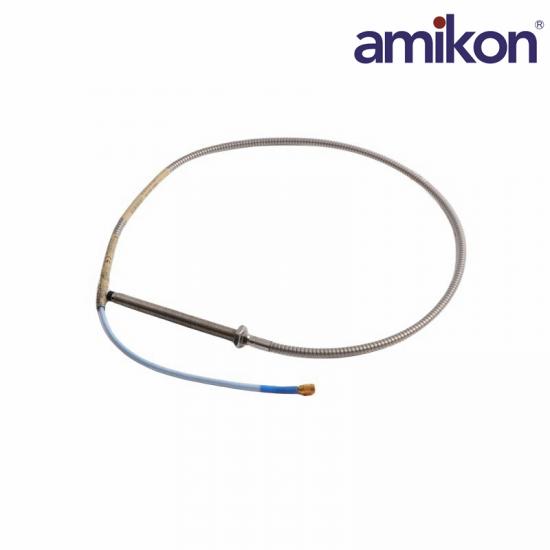

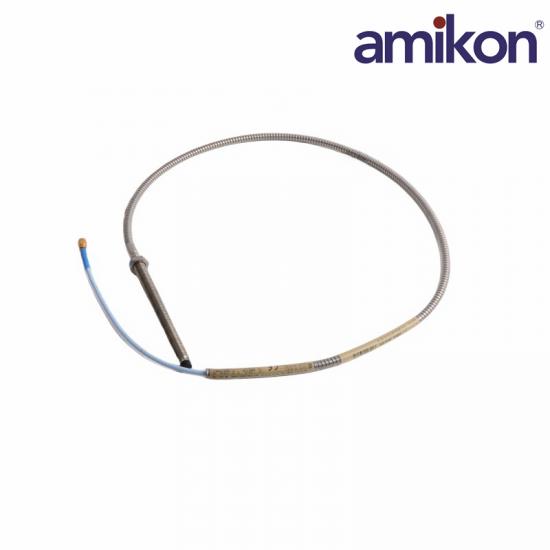

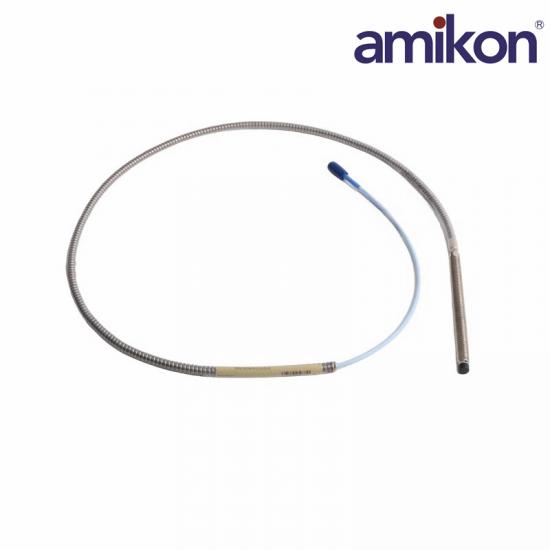

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Proximity Probe

330104-10-15-10-01-05
330104-10-15-10-01-05
330104-10-15-10-01-05

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 mm Proximity Transducer System

330104-10-15-10-01-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330104-10-15-10-01-05
PART NUMBER330104-10-15-10-01-05
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL 8 mm Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330104-10-15-10-01-05

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada · 3300 XL 8 mm Proximity Transducer System

330104-10-15-10-01-05

Price and Availability Inquiry

The Bently Nevada 330104-10-15-10-01-05 is an armored M10 × 1 3300 XL 8 mm proximity probe with 100 mm unthreaded length, 150 mm overall case length, a 1.0 m standard lead, connector protector and multiple approvals.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LLLisa LinSales Specialist
WhatsApp+86 18965423501
Request a Quote on WhatsAppSend Email Inquiry
For faster service, please include the model 330104-10-15-10-01-05 and required quantity in your inquiry.

Bently Nevada 330104-10-15-10-01-05

Technical Specifications

Official ordering-code, mechanical, cable, connector and complete-system data for 330104-10-15-10-01-05.

01Product IdentityExact metric-probe selection
ManufacturerBently Nevada
Order number330104-10-15-10-01-05
Probe family3300 XL 8 mm
Product typeArmored metric proximity probe
02Mechanical ConfigurationArmored metric geometry
Case threadM10 × 1
Cable armorFitted
Unthreaded length100 mm
Overall case length150 mm
03Cable & ConnectorOrdered probe lead
Total probe length1.0 m (3.3 ft)
Cable construction75 Ω triaxial, FEP insulated
Cable optionStandard cable
Connector protectorIncluded
04Performance & ApprovalComplete-system data
System linear range2 mm (80 mil)
System scale factor7.87 V/mm (200 mV/mil)
Probe temperature−52 to +177 °C
Agency approvalCSA, ATEX and IECEx

Bently Nevada 330104-10-15-10-01-05 Product Support

Frequently Asked Questions

Metric mounting, cable protection, system matching and approval guidance for 330104-10-15-10-01-05.

01

How much threaded case remains beyond the 100 mm unthreaded section?

The 150 mm overall case minus the 100 mm unthreaded length leaves 50 mm of threaded-case geometry.

02

Does this 330104 variant satisfy the metric length rule?

Yes. The unthreaded length is 50 mm shorter than the case, exceeding the required minimum 20 mm difference.

03

Which connector protection is included with option 01?

Option 01 combines standard cable, a miniature coaxial ClickLoc connector and a connector protector.

04

How should the 1.0 m probe lead be completed into a system?

Select the extension cable, if required, so the combined probe and cable length equals the chosen 3300 XL Proximitor Sensor system length.

05

Which mechanical interface must be checked before installation?

Confirm the M10 × 1 mounting thread, 150 mm insertion envelope and support for the armored lead.

06

Which approvals accompany the final 05 code?

The ordered approval option covers CSA, ATEX and IECEx; installation must follow the marked hazardous-area documentation.

07

Which information should be retained for replacement ordering?

Retain the full model, 100/150 mm geometry, 1.0 m lead, option 01 protector and final approval code 05.
