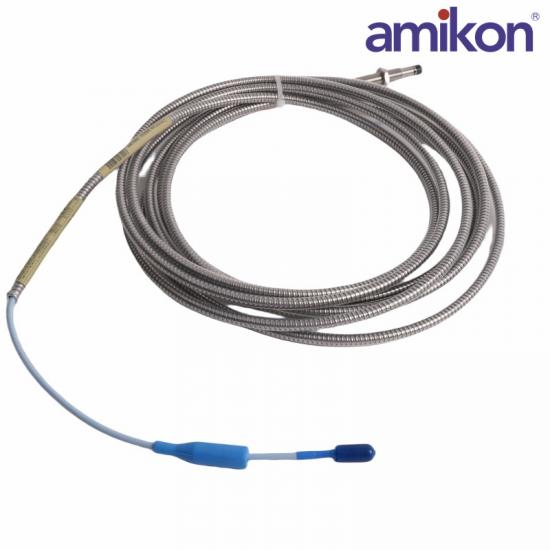

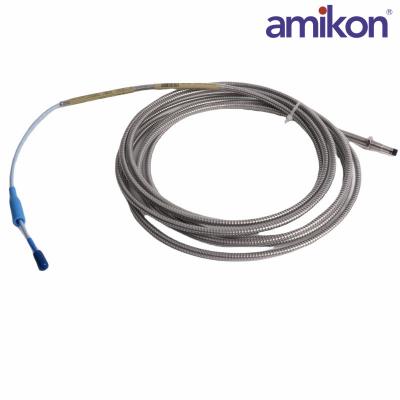

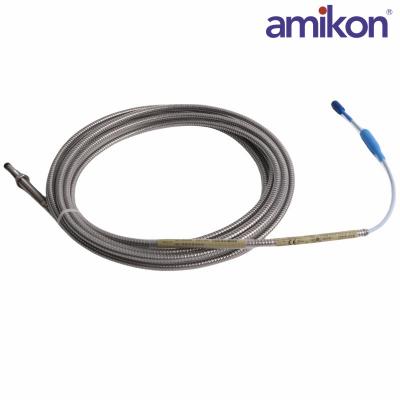

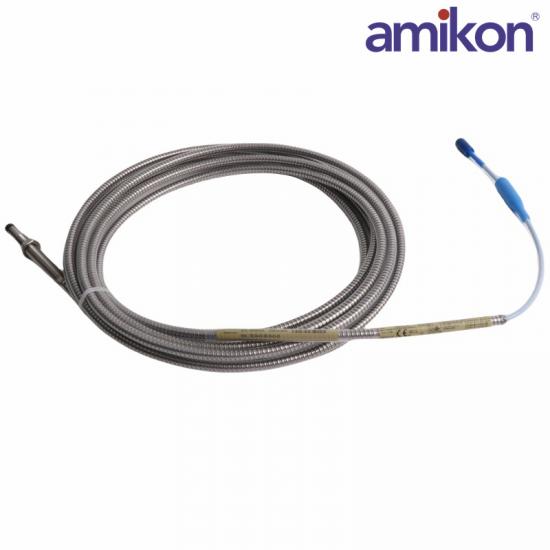

The Bently Nevada 330104-14-19-10-11-00 Proximity Probe is a high-precision eddy current-based sensor designed for continuous monitoring of machinery in industrial applications. This proximity probe is part of Bently Nevada's renowned 3300 and 3500 series, which provide essential data for condition-based monitoring and predictive maintenance. It is used primarily to measure radial displacement or the position of a rotating shaft in relation to its housing or casing, allowing for early detection of issues like misalignment, unbalance, or bearing degradation.

The 330104-14-19-10-11-00 proximity probe is an integral component of machinery protection systems, providing critical data that helps prevent catastrophic equipment failures, reduce downtime, and extend the operational life of rotating machinery.

The  330104-14-19-10-11-00 proximity probe operates on eddy current sensing technology, which detects changes in the magnetic field created by the presence of a conductive object (such as a rotating shaft). As the shaft moves closer or farther from the probe, the changes in the magnetic field are captured and converted into an electrical signal, which can be analyzed by a monitoring system.

The 330104-14-19-10-11-00 proximity probe integrates seamlessly with Bently Nevada’s 3500 and 3300 series vibration and machinery protection systems.

Model Number: Bently Nevada 330104-14-19-10-11-00

Type: Eddy Current Proximity Probe

Measurement Range:

Capable of measuring radial displacement from ±0.025 mm to ±25 mm, depending on the system and machinery configuration.

Typically used for measuring shaft vibration and displacement with high accuracy.

Output Type: 4-20 mA or 0-10 VDC

Frequency Response: 500 Hz

Operating Temperature Range:-40°C to +120°C
