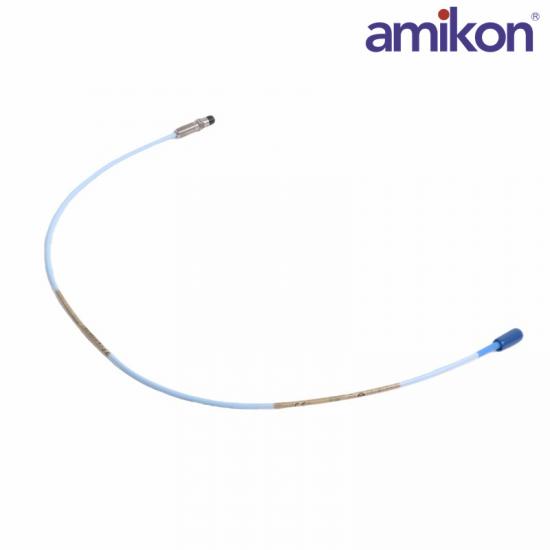

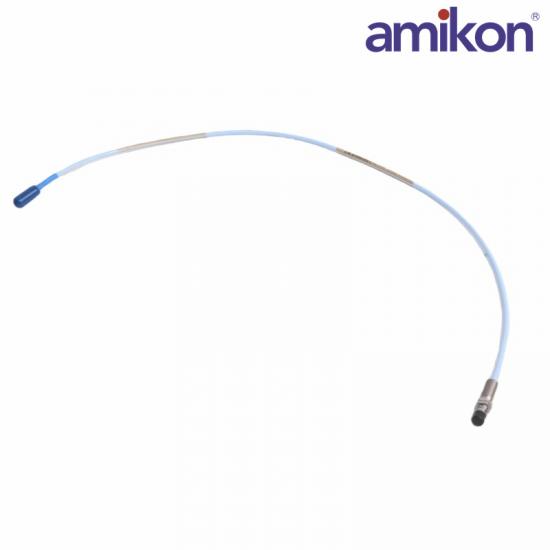

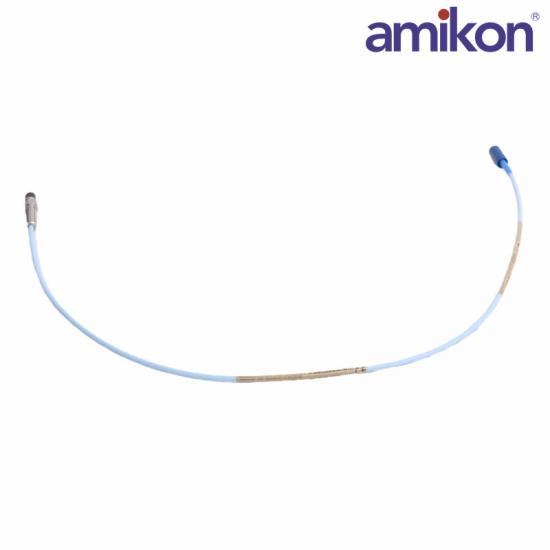

The Bently Nevada 330105-02-12-02-05-00 is an 8 mm Reverse Mount Probe from the 3300 XL series, designed for non-contact displacement and vibration monitoring in various rotating machinery applications. It’s commonly used in harsh industrial environments, such as oil and gas, power generation, and other heavy-duty sectors, for accurate measurements of shaft position and vibration.

Rotating Machinery Monitoring: Specially designed for monitoring turbines, compressors, pumps, and motors, enabling real-time monitoring of vibration and axial displacement.

Process Control Equipment: Used in environments with high temperatures and intense vibration, suitable for critical equipment in petrochemical, pharmaceutical, and paper manufacturing processes.

Equipment Protection Systems: Can be integrated into protection systems to trigger alarms or shutdowns in case of abnormalities, reducing production interruptions due to equipment failure.

Series: 3300 XL

Model: 330105-02-12-02-05-00

Probe Diameter: 8 mm, Reverse Mount

Cable Length: 2 meters

Mounting Option: Reverse mount

Total System Length: 5 meters

Tip Diameter: 8 mm

330105-02-12-02-05-00 Measurement Range: -0.25 mm to +2.25 mm, providing effective monitoring of displacement within this range.

330105-02-12-02-05-00 Sensitivity: 7.87 V/mm (200 mV/mil), a standard for high-sensitivity monitoring of displacement and vibration.

330105-02-12-02-05-00 Temperature: -34 to +177 °C (-29 to +350 °F).

Frequency Response: 0 to 10 kHz, allowing reliable detection of high-speed vibration.

330105-02-12-02-05-00  Allows accurate measurement of displacement and shaft position, enabling critical condition monitoring.
