Description：

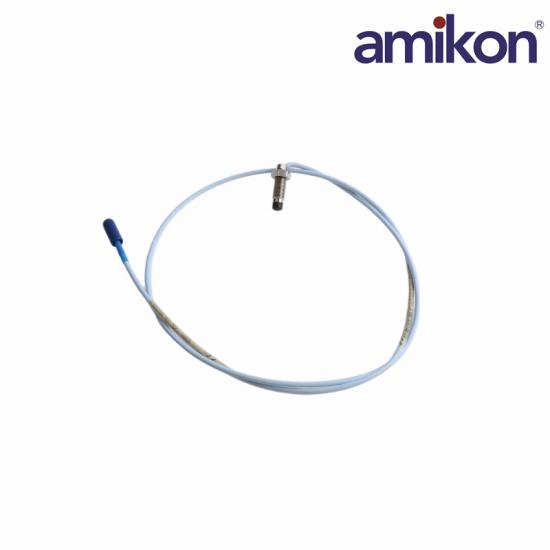

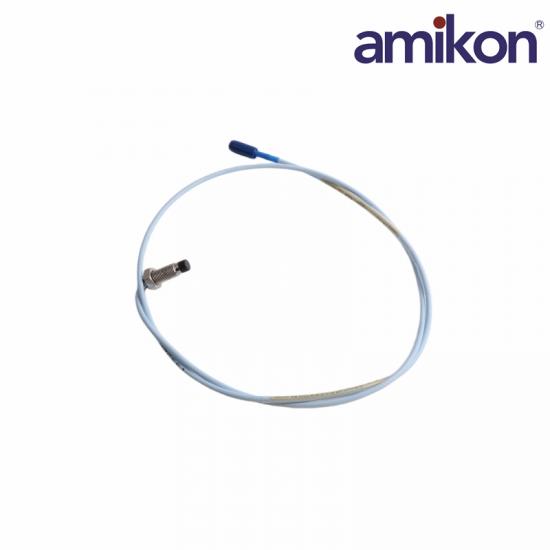

The 330105-XX-XX-10-02-CN represents a Bently Nevada 3300 XL 8 mm reverse mount proximity probe. The "XX" placeholders define customizable options like thread type and cable length, while "10-02-CN" specifies a 1.0-meter cable length, miniature ClickLoc connector, and country-specific agency approvals for China.

The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperaturestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Specification：

Frequently asked questions

Q: What does the base model "330105" represent?

A: It designates the Bently Nevada 3300 XL 8mm Reverse Mount Probe. The reverse mount design allows the probe to be threaded from the outside of the machine housing inward, making maintenance and replacement much easier.

Q: What is the standard linear range of this probe system?

A: When paired with a matching 3300 XL Proximitor Sensor, it provides a standard linear range of 2.0 mm (80 mils).

Q: What is the operating temperature range for this probe?

A: The standard operating temperature range for the probe tip and cable is -51 °C to +177 °C (-60 °F to +350 °F).

Q: What is the typical target material for this sensor?

A: The system is calibrated by default for AISI 4140 steel. Other target metals require specific recalibration or scaling factors.

Product Applications

Oil and Gas: Monitoring of compressors and pumps in oil refineries and gas transmission stations.

Petrochemical Industry: Monitoring of radial vibration and axial displacement of bearings in large rotating machinery (such as steam turbines, centrifugal compressors, and fans).

Heavy Industry and Power Plants: Monitoring and protection of mechanical vibration conditions of fluid diaphragm bearings in thermal power generating units and hydroelectric generating units (TSI system).
