The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor' reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mounting
space6.7

Frequently Asked Questions

Q : What exactly does the model number 330106-05-30-15-02-00 represent?

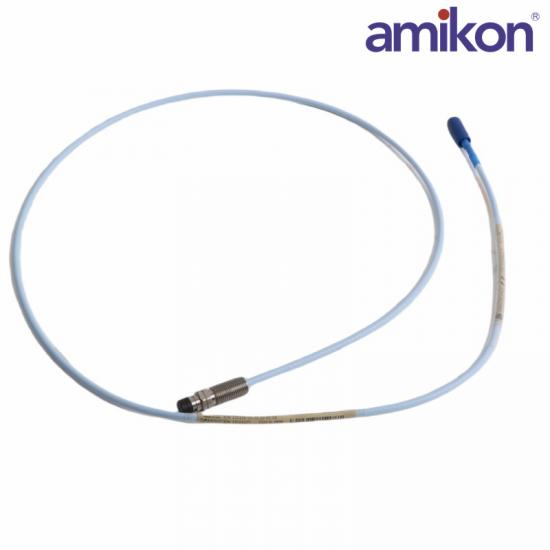

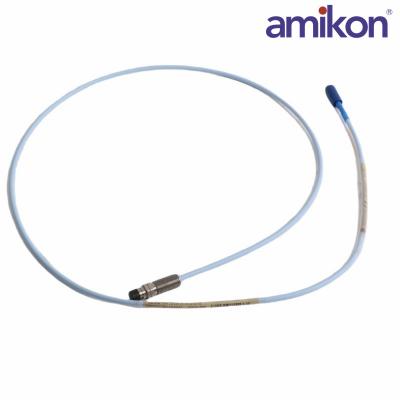

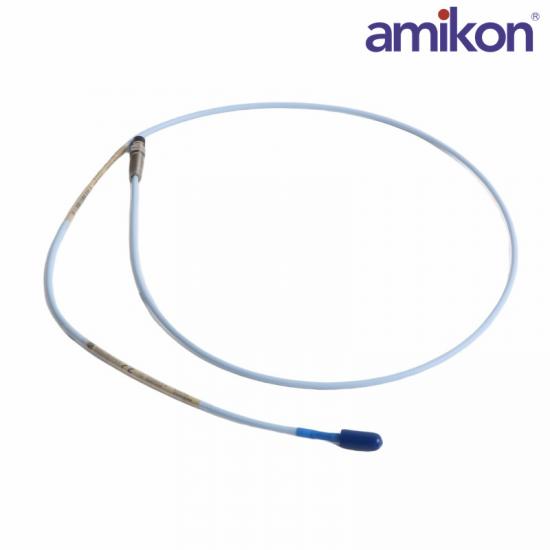

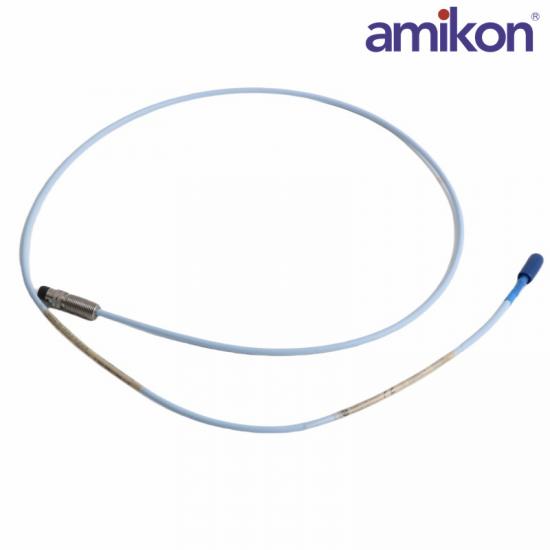

It is a 3300 XL 8mm Reverse Mount Proximity Probe manufactured by Bently Nevada. It is designed to measure shaft vibration, axial position, and speed in critical rotating machinery.

Q : Is this probe compliant with industry standards?
Yes, it fully complies with the API 670 standard (American Petroleum Institute) for machinery protection systems, ensuring top-tier accuracy, reliability, and interchangeability.

Q : What is the linear range of this 8mm probe?
The linear range is 2.0 mm (80 mils), typically starting at 0.25 mm (10 mils) from the probe tip up to 2.25 mm (90 mils).

Q : What is the scale factor of this probe system?
When paired with the correct 3300 XL Proximitor Sensor, it delivers a standard scale factor of 7.87 V/mm (200 mV/mil).

Product Applications
Power Industry: Monitoring shaft vibration and displacement in steam turbines, water turbines, and generators at power plants.
Oil and Gas: High-speed centrifugal compressors and large blowers used in refineries and gas fields.
Chemical Industry: Monitoring critical pumps, compressors, and fans in various chemical production facilities.
Metallurgy and Steel: Monitoring heavy-duty rolling mills, large fans, and gearbox equipment in steel mills.
