The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Frequently Asked Questions

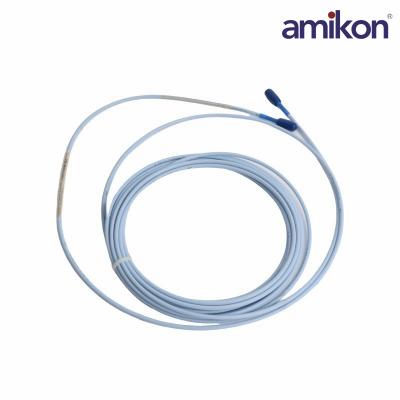

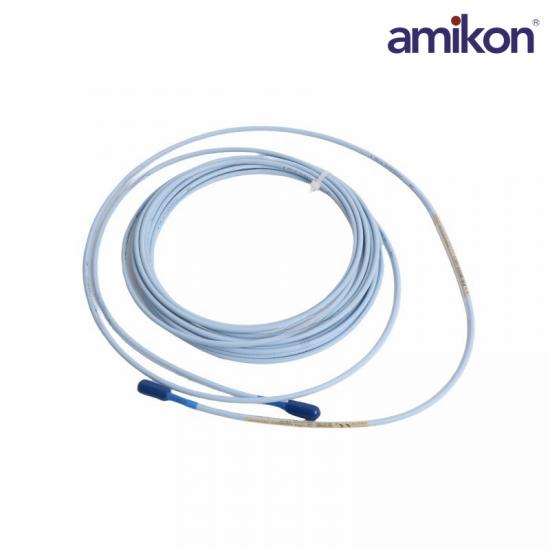

Q1: What is the Bently Nevada 330130-070-03-CN?

A1: It is a 3300 XL extension cable used to connect proximity probes to monitoring systems, ensuring reliable signal transmission in vibration monitoring applications.

Q2: What does the “330130” designation indicate?

A2: “330130” identifies the cable as part of the 3300 XL series extension cables designed for use with compatible proximity probe systems.

Q3: What does the “070” option represent?

A3: “070” specifies a cable length of 7.0 meters (approximately 22.9 feet).

Q4: What does the “03” option indicate?

A4: “03” denotes an armored cable with a connector protector, providing enhanced mechanical protection and durability.

Q5: What does the “CN” designation mean?

A5: “CN” indicates China regional certification, ensuring compliance with local standards.

Product Applications

Power industry: mainly used to monitor the operating status of steam turbines, water turbines, generators, and wind turbines.

Petroleum and Petrochemicals: Monitor core rotating equipment such as compressors, pumps, and air compressors in refineries and natural gas processing plants.

Metallurgy and Mining: Used for vibration monitoring of large blowers, conveying equipment, and industrial motors.

Manufacturing industry: especially in the machine tool industry and automobile manufacturing, used for state analysis of high-precision machinery
