Description：

The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Specification：

Frequently asked questions

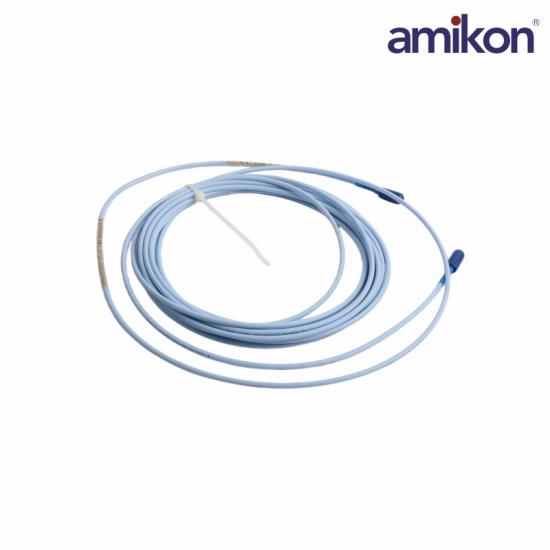

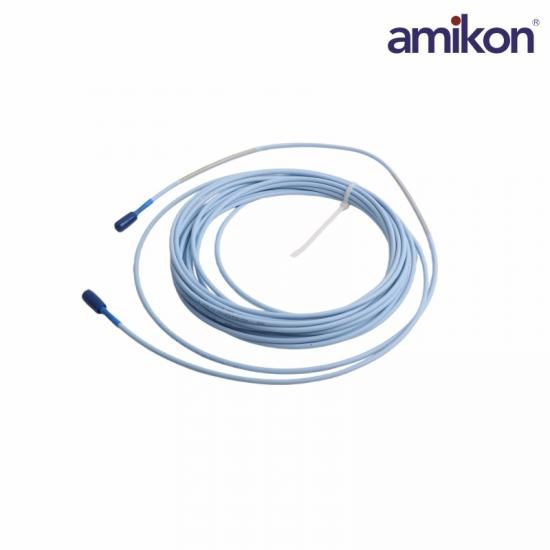

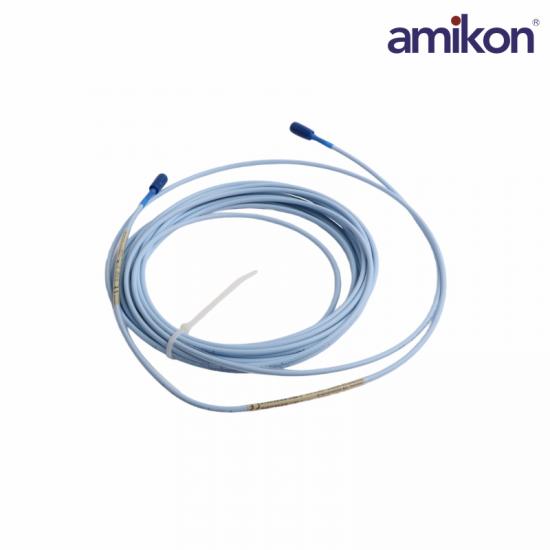

Q1: What is the Bently Nevada 330130-070-11-05 Extension Cable?

A1: It is an industrial extension cable used in Bently Nevada proximity probe systems to transmit signals between the probe and monitoring equipment.

Q2: What is the 330130-070-11-05 cable length of this model?

A2: The 330130-070-11-05 cable length option “070” corresponds to 7.0 meters (22.9 feet).

Q3: What is the 330130-070-11-05 capacitance specification?

A3: The 330130-070-11-05 cable capacitance is 69.9 pF/m (21.3 pF/ft).

Q4: What is the 330130-070-11-05 output resistance?

A4: The 330130-070-11-05 output resistance is 50 Ω.

Product Applications

Power Industry: Monitoring the operating status of steam turbines, water turbines, and generators.

Oil & Gas/Chemical Industry: Safety monitoring of centrifugal blowers, compressors, and gearboxes; its armored FluidLoc option effectively prevents leakage of fluids such as turbine oil.

Metallurgical Industry: Condition analysis of heavy rotating machinery in high-temperature or harsh environments.

Automotive Manufacturing & Precision Machine Tools: High-precision vibration studies and distance measurements in high-speed rotating and reciprocating machinery.
