Bently Nevada 330130-075-00-05 3300 XL 7.5 m Standard Extension Cable

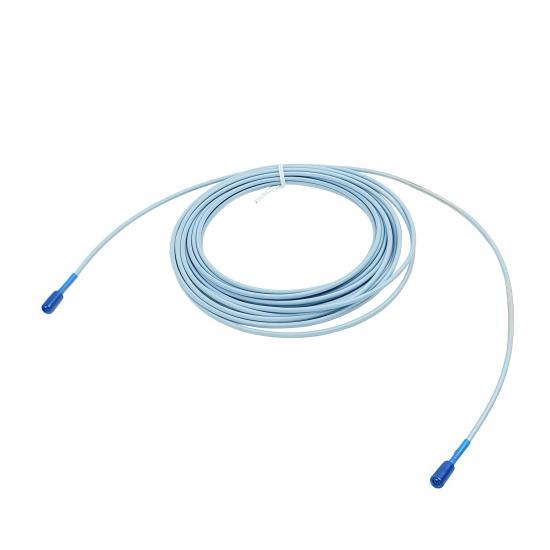

Bently Nevada 330130-075-00-05 3300 XL 7.5 m standard extension cable

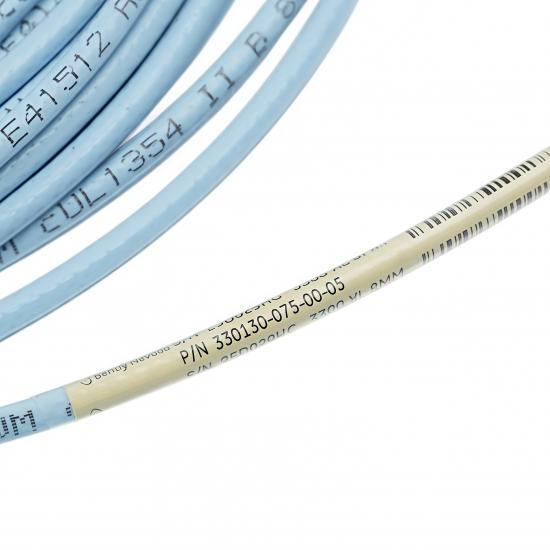

Bently Nevada 330130-075-00-05 3300 XL 7.5 m standard extension cable

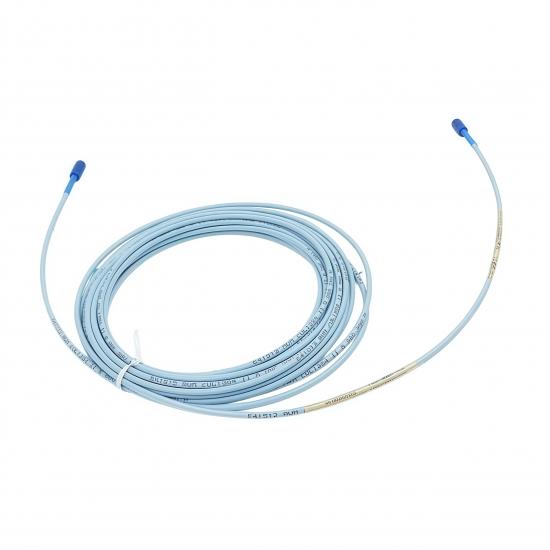

Bently Nevada 330130-075-00-05 3300 XL 7.5 m standard extension cable

Bently Nevada 330130-075-00-05 3300 XL 7.5 m Standard Extension Cable

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330130-075-00-05

7.5 m · Standard Cable · Option 00

PRODUCT TYPE3300 XL Extension Cable
CABLE LENGTH7.5 m (24.6 ft)
CABLE OPTIONStandard Cable (00)
CONNECTOR PROTECTIONNot Included (00)
CABLE CONSTRUCTION75 Ω Triaxial · FEP
AGENCY APPROVALCSA · ATEX · IECEx (05)

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330130-075-00-05

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

3300 XL 8 MM · STANDARD EXTENSION CABLE

330130-075-00-05

7.5 m Standard Extension Cable · Option 00

Bently Nevada 330130-075-00-05 is a 3300 XL 8 mm standard extension cable. Its exact ordering configuration specifies a 7.5 m (24.6 ft) FEP-insulated 75 Ω triaxial cable, connector/cable option 00 standard construction without an ordered connector protector, miniature ClickLoc terminations, and agency option 05 for CSA, ATEX and IECEx approvals.

Model330130-075-00-05
Product TypeExtension Cable
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330130-075-00-05 and required quantity.

330130-075-00-05

Technical Specifications

Official Bently Nevada ordering, cable, construction and installation data for exact system matching.

01
Product IdentityExact extension-cable family and system role
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330130-075-00-05
Product function3300 XL standard extension cable
Transducer family3300 XL 8 mm Proximity Transducer System
System roleConnects a compatible proximity probe to the matched Proximitor Sensor
02
Cable & Termination7.5 m ClickLoc extension cable with standard FEP-insulated construction
Ordered cable length7.5 m (24.6 ft)
Cable type75 Ω triaxial, FEP insulated
Connector endsMiniature male and female coaxial ClickLoc connectors
Connector materialGold-plated brass or gold-plated beryllium copper
Option 00Standard cable without an ordered connector protector
ClickLoc tighteningFinger-tight until the connectors click
03
ConstructionManufacturer-published electrical and dimensional data
Cable insulationFEP-insulated 75 Ω triaxial cable
Connector protectorNot included with option 00; available separately
Maximum cable diameter3.7 mm (0.15 in)
Maximum cable outside diameter3.68 mm (0.145 in)
Minimum cable bend radius25.4 mm (1.0 in)
Nominal core resistance1.65 ± 0.25 Ω at 7.5 m
Nominal jacket resistance0.49 ± 0.10 Ω at 7.5 m
Typical capacitance69.9 pF/m (21.3 pF/ft)
04
Ordering & InstallationDecoded ordering fields and installation checks
Ordering structure330130-AAA-BB-CC
Code 075 (AAA)7.5 m (24.6 ft) cable length
Code 00 (BB)Standard cable without an ordered connector protector
Agency code 05 (CC)CSA, ATEX and IECEx approvals
System-length ruleProbe length plus extension cable length must equal the Proximitor Sensor system length
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
Cable length tolerance+20%, -0%

330130-075-00-05 PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, exact order-code, ClickLoc connection, installation and replacement checks for this extension cable.

01

Which system uses the 330130-075-00-05 extension cable?

It is a standard 3300 XL extension cable for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. Confirm that the selected probe, extension cable and Proximitor Sensor belong to a compatible calibrated system.

02

What does cable-length code 075 specify?

Code 075 specifies a 7.5 m (24.6 ft) extension cable. Baker Hughes lists the extension-cable length tolerance as +20%, -0%.

03

What does connector and cable option 00 specify?

Option 00 specifies the standard FEP-insulated 75 Ω triaxial extension cable without an ordered connector protector.

04

What does the final agency code 05 mean?

Agency code 05 denotes the CSA, ATEX and IECEx approvals version for this ordered configuration.

05

How is the correct calibrated system length selected?

Add the probe length to the 7.5 m extension-cable length. Their total must equal the system length of the matched 3300 XL Proximitor Sensor.

06

How should the ClickLoc connectors be installed?

Join compatible 3300 XL ClickLoc connectors finger-tight until they click. Keep the connection clean, maintain the 25.4 mm minimum bend radius and do not exceed the 0.565 N·m connector torque limit.

07

What must be confirmed before replacing 330130-075-00-05?

Match the complete part number, 7.5 m length, standard cable option 00 without an ordered connector protector, FEP-insulated 75 Ω triaxial construction, agency option 05 approval status and the required probe-plus-extension system length.
