Part Number: 330130-080-12-00

Manufacturer: Bently Nevada

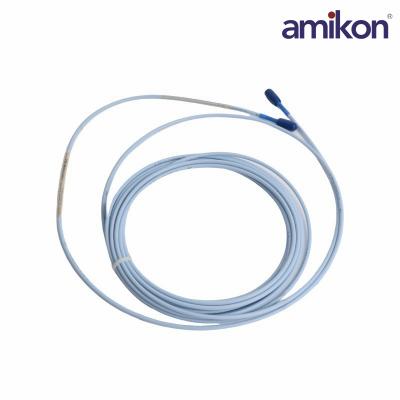

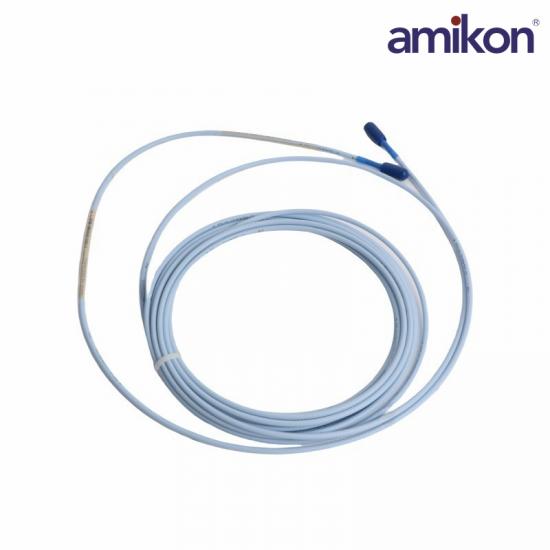

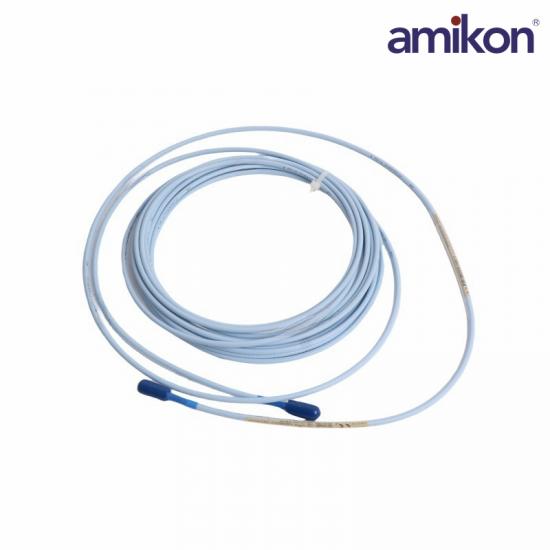

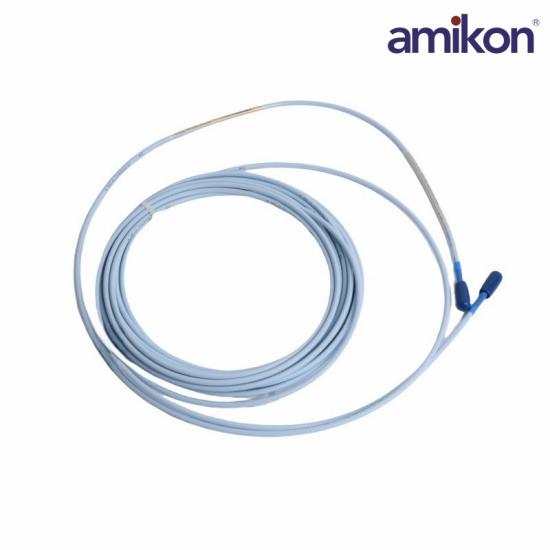

Product Type : 3300 XL Extension Cable

Made in U.S.A

Can add on Certificate Of Origin (COO)

Cable Length Option : 080 = 8.0 metres (26.2 feet)

Connector Protector and Cable Option : 12 = FluidLoc® cable with connector protectors

Agency Approval Option : 00 = Not required

Weight : 0.034 Kg

Shipping Weight : 1 Kg

The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
