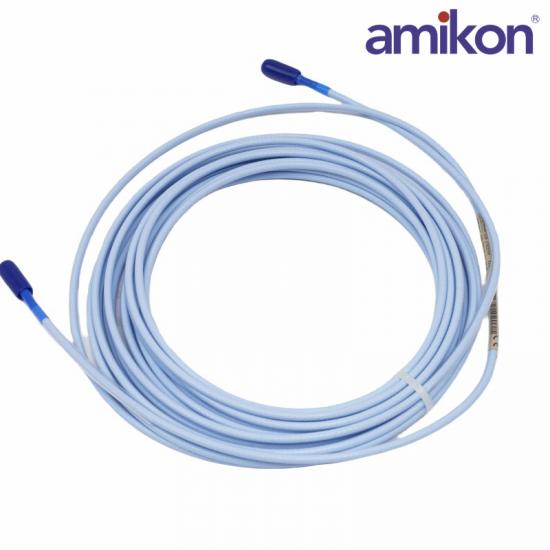

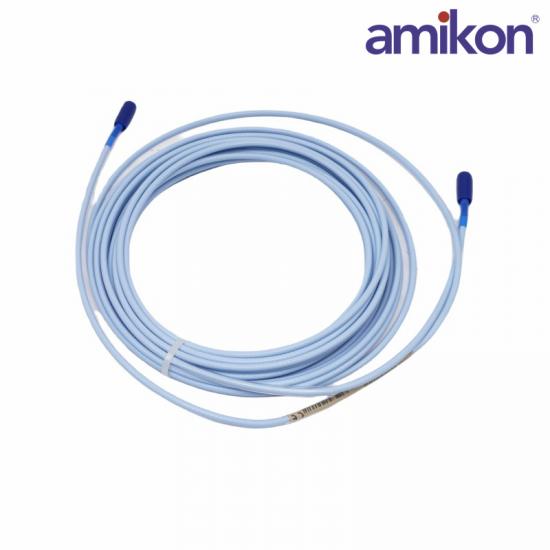

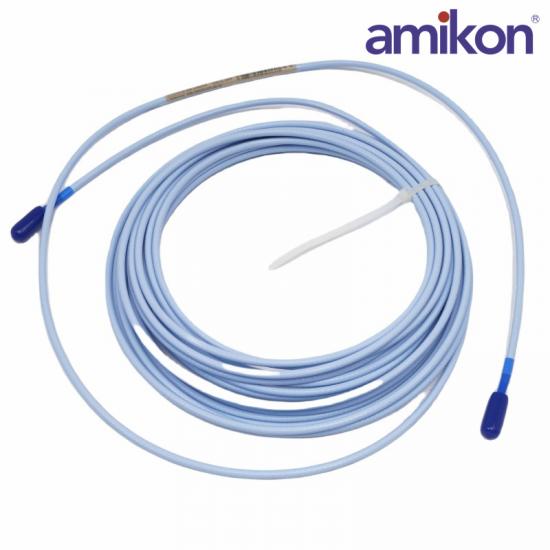

The Bently Nevada 330130-090-10-00 is part of the 3300XL 8 mm Proximity Probe series, designed for precision monitoring of vibration and position in rotating machinery. This probe is typically used in conjunction with a Proximitor Sensor to form a complete proximity transducer system, providing accurate, non-contact measurement of the distance between the probe tip and the surface of a rotating shaft or other metallic target.

The 330130-090-10-00  3300XL 8 mm Proximity Probe series is widely used in critical industrial applications, such as turbines, compressors, and motors, for condition monitoring and predictive maintenance.

330130-090-10-00 Diameter: 8 mm.Standard size for most industrial vibration and displacement monitoring needs.

330130-090-10-00 Length: 9 meters (30 feet).

Suitable for installations where longer distances between the probe and the measurement system are required.

Linear Range: 2 mm (80 mils).

Sensitivity: 7.87 mV/µm (200 mV/mil).

330130-090-10-00 Frequency Range: Up to 10 kHz.

Ensures effective detection of high-frequency vibration signals, making it suitable for machinery that operates at high speeds.

Temperature Range: -35°C to +177°C (-31°F to +350°F).

Power Supply Voltage: Operates on 18 to 30 V DC.

Output Signal: Delivers a linear voltage output that corresponds to the gap between the probe tip and the metallic target, ensuring accurate measurements.

Proximitor Sensor Compatibility: Must be used with a Bently Nevada Proximitor Sensor to complete the proximity transducer system.

The 330130-090-10-00  probe is compatible with various mounting brackets and clamps, allowing easy integration into existing machinery.
