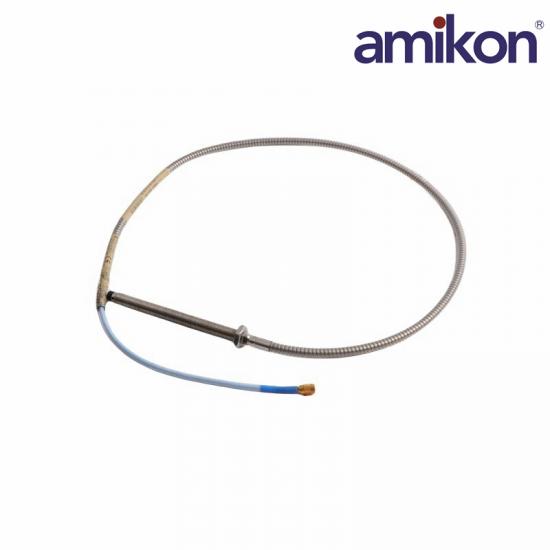

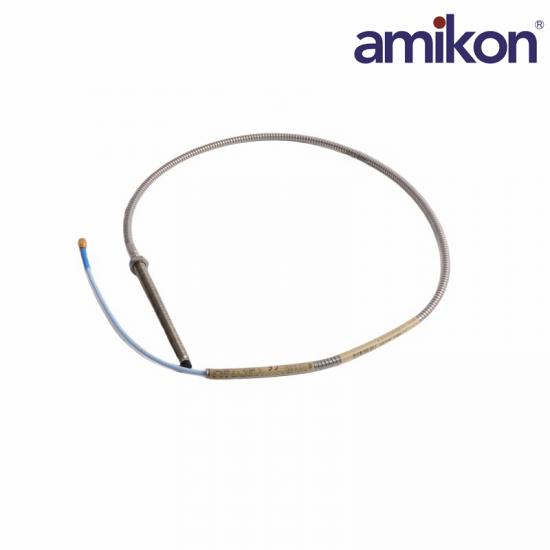

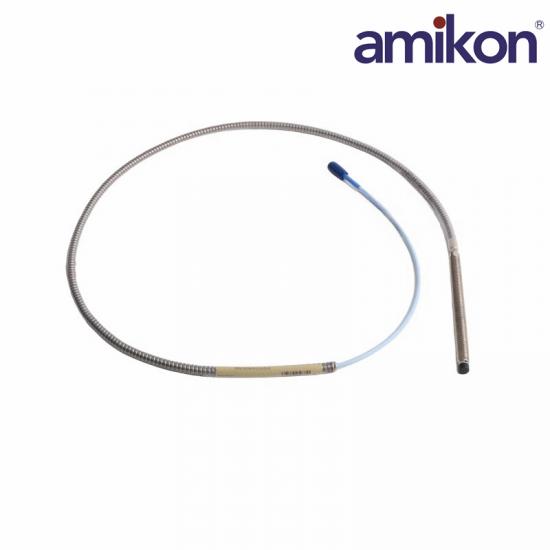

Bently Nevada 330162-03-45-45-45-05-05-94-01-02 Dual Triaxial HP Feedthrough

330162-03-45-45-45-05-05-94-01-02
330162-03-45-45-45-05-05-94-01-02
330162-03-45-45-45-05-05-94-01-02

Bently Nevada 330162-03-45-45-45-05-05-94-01-02 Dual Triaxial HP Feedthrough

✉  INQUIRE NOW

BENTLY NEVADA · 3300 System High-Pressure Feedthrough

330162-03-45-45-45-05-05-94-01-02

Dual Triaxial High-Pressure Feedthrough

MANUFACTURERBently Nevada
MODEL330162-03-45-45-45-05-05-94-01-02
PART NUMBER330162-03-45-45-45-05-05-94-01-02
PRODUCT TYPEDual Triaxial High-Pressure Feedthrough
SYSTEM FAMILY3300 System High-Pressure Feedthrough
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330162-03-45-45-45-05-05-94-01-02

  • Product Origin:

    USA

  • Lead Time:

    Contact for availability

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    Contact for availability

  • Condition:

    Condition confirmed with quotation

  • Certificate:

    Documentation on request
Inquire Now

Bently Nevada 3300 System High-Pressure Feedthrough

330162-03-45-45-45-05-05-94-01-02

Price and Availability Inquiry

The Bently Nevada 330162-03-45-45-45-05-05-94-01-02 is a dual triaxial high-pressure feedthrough for routing two probe cables through a pressurized machine case. Published ratings include 2.76 MPa (400 psi) maximum pressure.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330162-03-45-45-45-05-05-94-01-02 and required quantity in your inquiry.

Bently Nevada 330162-03-45-45-45-05-05-94-01-02

Technical Specifications

Official Baker Hughes product, pressure, environmental and connector data for the submitted 330162 configuration.

01Product IdentityOfficial feedthrough family data
ManufacturerBently Nevada
Part number330162-03-45-45-45-05-05-94-01-02
Product designationDual Triaxial HP Feedthrough
Product family3300 System
02Performance DataPublished operating limits
Maximum pressure2.76 MPa (400 psi)
Temperature with option 94-26 to +121 °C
Humidity100% non-condensing
Minimum bend radius25.4 mm (1.00 in)
03Configuration DataPublished option meanings
Armor code03 — High-pressure end
O-ring code94 — Fluorocarbon
HP connector01 — Female miniature coaxial
LP connector02 — Male miniature coaxial
04Construction DataPublished mechanical design
Feedthrough circuits2
Fitting material303 stainless steel
Connector typeClickLoc
Connector materialGold-plated brass

Bently Nevada 330162-03-45-45-45-05-05-94-01-02 Product Support

Frequently Asked Questions

Practical configuration, application, pressure performance, installation, commissioning, migration and ordering guidance for 330162-03-45-45-45-05-05-94-01-02.

01

What is the application of the 330162 feedthrough family?

It routes two 3300-system probe cables through a pressurized machine case using a dual triaxial high-pressure feedthrough assembly.

02

Which submitted configuration options can be decoded directly?

Option 03 specifies armor at the high-pressure end, 94 specifies a fluorocarbon O-ring, 01 identifies a female miniature coaxial high-pressure connector and 02 identifies a male miniature coaxial low-pressure connector.

03

Which pressure and temperature limits apply?

The standard published maximum pressure is 2.76 MPa (400 psi). With fluorocarbon O-ring option 94, the published temperature range is -26 to +121 °C; modified assemblies require separate confirmation.

04

What should be checked during installation?

Verify process-fluid compatibility, pressure, fitting condition, sealing surfaces and the fluorocarbon O-ring. Maintain the published 25.4 mm minimum bend radius and protect both triaxial cable paths.

05

How should the two signal channels be commissioned?

After installation, perform the approved site leak or pressure check, confirm both connector pairs are fully seated, and verify each probe channel response before operation.

06

What must be reviewed before migrating or replacing the assembly?

Match the machine-case penetration, published dimensions, connector arrangement, armor, O-ring material and process conditions. The extra length field in the submitted identity must be verified from the nameplate or order record.

07

Which ordering data should accompany an inquiry?

Provide the complete part number, nameplate and drawing, process pressure and fluid, operating temperature, required dimensions, connector arrangement, quantity and delivery country.
