Description：

The 3300 5 mm Proximity Transducer System consists of:

a 3300 5 mm probe 1,2

a 3300 XL extension cable (ref 141194-01)

a 3300 XL Proximitor Sensor 3,4,5 (ref 141194-01)

When combined with a 3300 XL Proximitor Sensor and XLextension cable, the system provides an output voltage thatis directly proportional to the distance between the probe tipand the observed conductive surface. The system canmeasure both static (position) and dynamic (vibration) data.Its primary use is in vibration and position measurementapplications on fluid-film bearing machines, as well asKeyphasor measurement and speed measurementapplications6.

The system provides an accurate, stable signal output over awide temperature range. All 3300 XL Proximity TransducerSystems achieve this level of performance with completeinterchangeability of probe, extension cable, and Proximitorsensor, eliminating the need for individual componentmatching or bench calibration.

Specification：

Frequently asked questions

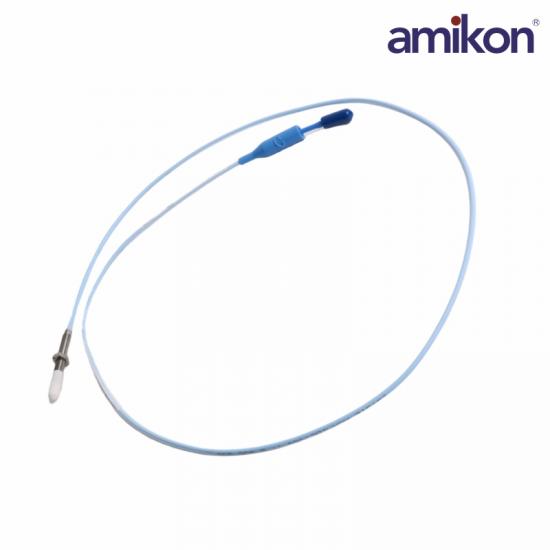

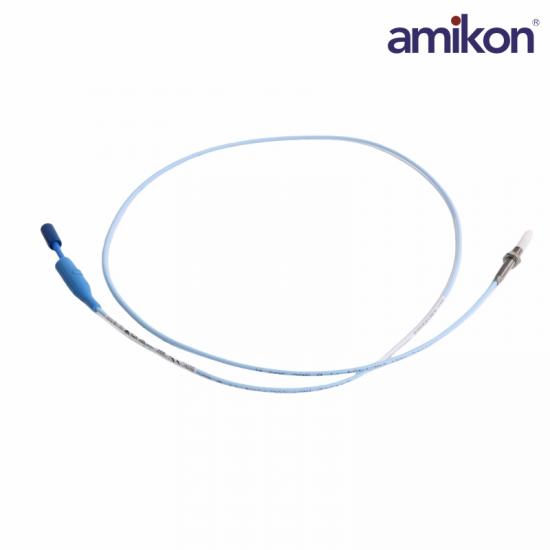

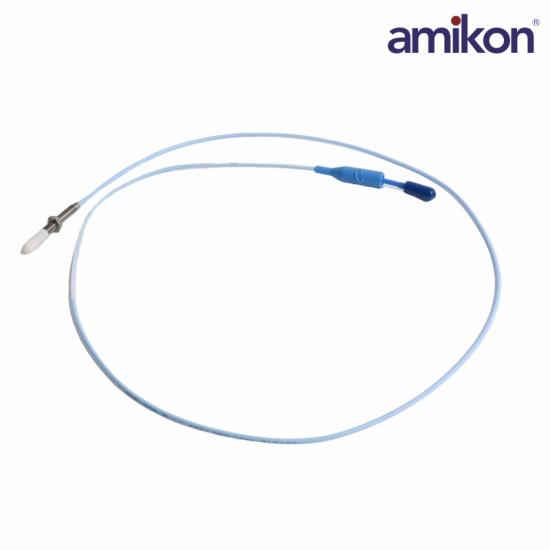

Q1: What is the Bently Nevada 330171-00-08-10-02-05 Proximity Probe?

A1: It is a 3300 series 5 mm proximity probe used for non-contact vibration and shaft displacement monitoring in rotating machinery applications.

Q2: What is the 330171-00-08-10-02-05 unthreaded length of this probe?

A2: The 330171-00-08-10-02-05 unthreaded length option “00” corresponds to 0.0 inches.

Q3: What is the 330171-00-08-10-02-05 overall case length?

A3: The 330171-00-08-10-02-05 overall case length option “08” corresponds to 0.8 inches.

Q4: What is the 330171-00-08-10-02-05 total probe length?

A4: The 330171-00-08-10-02-05 total probe length option “10” indicates a length of 1.0 metre (3.3 feet).

Q5: What is the main function of this proximity probe?

A5: Its main function is to provide accurate non-contact measurement of shaft vibration and displacement in industrial rotating equipment.

Product Applications

Oil and Gas : Large compressors, industrial fans, centrifugal pumps.

Power Plants: Steam turbines, water turbines, gas turbines, generator sets.

Iron, Metallurgy, Mining: Blast furnace blowers, large rolling mills, heavy ore dressing equipment.

Water Treatment and Papermaking: Large sewage pumps and high-speed paper machines.
