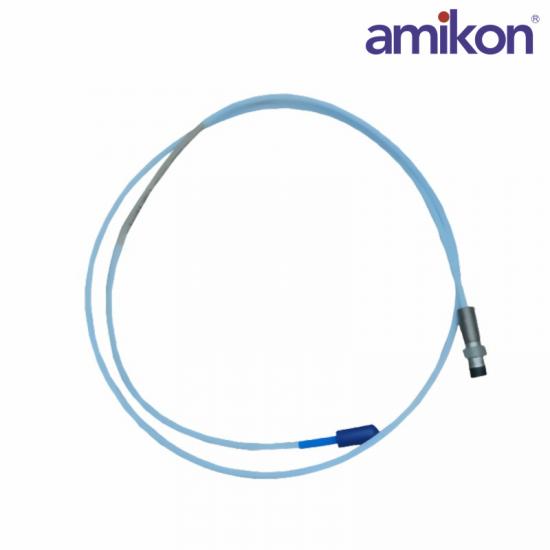

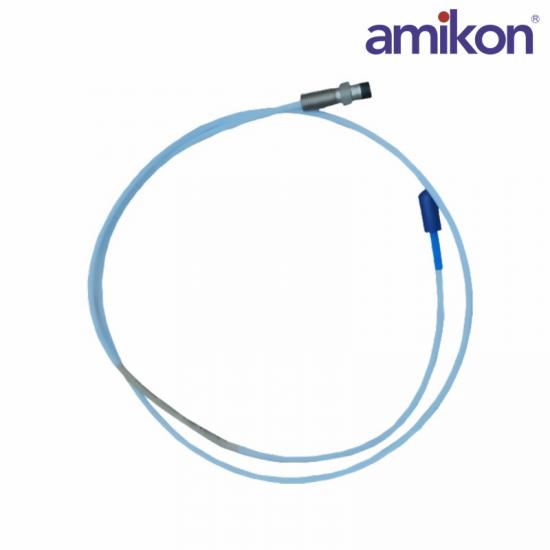

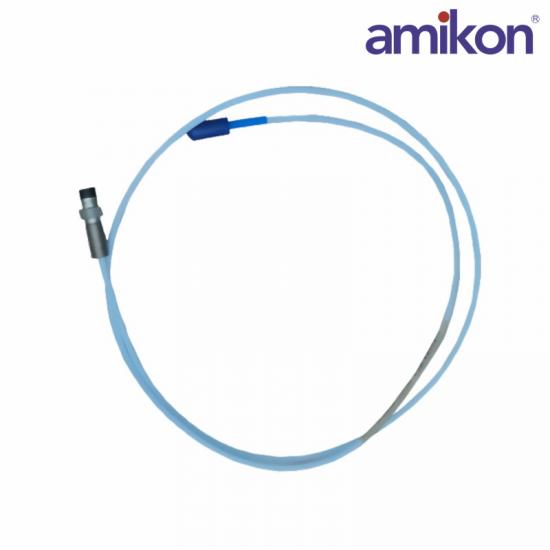

Bently Nevada 330171-00-28-10-02-05 Proximity Probe is part of the 3300 XL series of proximity transducers, designed for non-contact measurement of vibration and position in rotating machinery. This probe works as part of a complete system to monitor critical parameters like shaft displacement, vibration, and position in turbines, compressors, motors, and other industrial equipment.

The 330171-00-28-10-02-05 Proximity Probe is a key component of a proximity sensing system, providing precise measurements of a machine’s proximity to a rotating part such as a shaft or rotor. The probe is typically used in vibration monitoring systems, providing early warning of potential mechanical issues, allowing maintenance before catastrophic failure.

330171-00-28-10-02-05 Probe Series: 3300 XL

Probe Tip Diameter: 8 mm

Probe Length (Overall): 28 inches (711 mm)

Thread Size: 3/8-24 UNF (Unified Fine Thread)

Thread type for mounting in standard machinery.

Case Material: Stainless steel probe body for durability in harsh environments.

System Length: 10 feet (3 meters)

This includes the probe length combined with the extension cable length for a total system length of 10 feet.

Cable Length: Extension cable length is 2 meters (6.6 feet)

Used to connect the probe to the proximitor sensor.

330171-00-28-10-02-05 Equipped with a click-on connector for secure attachment to the proximitor and extension cables.

330171-00-28-10-02-05 Designed for a linear range of 80 mils (2 mm), which is the range over which the probe can accurately measure proximity and vibration.

330171-00-28-10-02-05 Typically ranges from 0 Hz (DC) to 10 kHz, suitable for high-speed rotating machinery.

330171-00-28-10-02-05：-35°C to +177°C (-31°F to +351°F),

330171-00-28-10-02-05 Nominally 200 mV/mil (7.87 mV/µm), where the proximity sensor outputs voltage in proportion to the distance between the probe tip and the target.

330171-00-28-10-02-05 Gap range from the probe tip to the measured surface is typically 0.25 mm to 2.03 mm (10 mils to 80 mils).

330171-00-28-10-02-05 Proximity Probe: Measures the distance between the rotating component and the probe tip.
