Model Number: 330180-10-05

Series: 3300 XL

Function: Proximitor® Sensor (signal conditioning unit)

System Length: 10 meters (probe + extension cable)

Input Compatibility: Works with 5 mm or 8 mm 3300 XL probes

Sensitivity: 7.87 mV/μm (200 mV/mil)

Linear Range: 2 mm (80 mils)

Target Material Calibration: 4140 steel

Power Supply: -24 VDC (provided by monitoring system)

Output Signal: Analog voltage, proportional to gap (displacement)

Mounting Style: DIN rail mount or panel mount

Operating Temperature Range: -35°C to +65°C

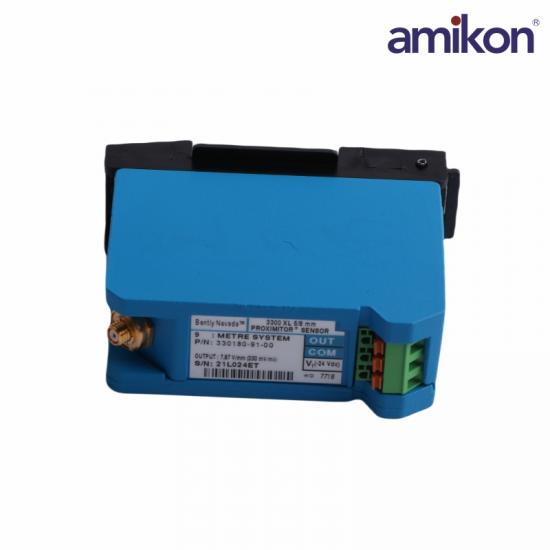

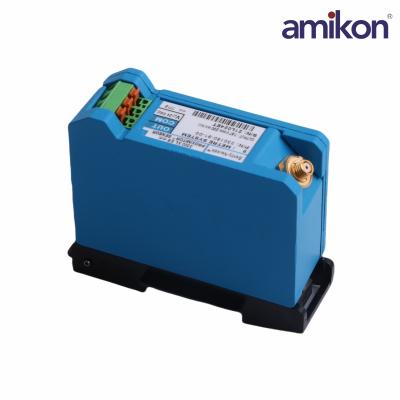

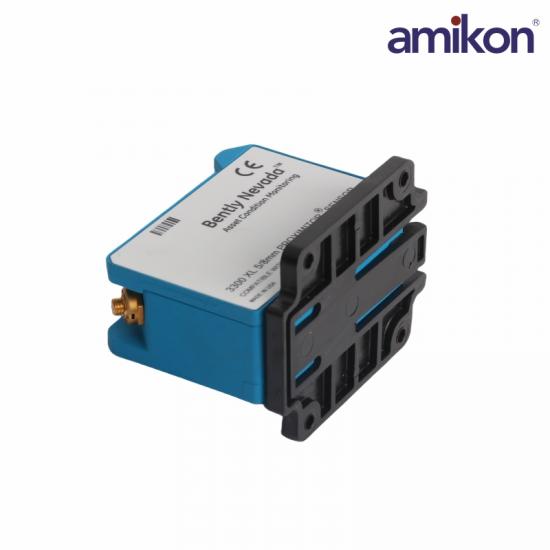

The Bently Nevada 330180-10-05 is a 3300 XL Proximitor® Sensor, an integral component of the Bently Nevada proximity transducer system designed for non-contact vibration and position measurement of rotating machinery. This sensor is used in conjunction with matching 3300 XL proximity probes and extension cables to provide precise and reliable displacement measurements for critical machinery monitoring and protection.

As part of the widely trusted 3300 XL series, this proximitor sensor offers superior performance, rugged construction, and long-term stability, even in extreme industrial environments. It features advanced signal conditioning and diagnostics, ensuring accurate and linear output over a wide range of operating conditions.

The 330180-10-05 model comes factory configured with a 10-meter system length and is calibrated for use with standard 5 mm or 8 mm probes targeting 4140 steel. This sensor meets or exceeds the requirements of API 670, the global standard for machinery protection systems.
