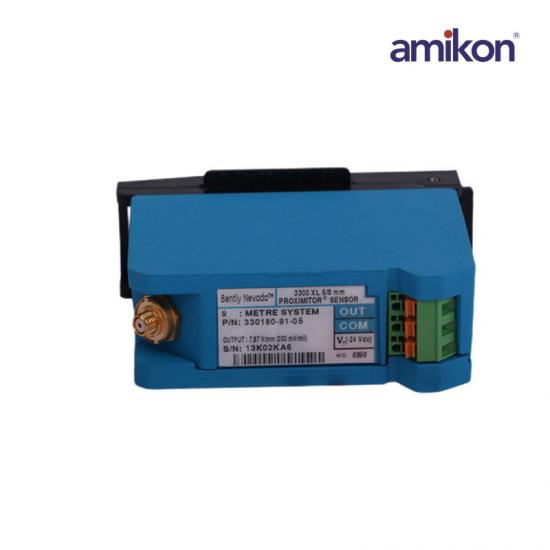

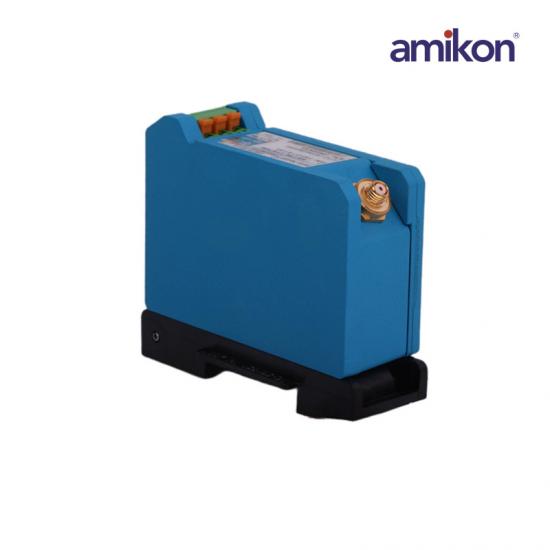

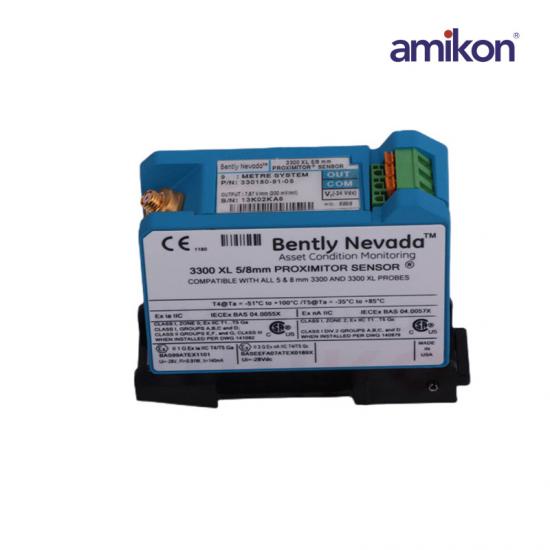

The 330180-91-05 is 3300 XL Proximitor Sensor.The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs.

Dimensions ：

8.8x3.6x7.1cm

Weight：

0.2kg

Power Consumption：

7.02 watts typical

Humidity：

95%, noncondensing

Storage Temperature  ：

-40°C to +127°C

Operating Temperature：

-0°C to +45°C

The 330180-91-05 is 3300 XL Proximitor Sensor.

The 3300 XL 8 mm Proximity Transducer System consists of:

 One 3300 XL 8 mm probe,

 One 3300 XL extension cable1,

 One 3300 XL Proximitor* Sensor2.

The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements3.
