Description：

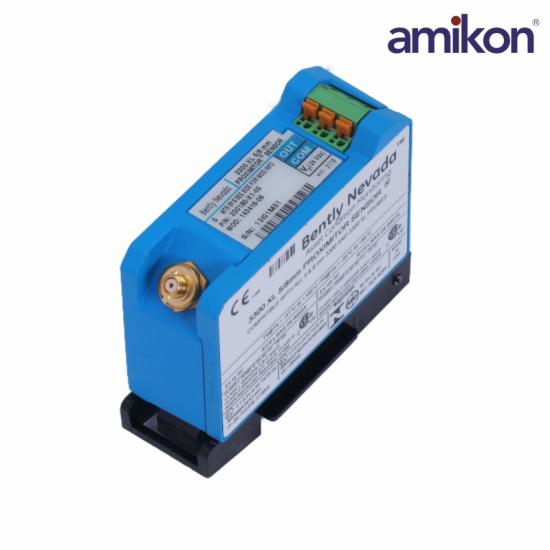

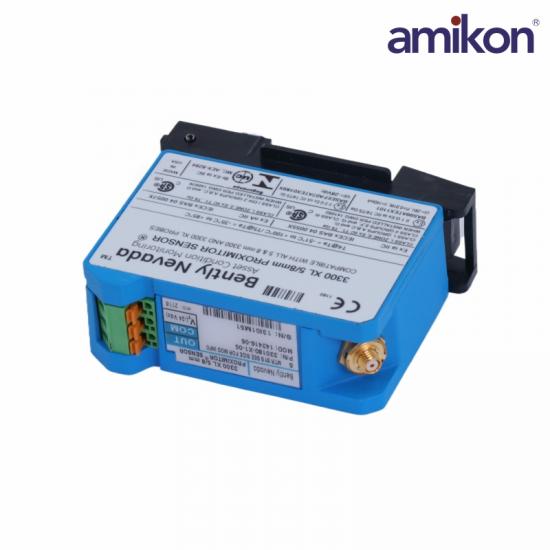

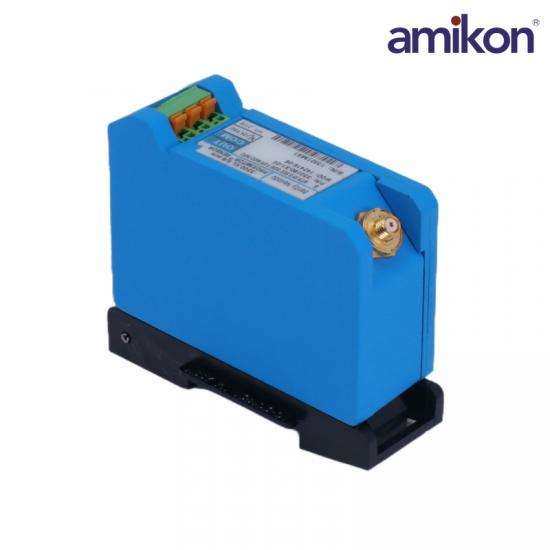

The BENTLY NEVADA 330180-X1-05 MOD: 145004-09 3300 XL Proximitor Sensor is an essential component within the 3300 XL proximity measurement system. It receives signals from the connected proximity probe through an extension cable and processes the eddy current measurement data to determine the distance between the probe tip and the machine shaft surface.

The 330180-X1-05 MOD: 145004-09 model features an X1 configuration with DIN-rail mounting capability and supports a 9.0 m (29.5 ft) total system length. This configuration allows the sensor to operate as part of a complete 3300 XL proximity transducer system, consisting of a compatible probe, extension cable, and Proximitor Sensor.

Specification：

Frequently asked questions

Q1: What does "MOD:145004-09" mean?

It means the sensor is factory-calibrated for ASTM A276 Type 410 Stainless Steel targets. Standard models only read AISI 4140 carbon steel. Using a standard sensor on a 410 stainless shaft causes severe measurement errors.

Q2: Can I use this 5.0m sensor with a 9.0m probe or cable?

No. The -05 suffix locks the internal tuning to a 5.0-meter total loop length. You must use a matching 5.0m probe and cable combination (e.g., 1.0m probe + 4.0m cable) to prevent scale factor distortion.

Q3: Does the "X1" option require external mounting insulation?

No. The X1 housing has a built-in, electrically isolated 35mm DIN rail clip. It snaps directly onto standard metallic rails without risking electrical ground loops.

Q4: Why is my sensor's linear range compressed during testing?

Check your input voltage. The system requires a stable -23.5 Vdc to -24 Vdc supply. If the voltage drops closer to -18 Vdc, the sensor stays on but its linear tracking window contracts.

Product Applications

Power generation plants : Monitoring the shaft conditions of large steam turbine generator sets, gas turbines, feedwater pumps, and forced draft fans to prevent catastrophic accidents caused by bearing wear.

Oil and gas refineries : Used for anti-surge and mechanical protection of core moving equipment such as high-pressure centrifugal compressors and catalytic cracking units (three-unit system).

Large chemical and petrochemical plants : Monitoring reciprocating or centrifugal pumps in critical sections to ensure that the unit will not unexpectedly shut down due to excessive vibration under continuous high-load conditions.

Heavy metallurgical and steel plants: Applied to blast furnace blowers, large rolling mill motor bearings, and oxygen generator compressor units.

Mining and large cement plants: Used for bearing monitoring in large ball mills, crushers, and long-distance conveyor drive systems.
