Description：

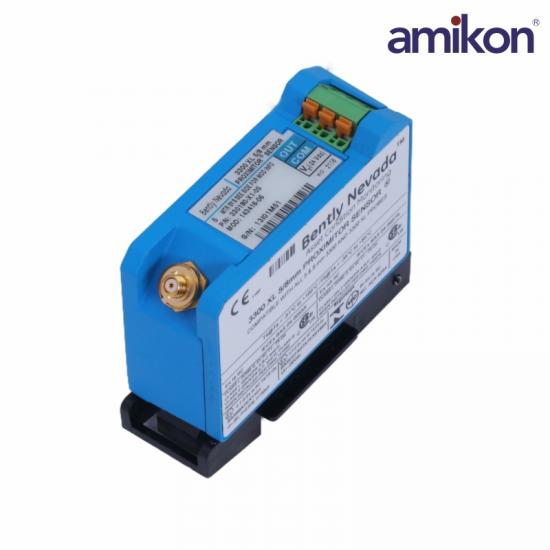

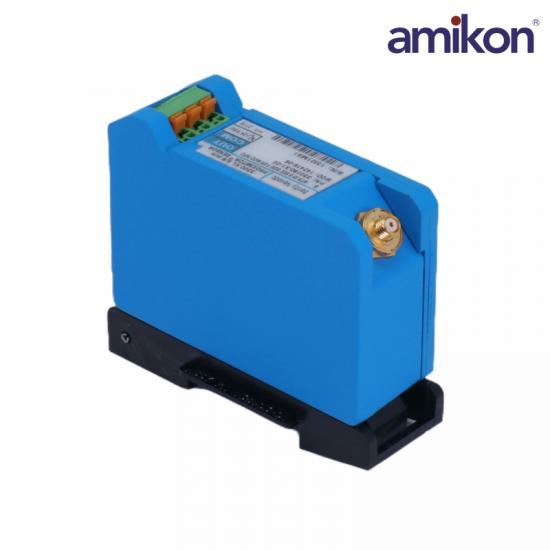

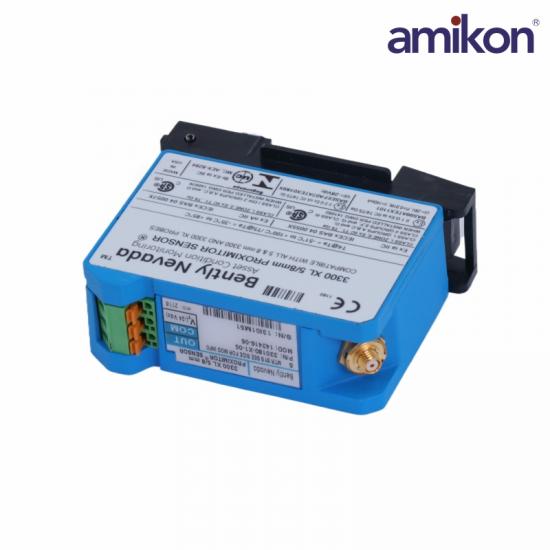

The 330180-X1-05 MOD 145004-10 is a highly specific configuration of the Bently Nevada 3300 XL 5/8mm Proximitor Sensor. It acts as a crucial component in industrial condition monitoring systems, interpreting electrical signals from proximity probes to measure shaft vibration and position.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330180-X1-05 MOD 145004-10 Proximitor Sensor used for?

A1: It is used for non-contact vibration and shaft position monitoring in rotating machinery protection systems.

Q2: What is the 330180-X1-05 MOD 145004-10 output resistance of the sensor?

A2: The 330180-X1-05 MOD 145004-10 output resistance is 50 Ω.

Q3: What is the 330180-X1-05 MOD 145004-10 recommended gap setting?

A3: The 330180-X1-05 MOD 145004-10 recommended gap setting is -9 Vdc.

Q4: What is the 330180-X1-05 MOD 145004-10 extension cable capacitance?

A4: The 330180-X1-05 MOD 145004-10 extension cable capacitance is 69.9 pF/m (21.3 pF/ft).

Q5: What field wiring sizes are supported?

A5: The 330180-X1-05 MOD 145004-10 sensor supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG).

Product Applications

Power Generation Plants: Steam turbines, gas turbines, high-power generators, boiler feed pumps, forced draft fans.

Oil & Gas / Petrochemical Refineries: Centrifugal compressors, reciprocating compressors, hydrocracking pumps, liquefied natural gas (LNG) cryogenic pumps.

Steel & Metallurgical Mills: Blast furnace blowers, large exhaust fans, rolling mill main drive shafts, high-pressure water descaling pumps.

Chemical & Fertilizer Plants: Ammonia synthesis compressors, urea high-pressure pumps, air separation units (air compressors).
