Description：

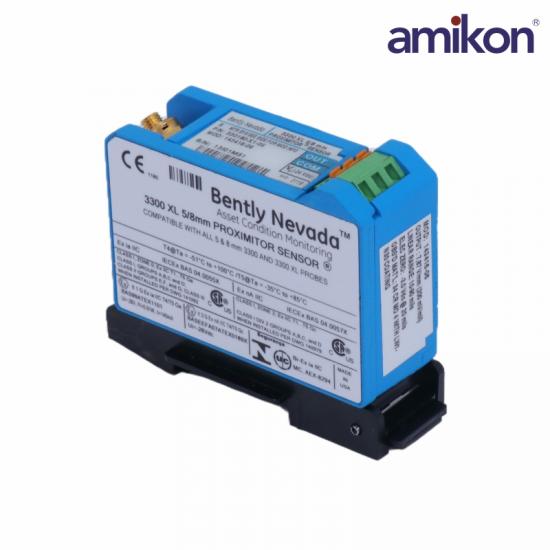

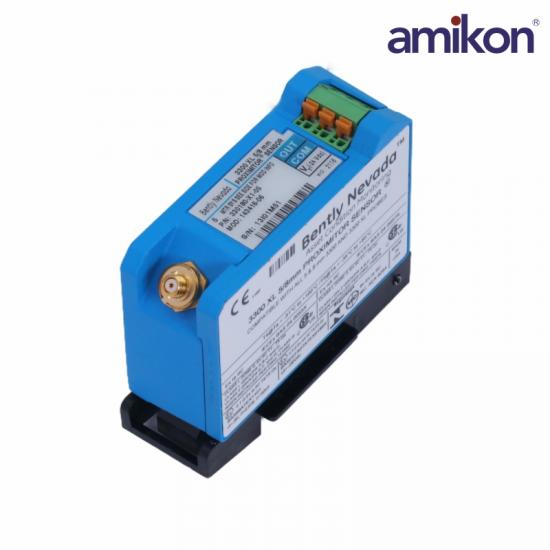

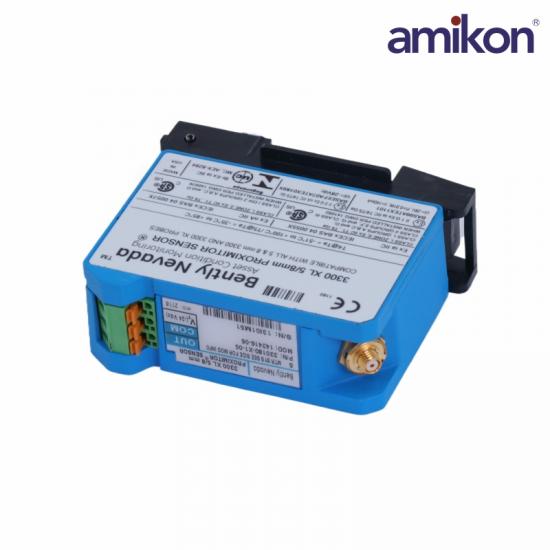

The Bently Nevada 330180-X1-05 MOD:145655-09 Proximitor Sensor is an important component of the 3300 XL 8 mm Proximity Transducer System, providing accurate signal conditioning and conversion for non-contact shaft measurement applications. Working together with compatible proximity probes and extension cables, the sensor converts probe gap variations into proportional voltage outputs that can be used for machinery protection, condition monitoring, and predictive maintenance programs.

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

Specification：

Frequently asked questions

Q1: What supply voltage is required for the Bently Nevada 145655-09 Proximitor Sensor?

A: The 145655-09 sensor operates with a supply voltage range of -17.5 Vdc to -26 Vdc, ensuring compatibility with Bently Nevada proximity transducer systems.

Q2: What is the signal output scale factor of the 145655-09 Proximitor Sensor?

A: The 145655-09 sensor provides a signal output of 7.87 V/mm (200 mV/mil), enabling accurate conversion of shaft displacement into a proportional electrical signal.

Q3: What is the 145655-09 operating temperature range of this Proximitor Sensor?

A: The 145655-09 is rated for operation from -51°C to +100°C (-60°F to +212°F), making it suitable for a wide range of industrial environments.

Q4: What applications is the 330180-X1-05 (145655-09) commonly used for?

A: It is commonly used for shaft vibration monitoring, radial displacement measurement, axial position monitoring, and machinery protection in turbines, compressors, motors, and pumps.

Product Applications

Power Industry: Thermal, nuclear, and gas turbine generator sets; large water supply pumps.

Petroleum and Chemical Industry: Large centrifugal compressors and critical process pumps for oil refining and natural gas infrastructure.

Metallurgy and Heavy Industry: Heavy-duty blast furnace drums for steelmaking; large air evaporators; gearboxes.
