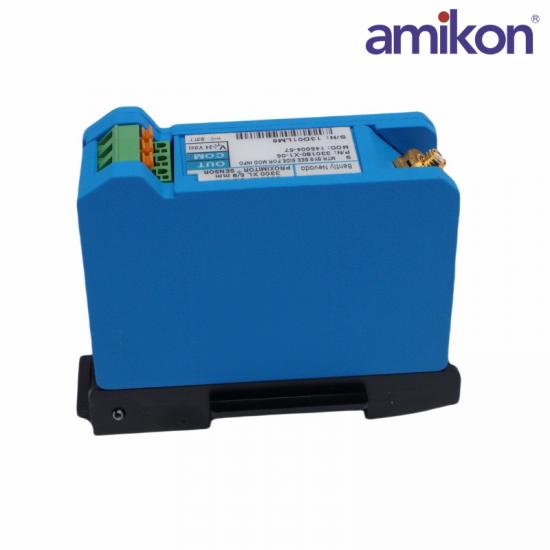

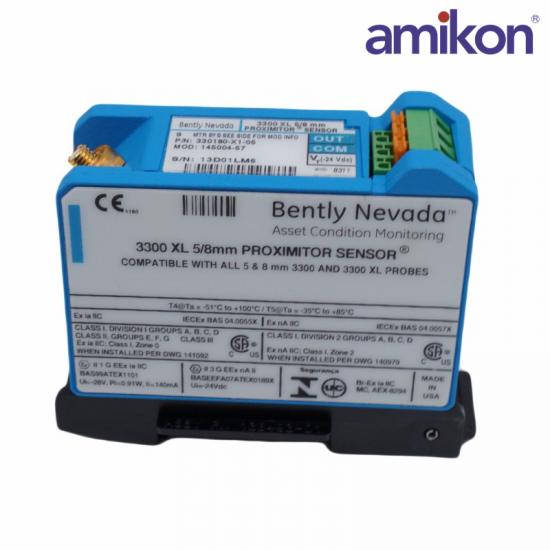

The Bently Nevada 330180-X1-05, Model 145193-01 is a 3300 XL Proximitor® Sensor that incorporates a number of improvements over previous Proximitor® Sensor designs. These improvements focus on mounting flexibility, electrical isolation, installation density, and enhanced resistance to radio-frequency and electromagnetic interference.

The physical packaging of the 3300 XL Proximitor® Sensor supports high-density DIN-rail installations. This mounting arrangement allows multiple sensors to be installed efficiently where available cabinet or panel space is limited.

In addition to DIN-rail mounting, the 330180-X1-05 Model 145193-01 can be installed using a traditional panel-mount configuration. In this configuration, the sensor uses an identical four-hole mounting footprint to older Proximitor® Sensor designs, supporting installations based on the previous mounting arrangement.

For both mounting configurations, the sensor's mounting base provides electrical isolation. This integrated isolation eliminates the need for separate isolator plates, reducing the number of additional components required during installation.

Frequently Asked Questions

Q : What exactly is the Bently Nevada 330180?

A: It is the 3300 XL 8mm Proximitor Sensor. It is an electronic conditioning unit that drives an eddy current probe to measure critical machine parameters like shaft vibration, axial position (thrust), and speed.

Q : What does "Model 145193-01" mean on my device's label?

A: 145193-01 is the internal manufacturing part/modification number. It represents the exact same physical piece of hardware as the catalog ordering number 330180.

Q : Is the 330180 compatible with 5mm proximity probes?

A: Yes. The 3300 XL 8mm Proximitor sensor is fully compatible and calibrated to work with both 3300 XL 5mm and 8mm probes.

Q : What is the standard power requirement for this Proximitor?

A: It requires a negative DC power supply, typically -24 Vdc (operational range is usually -18 Vdc to -26 Vdc), supplied by the monitoring rack.

Product Applications

Oil and Gas: Monitoring the operating status of drilling platforms, large compressors, and pumps.

Power Generation: Shaft vibration and displacement protection for steam turbines, water turbines, and gas turbines.

Petrochemicals: Monitoring various heavy-duty centrifugal compressors, fans, and agitators.

Iron and Steel Metallurgy: Monitoring the mechanical health of blast furnace blowers and rolling mill main drive systems.
