Bently Nevada 3300 XL 8 mm / 3300 5 mm Proximity Transducer Systems

330180-X2-00 MOD: 181634-27

Price and Availability Inquiry

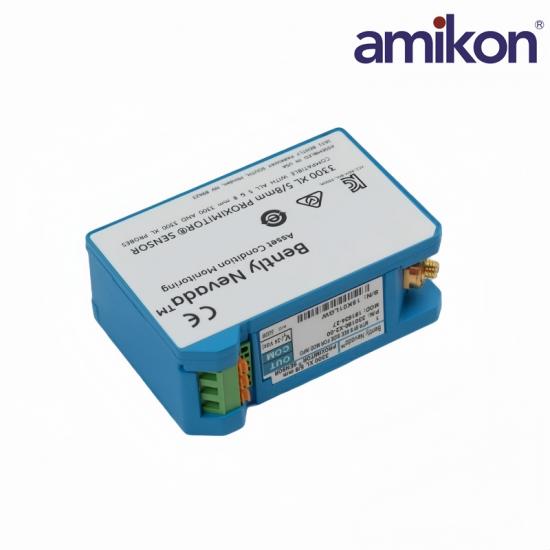

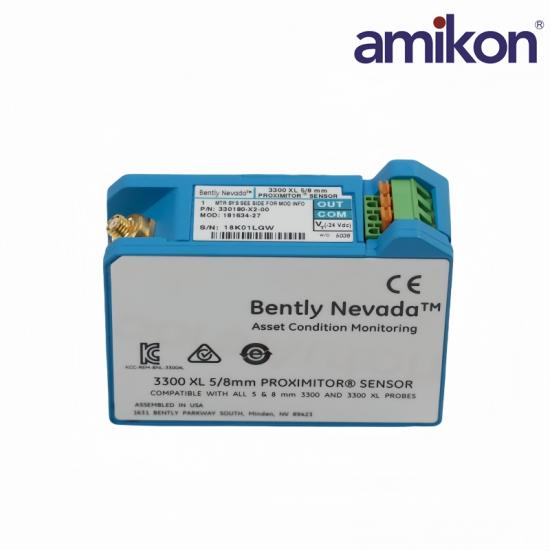

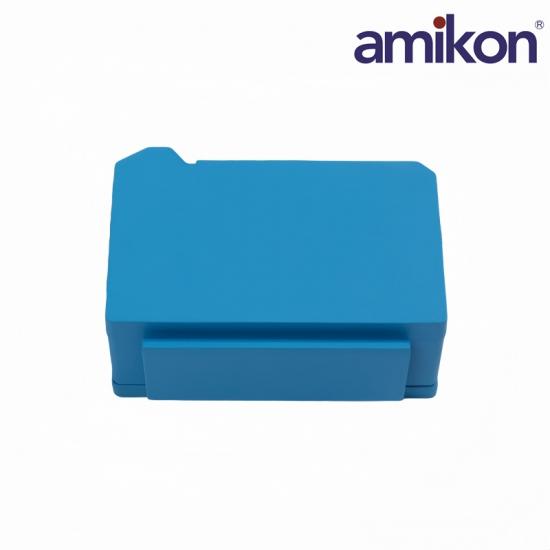

The Bently Nevada 330180-X2-00 MOD: 181634-27 is a modified 3300 XL Proximitor Sensor. The X2 configuration is outside the standard 10/11/12, 50/51/52 and 90/91/92 catalog options, so calibrated system length and mounting must be verified from the 181634-27 modification record and installed label.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330180-X2-00 MOD: 181634-27 and required quantity in your inquiry.

Bently Nevada 330180-X2-00 MOD: 181634-27

Technical Specifications

Official 3300 XL Proximitor electrical and environmental ratings with variant-specific controls for MOD 181634-27; undocumented X2 dimensions are not inferred.

01Product IdentityExact modified-unit identification

ManufacturerBently Nevada

Base product330180 Proximitor Sensor

Ordered variant330180-X2-00

Modification record181634-27

02Electrical DataPublished Proximitor ratings

Supply voltage−17.5 to −26 V DC

Maximum consumption12 mA

Barrier supply range−23 to −26 V DC

Output resistance50 Ω

03Interface & CompatibilityComplete-system matching

Minimum target size15.2 mm (0.6 in) diameter, flat target

Field wiring3-conductor shielded triad, 0.2–1.5 mm²

Maximum field wiring305 m (1,000 ft)

Shaft diameter50.8 mm (2 in) minimum; 76.2 mm (3 in) recommended

04Environmental & OrderingPublished limits and variant control

Operating temperature−52 to +100 °C

Storage temperature−52 to +105 °C

Agency option 00Approval not required

Relative humidity<3% ASF change at 93% RH for up to 56 days

Bently Nevada 330180-X2-00 MOD: 181634-27 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 330180-X2-00 MOD: 181634-27.

How should the complete modified identity be recorded?

Use the full designation 330180-X2-00 MOD: 181634-27. The MOD number distinguishes this unit from other 330180-X2-00 modifications and must remain on the quotation, order and replacement record.

Why is no standard 1 m, 5 m or 9 m mounting code assigned to X2?

The official standard catalog lists 10/11/12, 50/51/52 and 90/91/92 options. X2 is not one of those standard codes, so system length and mounting cannot be decoded without the 181634-27 modification record.

Which probe systems can the 3300 XL Proximitor accept?

The published 3300 XL sensor input accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe plus the matching extension cable.

How should calibration compatibility be checked before installation?

Match the probe, extension cable and Proximitor as a complete calibrated system, then verify the total system length, target material and any MOD 181634-27 requirements from the installed label or OEM drawing.

Which power and field-wiring data apply to the standard sensor platform?

The published platform requires −17.5 to −26 V DC at 12 mA maximum; use −23 to −26 V DC with barriers. Recommended field wiring is 3-conductor shielded triad, 0.2–1.5 mm², up to 305 m.

Which environmental limits should be used for cabinet planning?

The Proximitor Sensor operating range is −52 to +100 °C and the storage range is −52 to +105 °C. Confirm any tighter MOD-specific limits from record 181634-27.

Which information should accompany a quotation request?

Provide 330180-X2-00, MOD 181634-27, quantity, installed probe and extension-cable numbers, required calibrated system length, mounting arrangement and hazardous-area documentation needs.
