Description：

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cablel, and

One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

Specification：

Frequently asked questions

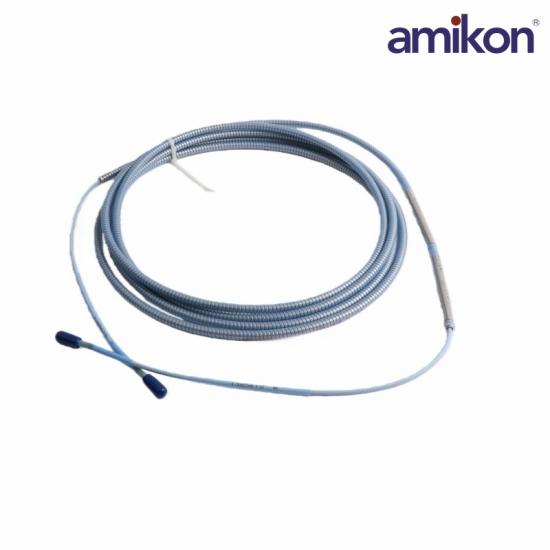

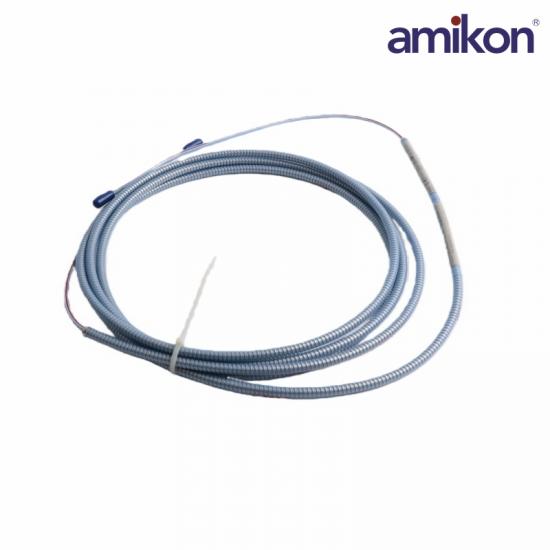

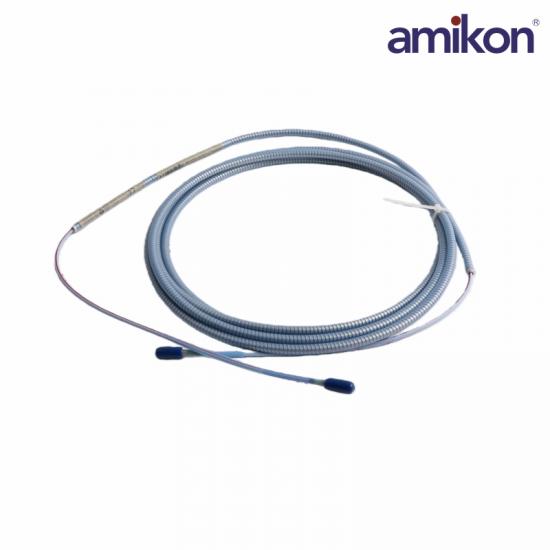

Q1: What is the Bently Nevada 330190-040-00-05 Extension Cable used for?

A1: The Bently Nevada 330190-040-00-05 Extension Cable is used to connect a compatible Bently Nevada proximity probe to a Proximitor® sensor.

Q2: What does Cable Length Option (040) indicate?

A2: Cable Length Option (040) specifies a cable length of 4.0 meters (11.5 feet), making it suitable for standard industrial installations requiring medium-distance connections.

Q3: What is the operating temperature range of the 330190-040-00-05 extension cable?

A3: The 330190-040-00-05 cable operates within a temperature range of -52°C to +260°C (-62°F to +500°F), providing reliable performance in both low- and high-temperature environments.

Q4: What are the electrical characteristics of the 330190-040-00-05 cable?

A4: The 330190-040-00-05 extension cable has a capacitance of 69.9 pF/m and a resistance of 7.592 Ω/m, helping maintain accurate signal transmission and compatibility with Bently Nevada proximity transducer systems.

Product Applications

Oil, gas, and petrochemical plants: large centrifugal compressors, reciprocating compressors, gas turbines, high-pressure pumps.

Thermal, nuclear, and hydroelectric power plants: steam turbine generator sets, gas turbines, feedwater pumps, cooling fans.

Iron and metallurgical plants: large blowers, blast furnace air separation compressors, rolling mill main drive motors.

Large fertilizer and chemical plants: synthetic ammonia compressors, refrigeration compressors, chemical process pumps.
