Description：

Gas and steam turbines can produce temperatures hotenough to damage or destroy conventional proximity probes.The 3300 High Temperature Proximity System (HTPS) isdesigned to withstand the extreme temperatures foundinside gas turbines, steam turbines and other types ofrotating machinery. The HTPS measures vibration, thrustposition, differential expansion and other parameters insidethe hot areas of these machines. High temperatureinstallations include:

Near a labyrinth seal in steam turbines

Differential expansion in steam turbines

When probe cables are routed through struts thatsupport the bearing housing of a gas turbine

When probe cables are routed out through the exhaustpath of a gas turbine

Monitoring a troublesome bearing in a hightemperature area

Mode shape analysis at the mid-span location onsteam and gas turbines for online machinerydiagnostics

Interstage radial and axial seal clearancemeasurements at the mid-span location of multi-stage steam turbines to minimize seal rubs

Most hot bearing locations that can destroyconventional proximity probes

Specification：

Frequently asked questions

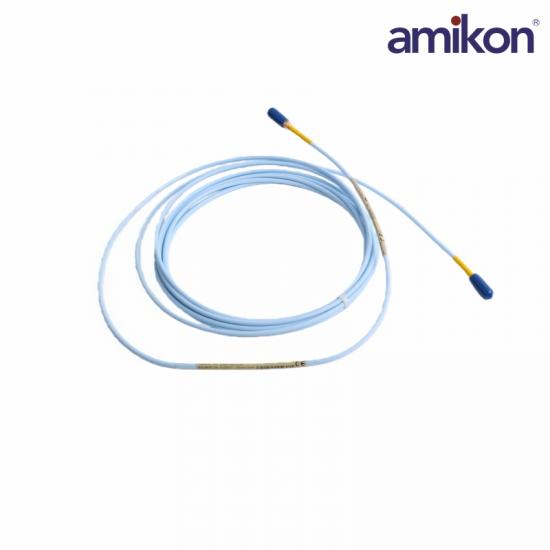

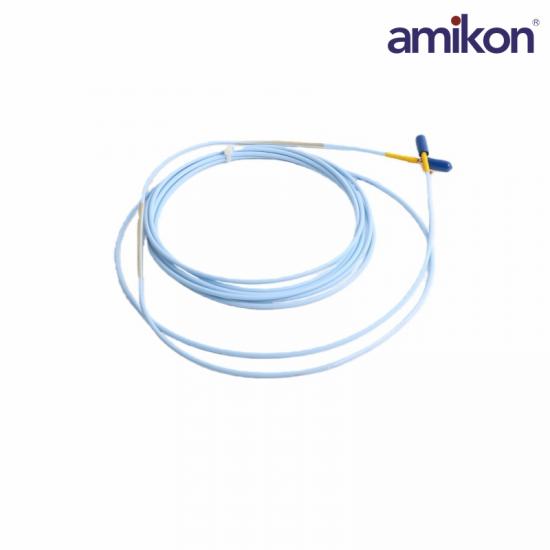

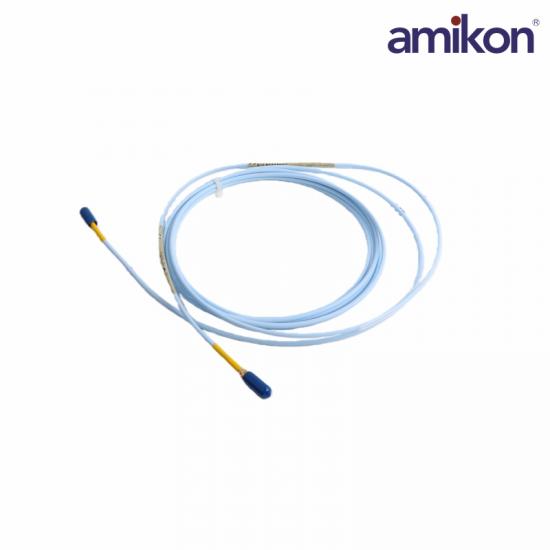

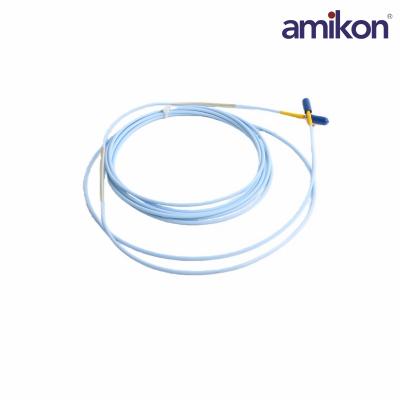

Q1: What is the Bently Nevada 330380-90-00 used for?

A: The 330380-90-00 Proximitor Sensor is designed for high-temperature vibration and displacement monitoring of rotating machinery such as turbines, compressors, and motors.

Q2: What is the 330380-90-00 total length and mounting option of this model?

A: Option 90 indicates a total length of 9.0 meters (29.5 ft.) with a panel mount configuration.

Q3: Does this model include mounting hardware?

A: Option 00 means no mounting hardware is included, allowing flexible installation based on user requirements.

Q4: What material is used for the proximitor sensor housing?

A: The housing is made of aluminum with an epoxy powder coat finish, providing durability and corrosion resistance.

Q5: What is the 330380-90-00 operating temperature range?

A: The 330380-90-00 sensor operates within -51°C to +100°C (-60°F to +212°F), suitable for harsh environments.

Product Applications

Petroleum and natural gas industry: Petroleum refining, natural gas compressors, long-distance pipeline pumping stations.

Power plants: Steam turbines, gas turbines, generator sets.

Chemical and petrochemical plants: High-temperature reaction vessel mixers, petrochemical centrifuges.

Steel and heavy industry: Large centrifugal fans, high-temperature and high-pressure pumps, drive shaft vibration monitoring.

Functionality and Applications

Vibration Monitoring: Real-time detection of the radial vibration of the shaft.

Displacement Measurement: Monitoring the position changes of the shaft during operation.

High Temperature Adaptability: Specifically designed for extreme thermal environments where conventional sensors cannot operate for an extended period (such as near engines or turbines).
