Bently Nevada 330400 Accelerometer Series

330400-01-05

Price and Availability Inquiry

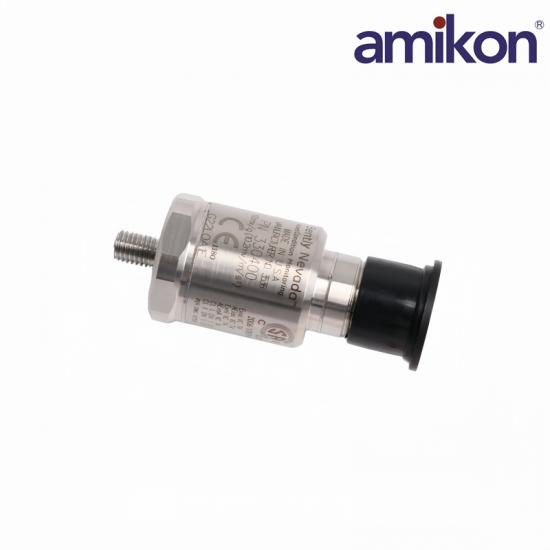

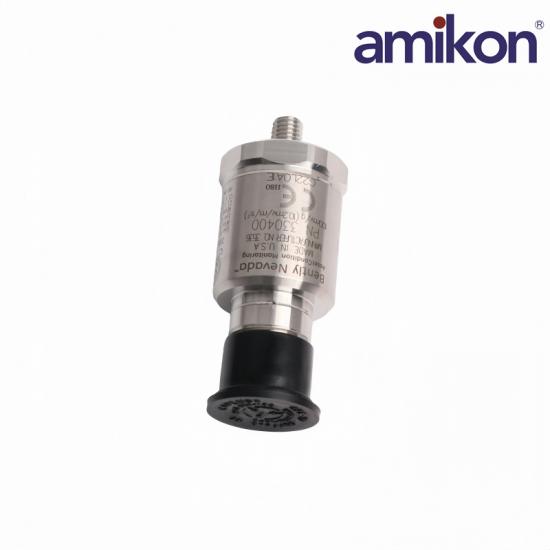

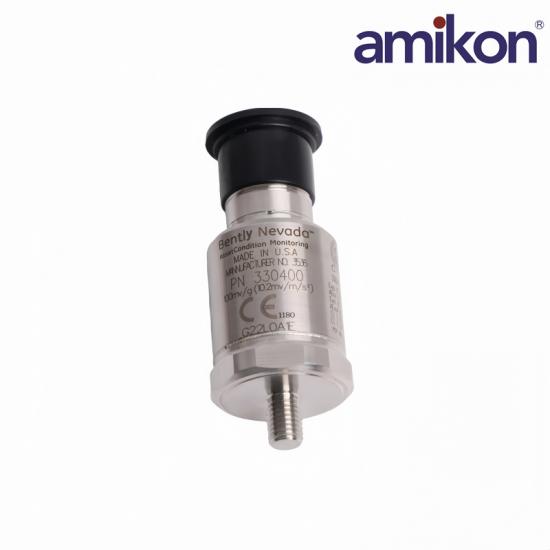

The Bently Nevada 330400-01-05 is a 330400 accelerometer with a 1/4-28 UNF integral mounting stud, 100 mV/g nominal sensitivity and the -05 multiple-approvals ordering option.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330400-01-05 and required quantity in your inquiry.

Bently Nevada 330400-01-05

Technical Specifications

Verified identification, configuration, interface and application data for 330400-01-05.

01Product IdentitySource-verified technical data

ManufacturerBently Nevada

Order number330400-01-05

Product designationAccelerometer

Product family330400 Series

02Sensing PerformanceSource-verified technical data

Sensitivity10.2 mV/m/s² (100 mV/g) ±5%

Acceleration range490 m/s² (50 g) peak

Frequency response10 Hz–15 kHz, ±3 dB

Amplitude linearity±1%

03Electrical & InterfaceSource-verified technical data

Power input−24 ±0.5 V DC

Current2 mA nominal

Connector3-pin MIL-C-5015

Broadband noise0.039 m/s² (0.004 g) RMS

04Mechanical & EnvironmentSource-verified technical data

Mounting1/4-28 UNF integral stud

Case material316L stainless steel

Operating temperature−55 to +121 °C

WeightApprox. 99 g

Bently Nevada 330400-01-05 Product Support

Frequently Asked Questions

Practical compatibility, application, installation, commissioning and ordering guidance for 330400-01-05.

What does the -01 mounting option specify?

The -01 option identifies a 1/4-28 UNF integral mounting stud. Confirm the machine mounting hole and thread condition before installation.

What does the -05 suffix represent?

The -05 suffix is the multiple-approvals ordering option. Confirm the required site approval and certificate set when ordering.

Which monitoring applications suit this sensor?

The 330400 accelerometer is used for casing-vibration measurement where an acceleration signal is required. Confirm monitor input compatibility and measurement range.

What power and signal wiring are required?

Use the documented −24 V DC constant-current interface at approximately 2 mA and the 3-pin MIL-C-5015 connection. Follow the system drawing for polarity and shielding.

How should the sensor be mounted?

Mount it on a clean, flat, rigid surface using the integral stud and the manufacturer-specified torque. Poor mounting can reduce high-frequency response.

What range should be checked during commissioning?

Verify the configured sensitivity of 100 mV/g, the expected frequency band and the monitor alarm ranges before placing the channel in service.

What information is needed for a replacement order?

Provide the complete number 330400-01-05, required quantity, mounting thread, cable/connector arrangement, monitor type and approval requirement.
