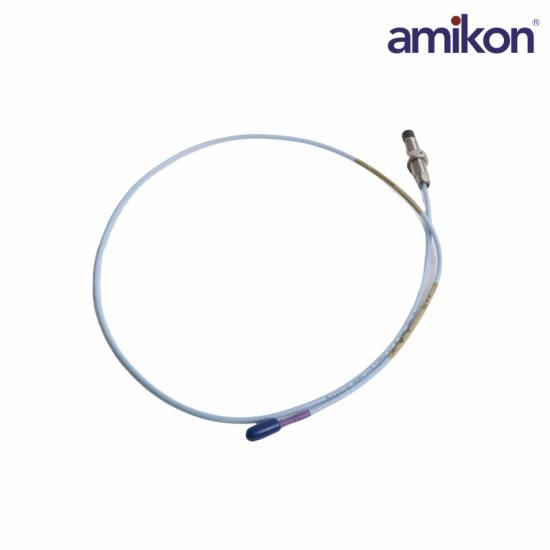

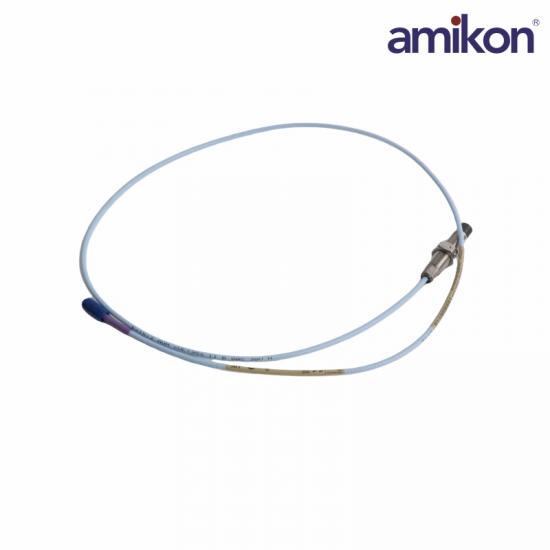

The Bently Nevada 330701-00-40-10-02-05 is a 3300 XL 11 mm Proximity Probe designed for use as part of the 3300 XL 11 mm Transducer System. When used together with the corresponding 3300 XL 11 mm Extension Cable and 3300 XL 11 mm Proximitor® Sensor, it forms a complete transducer system for non-contact proximity measurement and machinery condition monitoring.

The 3300 XL 11 mm probe is available in a variety of probe case configurations, including armored and unarmored versions with 1/2-20, 5/8-18, M14 × 1.5, and M16 × 1.5 probe threads to accommodate different installation requirements. The reverse mount 3300 XL 11 mm probe is supplied with either 3/8-24 or M10 × 1 threads as standard.

All components of the 3300 XL 11 mm Transducer System, including the 330701-00-40-10-02-05, are equipped with gold-plated brass ClickLoc® connectors. These connectors are designed to lock securely into place, helping to prevent the connection from becoming loose during installation or operation.

Frequently Asked Questions

What does the full part number 330701-00-40-10-02-05 mean?

It is a 3300 XL 11mm probe, 1/2-20 UNF thread, unarmored, 0.0" unthreaded length, 4.0" case length, 1.0m cable, miniature ClickLoc connector, with Multiple Approvals.

What is the key difference between an 11mm probe and a standard 8mm probe?

The 11mm probe has a wider linear range of 4.0 mm (160 mils), whereas the 8mm probe only offers 2.0 mm (80 mils).

What is the standard linear range of this 11mm probe?

Its certified linear range is 4.0 mm (160 mils) when measuring against a standard AISI 4140 steel target.

What is the maximum installation torque for the 1/2-20 thread?

The maximum recommended torque to lock the jam nuts is 27 N·m (240 in·lb). Always use anti-seize compound.

Product Applications

Power Industry: Steam turbines and generators for thermal power plants, nuclear power plants, and hydropower plants.

Oil and Gas: Centrifugal compressors and large fans for oil refineries and chemical plants.

Metallurgy and Mining: Blast furnace blowers and large rolling mill equipment for steel plants.

Heavy Manufacturing: Bearing condition monitoring for large water pumps, gearboxes, and gas turbine units.
