Description：

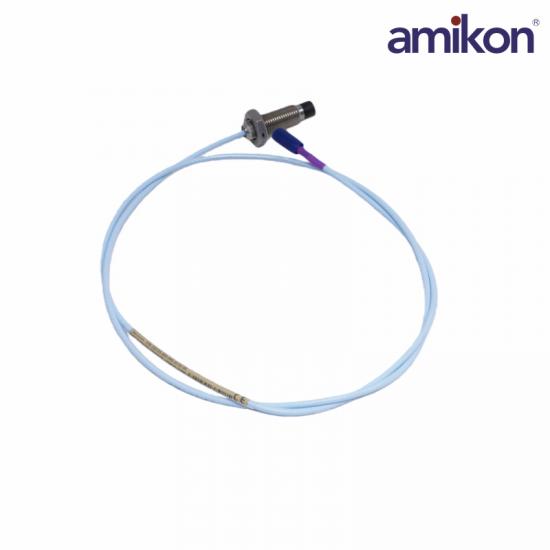

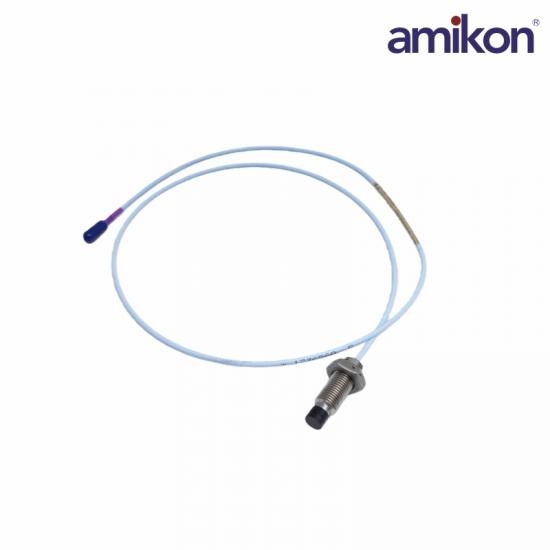

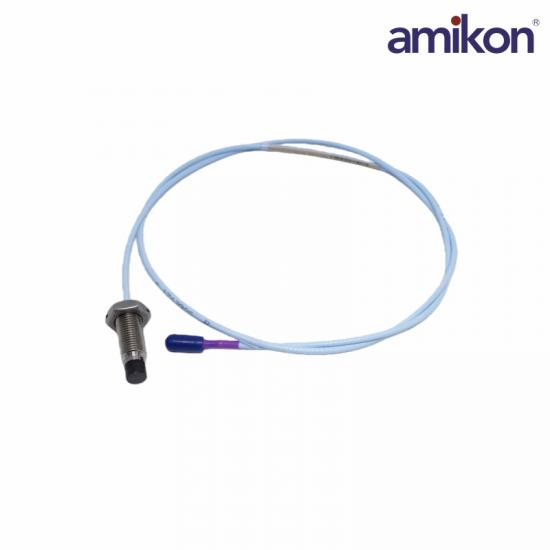

The 3300 XL 11 mm Proximity Transducer System has a 3.94V/mm (100 mV/mil) output for non-contacting vibration anddisplacement measurements on fluid film bearing machines.The large 11 mm tip enables this transducer system to have alonger linear range compared to our standard 3300 XL 8 mmTransducer System. It is primarily used in the followingapplications where the longer linear range is necessary:

Axial (thrust) position measurementsRamp differential expansion measurements on steamturbines Rod position or rod drop measurements onreciprocating compressorsTachometer and zero speed measurementsPhase reference (Keyphasor) signals

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330703-00-50-10-12-05 Proximity Probe?

A1: It is an industrial proximity probe used for non-contact vibration and shaft displacement monitoring in rotating machinery applications.

Q2: What is the 330703-00-50-10-12-05 overall case length of this probe?

A2: The 330703-00-50-10-12-05 overall case length option “50” corresponds to 50 mm.

Q3: What is the 330703-00-50-10-12-05 total probe length?

A3: The 330703-00-50-10-12-05 total length option “10” corresponds to 1.0 meter (3.3 feet).

Q4: What is the 330703-00-50-10-12-05 main function of this proximity probe?

A4: Its main function is to provide accurate non-contact measurement of shaft vibration and displacement in industrial rotating equipment.

Product Applications

Steam turbines/gas turbines: Used to monitor the axial (thrust) position, rotor dynamic movement, and differential expansion of steam turbines.

Large centrifugal compressors: Capture non-contact vibrations and displacements in machines with sliding bearings.

Hydropower industry: Monitoring blade clearance and bearing runout in large hydroelectric generator sets.
