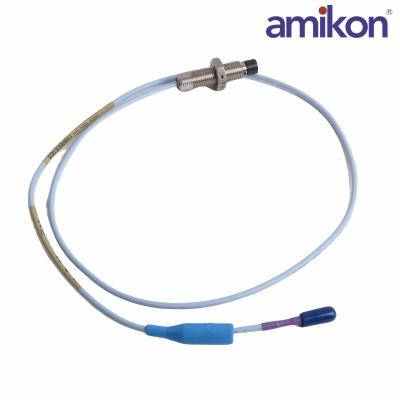

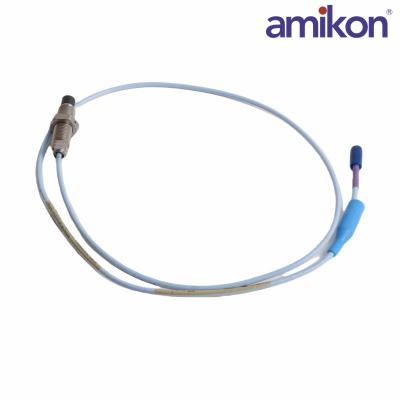

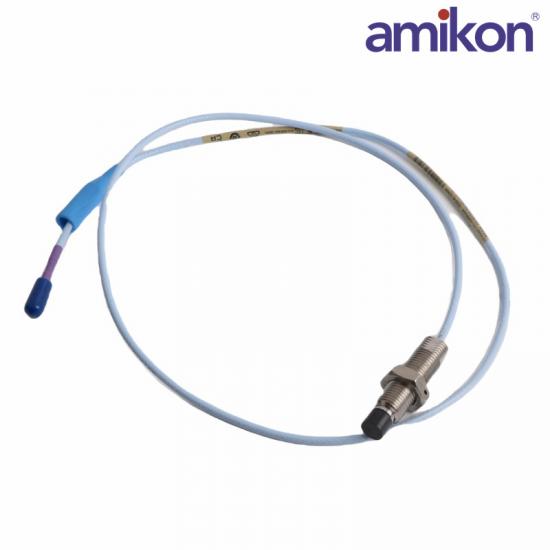

The Bently Nevada 330703-000-050-10-12-CN is a 3300 XL 11 mm Proximity Probe designed for use as part of the 3300 XL 11 mm Transducer System. The probe family provides multiple case and mounting configurations while incorporating secure connector and cable attachment technologies.

The 3300 XL 11 mm Proximity Probe is available in a variety of probe case configurations, including both armored and unarmored versions. The available probe thread configurations specified in the provided information include 1/2-20, 5/8-18, M14 × 1.5, and M16 × 1.5, allowing different mounting arrangements within the 3300 XL 11 mm probe family.

For applications requiring a reverse-mount configuration, the 3300 XL 11 mm reverse-mount probe is available as standard with either 3/8-24 or M10 × 1 threads. These configurations provide additional mounting options within the 3300 XL 11 mm Transducer System.

Frequently Asked Questions

Q : What does the full model number "330703-000-050-10-12-CN" represent?
A: It decodes to a 3300 XL 11mm Proximity Probe with an M14×1.5 metric thread, 0mm unthreaded length, 50mm overall case length, 1.0-meter total cable length, ClickLoc connector with fluid limiter, and CN (Chinese NEPSI) hazardous area approval.

Q : What is the exact linear measurement range of this 11mm probe?A: The standard linear range is 4.0 mm (160 mils), which starts approximately 0.5 mm (20 mils) away from the probe tip and extends to 4.5 mm (180 mils).

Q : What is the standard scale factor (sensitivity) of this sensor system?
A: The system sensitivity is 3.94 V/mm (100 mV/mil) when paired with a matching 3300 XL 11mm Proximitor Sensor.

Q : What are the operating temperature limits for the probe tip and cable?
A: The probe tip and cable can operate reliably in temperatures ranging from -51°C to +177°C (-60°F to +350°F).

Product Applications
Power and Energy: Steam turbines and hydroelectric generator sets in large thermal power plants and hydroelectric power stations.
Oil and Gas: Centrifugal compressors, large centrifugal pumps, and gas turbines in oil refineries and chemical plants.
Metallurgy and Mining: Monitoring of blast furnace blowers, large fans, and various heavy-duty gearbox bearings in steel plants.
Chemicals and Heavy Industry: Vibration status assessment of key rotating equipment such as high-pressure compressors and large synthetic ammonia compressors.
