The 3300 XL 11 mm Proximitor Sensor is designed to replacethe 7200-series 11 mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL 11 mmsystem, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must beupdated. If using a 3500 Monitoring System, an updatedversion of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need amodification. Contact your local sales andservice representative for assistance.

Frequently Asked Questions

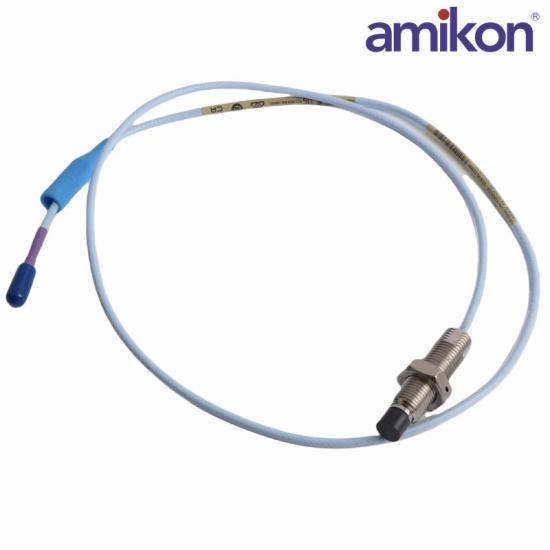

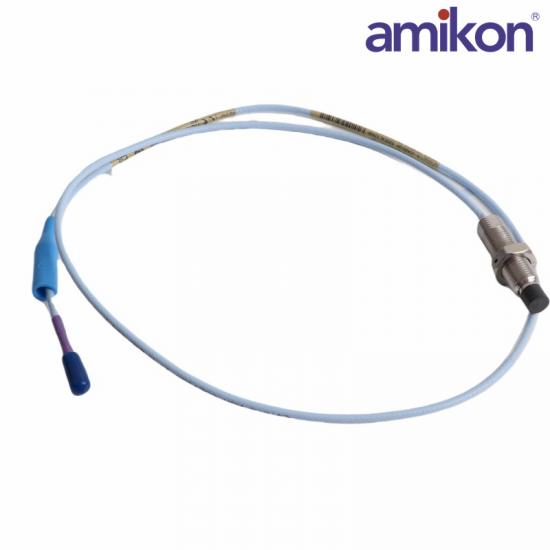

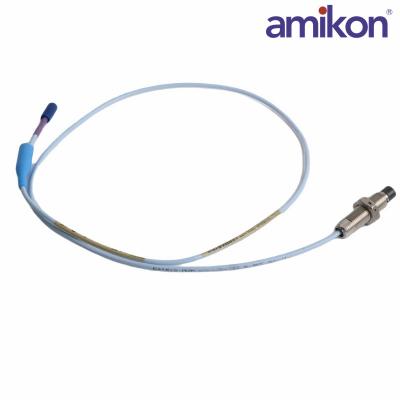

What does the part number 330703-000-060-90-02-00 stand for?

It is a Bently Nevada 3300 XL 11mm proximity probe with an M14×1.5 metric thread, 0 mm unthreaded length, 60 mm case length, 9.0-meter integrated cable, ClickLoc coaxial connector, and standard approvals.

What is the standard scale factor/sensitivity of this model?

Its standard output sensitivity is 3.94 V/mm (100 mV/mil) when paired with a matching 11mm Proximitor Sensor and AISI 4140 steel target.

Can I connect this 11mm probe to an 8mm or 5mm Proximitor?

No. Cross-matching probe diameters and Proximitor series yields incorrect voltage curves and can trigger false machine trips.

What does a constant -24 VDC output from the Proximitor mean?

This indicates an Open Circuit error. Check if the probe cable is disconnected, loose, or severed.

Product Applications

Oil and Gas: High-power centrifugal compressors, large pump sets, and variable frequency drive units in offshore drilling platforms, refineries, and natural gas pipelines.

Power and Energy: Hydropower generator sets, main steam turbines, feedwater pumps, and cooling water pumps in thermal power plants, nuclear power plants, and combined cycle power plants.

Chemical and Petrochemical: Bearing health monitoring in ethylene cracking units, high-pressure hydrogenation reactors, and various large fluid transport rotating machinery.

Metallurgy and Heavy Manufacturing: Radial and axial displacement monitoring of key transmission bearings in large blast furnace blowers, high-pressure descaling pumps, and rolling mills in steel plants.

Mining and Paper: Predictive maintenance of rolling/sliding bearings in large mine crushers, large fans in ore dressing plants, and drying cylinders and slurry pumps in paper mills.
