330703-000-080-10-02-00

Dimensions ：111x2.5x2cm

Weight：0.12kg

Operating Temperature：-35°C to +85°C

Humidity：95%, noncondensing

Power Consumption：5.15 watts typical

Storage Temperature：-51°C to +105°C

Full Description: Proximitor Sensor

The 3300 XL Proximitor Sensor incorporates numerous

improvements over previous designs.

Its physical packaging allows you to use it in high-density DIN-rail installations.

You can also mount the sensor in a traditional panel mount configuration,

where it shares an identical 4-hole mounting

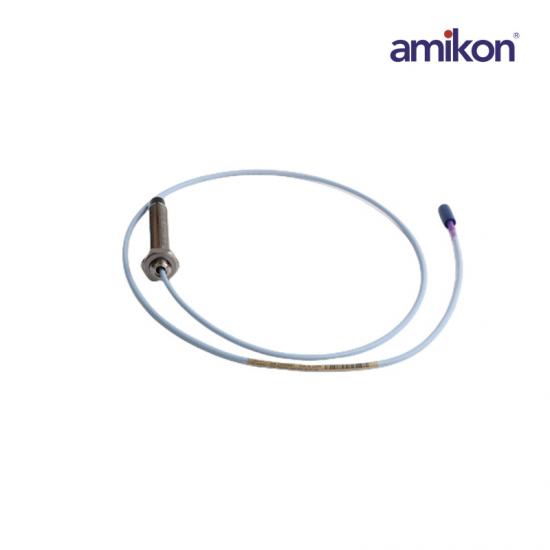

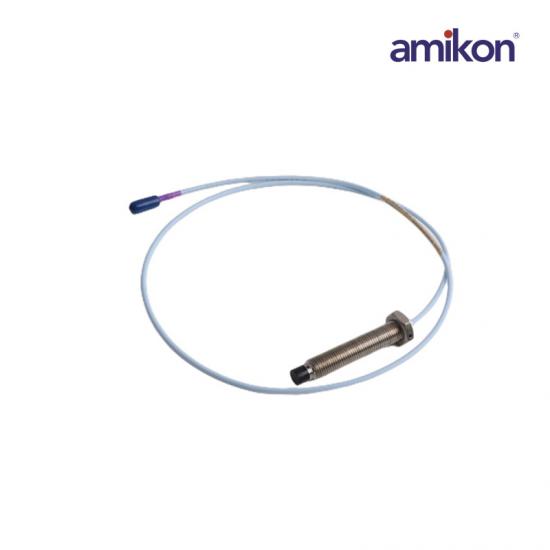

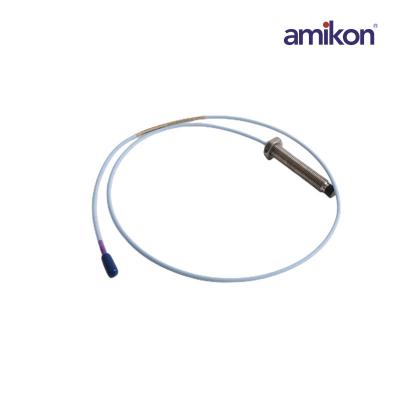

The 330703-000-080-10-02-00 is 3300 XL 11mm Proximity Probes.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable option.

This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection2.
