Manufacturer : Bently Nevada

Model Number: 330703-000-090-10-02-CN

Measurement Range: 0 to 90 mils (0 to 2.29 mm)

Output Signal: AC voltage (linearly proportional to displacement)

Frequency Response: 10 Hz to 100 kHz

Resolution: 0.1 mil (0.0025 mm)

Operating Temperature Range: –40°C to +120°C (–40°F to +248°F)

Material: Stainless steel shaft with ceramic tip

Environmental Protection: IP67 (dust and water-resistant)

Mounting Type: 1/2" NPT or flange-mounted

Connector Type: 3-pin industrial connector

Cable Length: 10 feet (3 meters), customizable

Operating Pressure: Up to 500 psi

Weight: Approximately 0.5 kg (1.1 lbs)

Certification: CE, RoHS compliant

The 3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option, designed to prevent oil and other liquids from leaking out of the machine through the cable’s interior. Additionally, the connector protector option provides enhanced protection for connectors in humid or moist environments, making it highly recommended for all installations to increase environmental protection.

The 3300 XL 11 mm probe comes standard with a locknut featuring pre-drilled safety wire holes for added security.

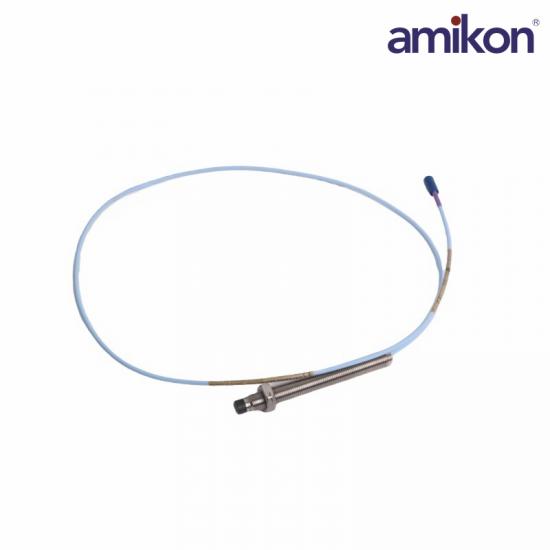

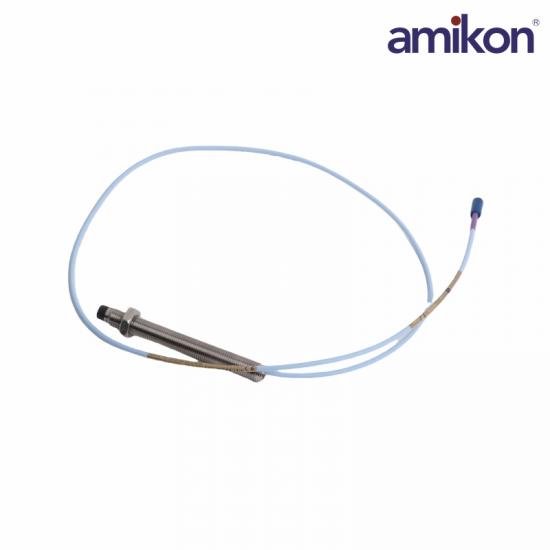

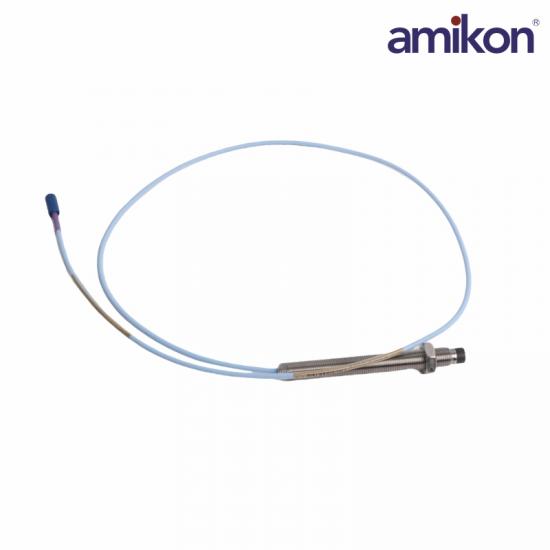

The Bently Nevada 330703-000-090-10-02-CN proximity probe is engineered for precise measurement of shaft displacement in rotating machinery. As part of the Bently Nevada 3300 series, it is used in critical vibration and condition monitoring applications. With its durable construction and reliable performance, this proximity probe helps provide early warning of machinery issues such as misalignment, imbalance, and bearing wear, ultimately reducing unplanned downtime and preventing costly failures.
