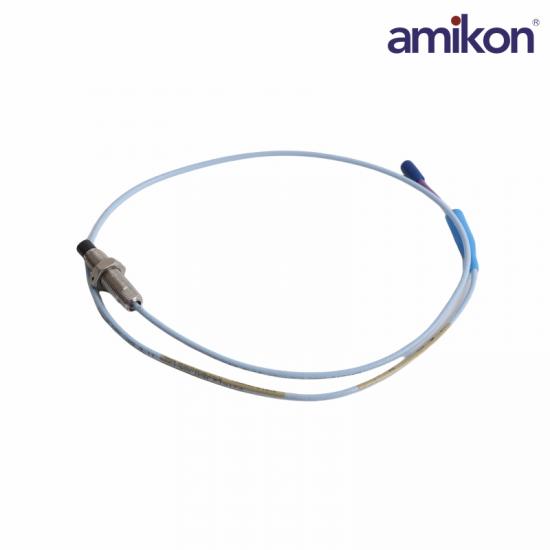

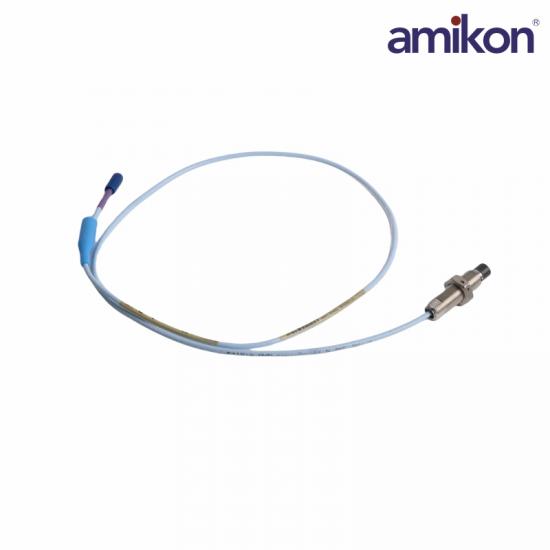

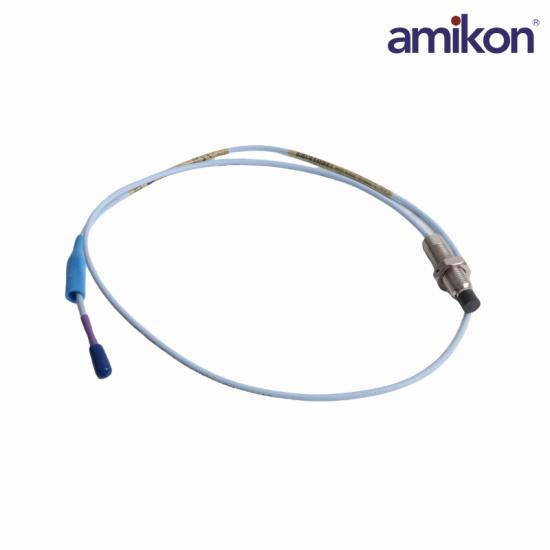

Product Number:330703-000-100-10-02-05

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 304 stainless steel (SST)

Proximitor Sensor Material: A380 aluminum

System Length: 5 or 9 meters including extension cable

Extension Cable Armor (optional): Flexible AISI 302 SST with FEP outer jacket

Connector Material: Gold-plated brass

Recommended Torque: Finger tight

Maximum Torque: 0.565 N•m (5 in•lb)

Minimum Bend Radius (with or without SST armor): 25.4 mm (1.0 in)

Extension Cable Weight: 45 g/m (0.5 oz/ft)

Armored Extension Cable Weight: 140 g/m (1.5 oz/ft)

Proximitor Sensor Weight: 255 g (9 oz)

Storage Temperature: -52°C to +105°C (-62°F to +221°F)

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals
