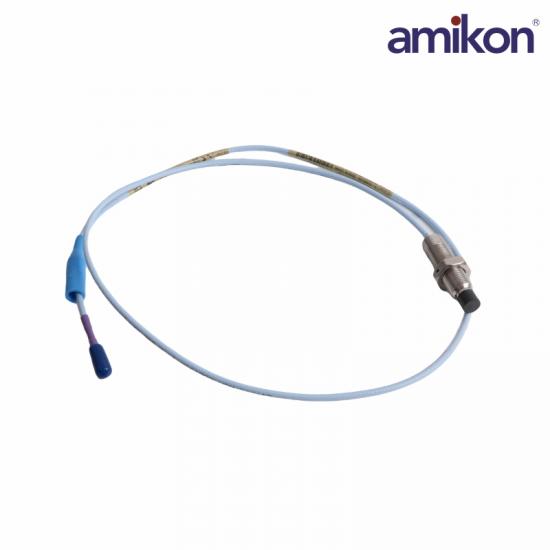

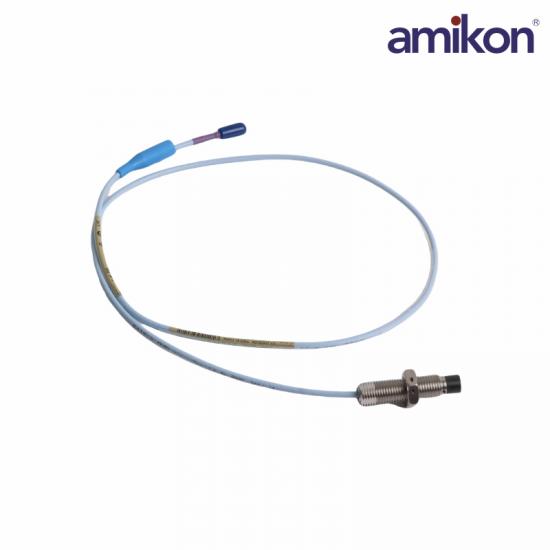

Model: 330703-010-040-10-02-CN

Type: 3300 XL 11 mm Proximity Probes

A: Unthreaded Length Option

Order in increments of 0.1 in

Length configurations:

Maximum unthreaded length: 8.9 in

Minimum unthreaded length: 0.0 in

Example: 04 = 0.4 in

B: Overall Case Length Option

Order in increments of 0.1 in

Threaded length configurations:

Maximum case length: 9.9 in

Minimum case length: 1.0 in

Example: 24 = 2.4 in

C: Total Length Option

10: 1.0 meter (3.3 feet)

50: 5.0 meters (16.4 feet)

90: 9.0 meters (29.5 feet)

The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. Additionally, the monitoring system must be updated.If using a 3500 Monitoring System, an updated version of the configuration software, which lists the 3300 XL 11 mm Transducer System as a compatible option, is required.Existing 3300 Monitoring Systems may need a modification to be compatible with the new system.
