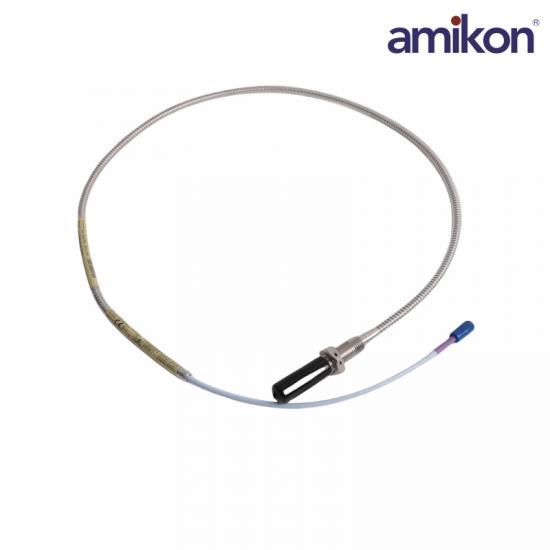

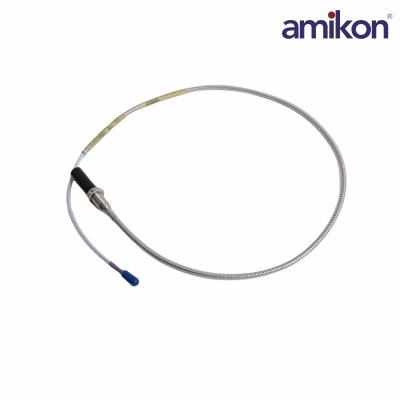

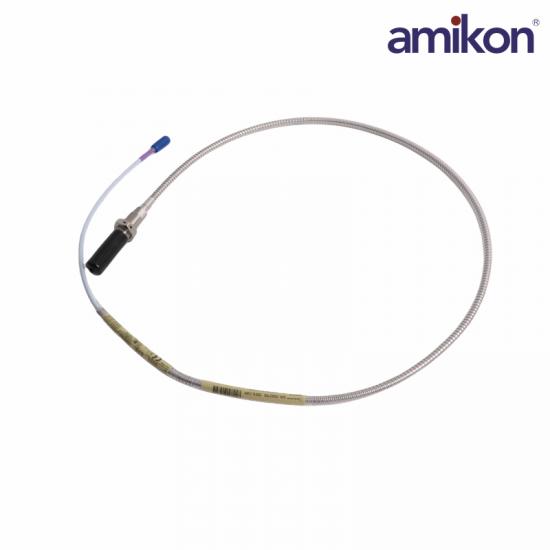

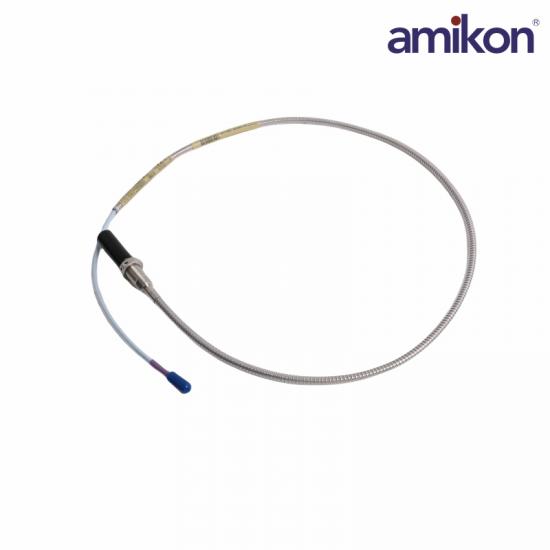

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5, and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads.

All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design, which provides 330 N (75 lb) pull strength.

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option, which prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection².

Additionally, the 3300 XL 11 mm probe comes standard with a locknut with pre-drilled safety wire holes.

Notes:

Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

Silicone tape is also provided with each 3300 XL extension cable and can be used instead of connector protectors. Silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

Q1: What is the Bently Nevada 330704-000-030-10-02-00 Proximity Probe used for?

A: The 330704-000-030-10-02-00 is a non-contact proximity probe used for monitoring shaft vibration, shaft position, and displacement in rotating machinery. It is commonly utilized in machinery protection and condition monitoring systems.

Q2: What is the linear measurement range of this 330704-000-030-10-02-00 proximity probe?

A: The 330704-000-030-10-02-00 probe provides a linear measurement range of 4.0 mm (160 mils), allowing accurate displacement measurements over a relatively wide operating range.

Q3: What is the 330704-000-030-10-02-00 operating temperature range of the probe head and cable?

A: The 330704-000-030-10-02-00 probe head and cable can operate within a temperature range of -51°C to +177°C (-60°F to +351°F), making the probe suitable for demanding industrial environments.

Q4: What is the output sensitivity of the 330704-000-030-10-02-00?

A: The 330704-000-030-10-02-00 probe offers an output sensitivity of 3.94 V/mm (100 mV/mil), enabling precise detection of shaft movement and vibration.

Product Applications

Thermal and nuclear power generation: Used for mechanical protection of main steam turbine generator sets, large blowers, and feedwater pumps.

Oil and gas refining: Used for centrifugal compressors in long-distance gas pipelines, large hydrogenation feed pumps, and catalytic cracking units (three-unit system).

Metallurgy and steel: Used for core power equipment such as blast furnace blowers and large exhaust fans.

Large-scale chemical industry: Used for key power equipment such as synthetic ammonia compressors and methanol compressors.
