Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Manufacturer |
Bently Nevada |
|
Part Number |

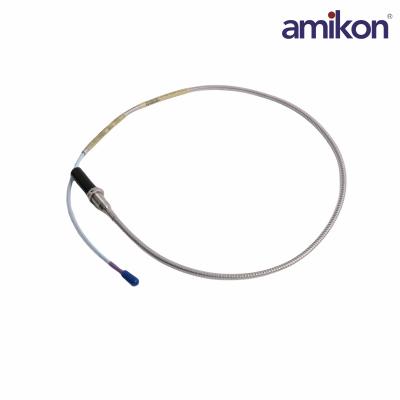

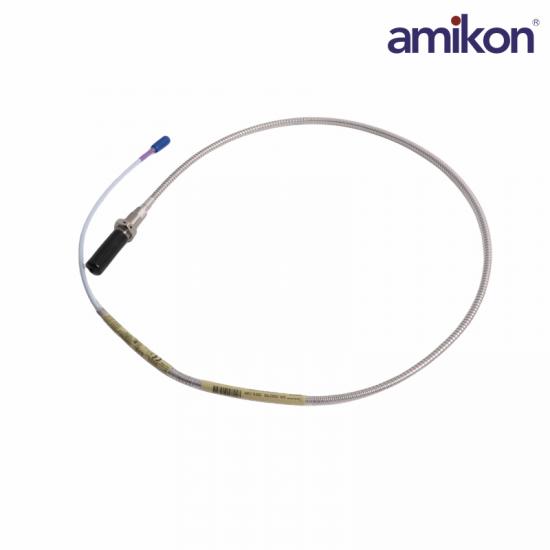

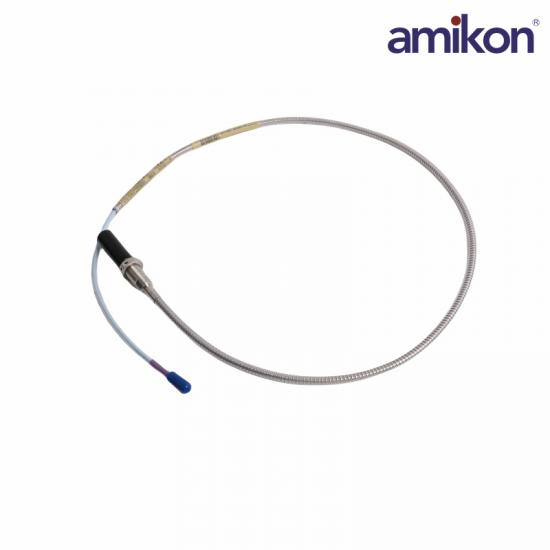

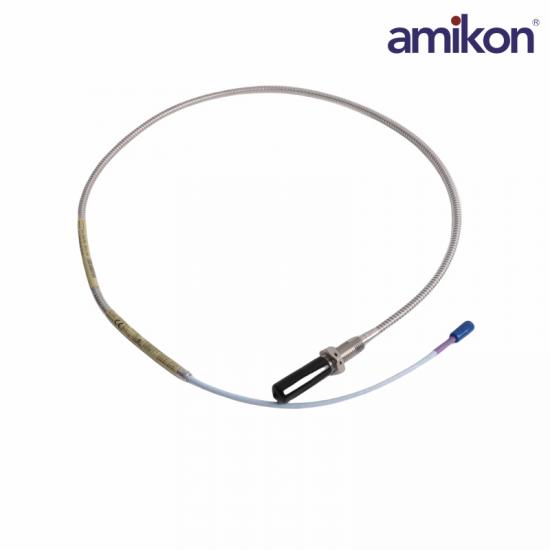

330704-000-050-90-02-05 |
|
Unthreaded Length Option |
000 → 00 mm |
|
Overall Case Length Option |
050 → 50.0 mm |
|
Total Length Option |
90 → 9.0 m (29.5 ft) |
|
Connector & Cable Type |
02 → Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
05 → Multiple Approvals |
|
Probe DC Resistance |
8.5 ± 1.1 Ω (9.0m length) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Cable Specification |
75Ω triaxial, FEP insulated |
|
Probe Case Thread |
M14×1.5 |
|
Max Thread Engagement |
21 mm |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to the standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals
Frequently Asked Questions
Q1: What is the Bently Nevada 330704-000-050-90-02-05?
A1: It is a proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems.
Q2: What does the “050” overall case length option represent?
A2: “050” indicates an overall case length of 50.0 mm.
Q3: What does the “90” total length option represent?
A3: “90” specifies a total cable length of 9.0 meters (29.5 feet), suitable for long-distance installations.
Q4: What is the 330704-000-050-90-02-05 probe case thread specification?
A4: The 330704-000-050-90-02-05 probe uses an M14 × 1.5 thread, ensuring secure and standardized mounting.
Q5: What is the 330704-000-050-90-02-05 probe DC resistance?
A5: The nominal probe DC resistance is 8.5 ± 1.1 ohms for the 9.0-meter cable length.
Product Applications
Oil & Gas: Monitoring compressors and pump sets in oil production platforms and long-distance pipelines.
Petrochemical & Power: Monitoring axial displacement and radial vibration in steam turbines, generators, and gas turbines.
Municipal Engineering: Monitoring the rotating shafts of large water pumps, fans, and other equipment.
General Machinery Protection: Machines involving fluid film bearings, such as large electric motors and centrifugal compressors.
