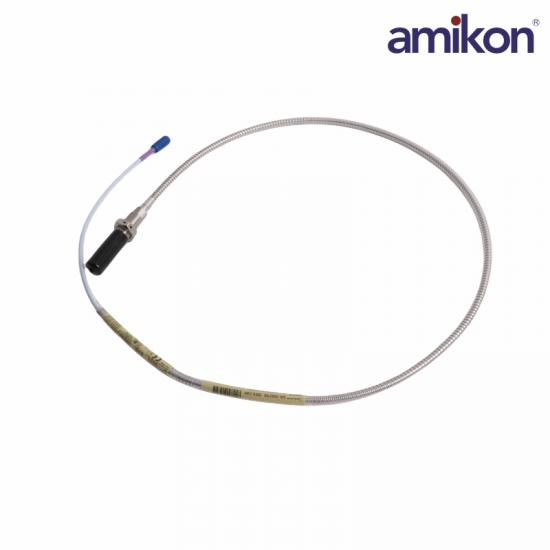

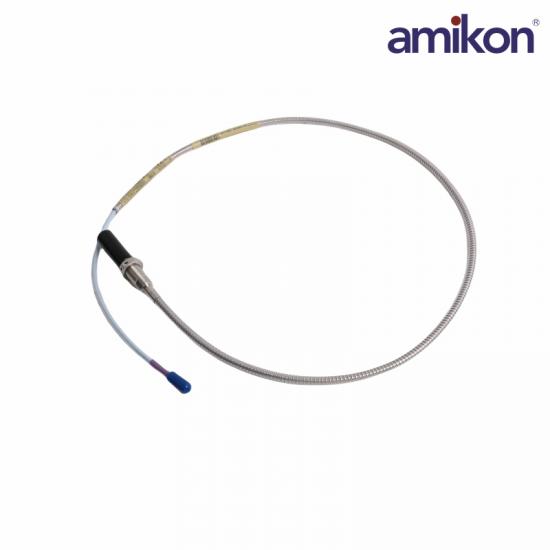

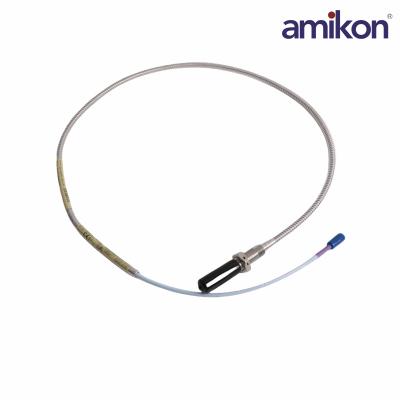

The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor1

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on

reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

Frequently Asked Questions

Q1: What is the Bently Nevada 330704-000-060-10-02-CN Proximity Transducer System used for?

A: The 330704-000-060-10-02-CN Proximity Transducer System is used for non-contact monitoring of shaft vibration, shaft position, and displacement in rotating machinery.

Q2: What is the 330704-000-060-10-02-CN overall case length of this transducer system?

A: The 330704-000-060-10-02-CN probe features an overall case length of 60 mm, making it suitable for installations with limited mounting space while maintaining reliable measurement performance.

Q3: What is the storage temperature range of the 330704-000-060-10-02-CN system?

A: The 330704-000-060-10-02-CN transducer system can be stored at temperatures ranging from -52°C to +105°C (-62°F to +221°F) without affecting its integrity when properly handled.

Q4: What is the operating temperature range of the 330704-000-060-10-02-CN system?

A: The 330704-000-060-10-02-CN system supports operating temperatures from -52°C to +177°C (-62°F to +351°F), allowing it to perform reliably in demanding industrial environments.

Product Applications

Oil and Gas (Oil & Gas Chemicals): Monitoring large centrifugal compressors, process gas compressors, and gearboxes.

Power and Energy: Used for heavy industrial steam turbines, water turbines, and gas turbine units in power plants.

Iron and Metallurgy: Monitoring rotating machinery in high-temperature, high-pressure, and dusty environments, such as blast furnace blowers, large induced draft fans, and rolling mills.

Chemical and Petrochemical: Condition analysis of hydrodynamic bearings (sliding bearings) in harsh environments.

General Fluid Machinery: Used for measuring axial displacement (thrust position) and radial vibration of shafts in large industrial fans, pumps, and other equipment.
