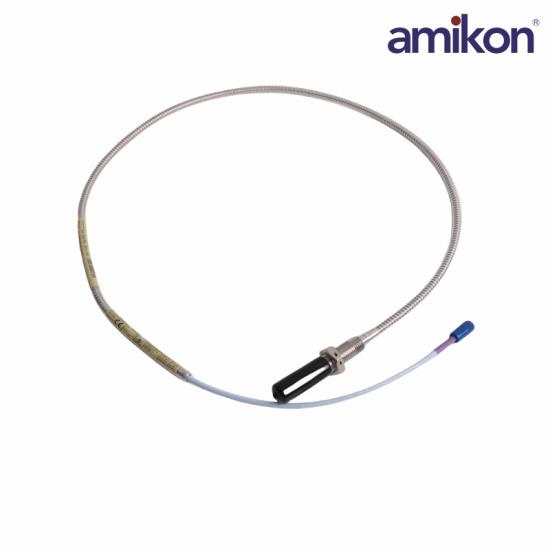

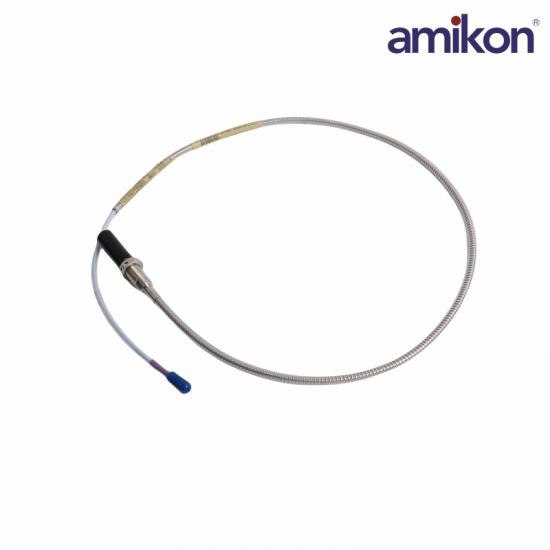

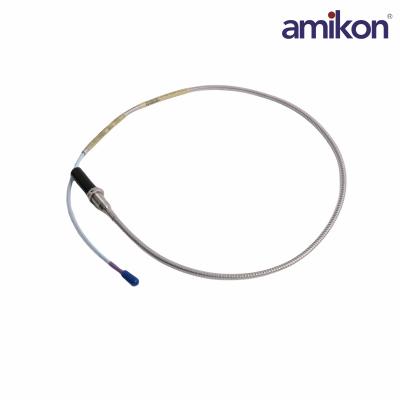

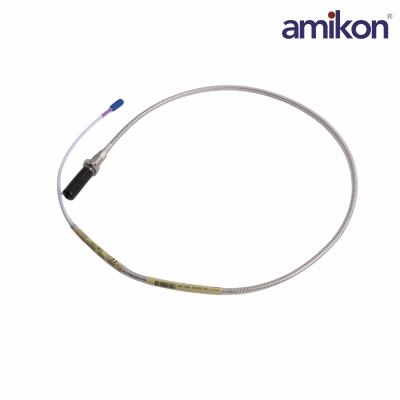

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5, and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment.

Frequently Asked Questions

Q1: What is the Bently Nevada 330704-000-100-10-02-00 Proximity Probe used for?

A1: The 330704-000-100-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, and displacement in critical rotating machinery monitoring and protection systems.

Q2: What is the nominal sensitivity of the 330704-000-100-10-02-00 probe?

A2: The 330704-000-100-10-02-00 probe has a nominal sensitivity of 3.94 V/mm (100 mV/mil), providing accurate and reliable displacement measurements.

Q3: What is the operating temperature range of the 330704-000-100-10-02-00 probe?

A3: The 330704-000-100-10-02-00 operating temperature range is -52°C to +177°C (-62°F to +351°F), making it suitable for harsh industrial environments.

Q4: What is the frequency response of the 330704-000-100-10-02-00 probe?

A4: The 330704-000-100-10-02-00 probe provides a frequency response of 0 to 10 kHz, allowing it to detect both low-frequency and high-frequency shaft vibration signals.

Q5: What output signal does the 330704-000-100-10-02-00 proximity transducer system require?

A5: The 330704-000-100-10-02-00 associated transducer system operates with an output signal of -24 VDC ±5%, ensuring stable signal conditioning and measurement performance.

Product Applications

Oil and Gas: Monitoring of critical large rotating machinery (such as compressors and gas turbines).

Petrochemical Industry: Equipment condition monitoring in high-vibration and high-temperature areas.

Municipal and Power Industries: Measurement of axial (thrust) position and slope differential expansion of steam turbines.
