The Bently Nevada 330706-005-046-10-02-00 is a 3300 XL 11 mm Extension Cable designed for use as part of the 3300 XL 11 mm Transducer System. When connected with the corresponding 3300 XL 11 mm Proximity Probe and 3300 XL 11 mm Proximitor® Sensor, it forms a complete transducer system for machinery condition monitoring and proximity measurement.

The 3300 XL 11 mm Transducer System is designed to replace the earlier 7200-series 11 mm and 14 mm Transducer Systems, providing a standardized upgrade solution for existing Bently Nevada installations.

For installations using the 3500 Monitoring System, an updated version of the configuration software is required. The software must identify the 3300 XL 11 mm Transducer System as a compatible option before the upgraded transducer system can be configured and used.

Frequently Asked Questions

Q : What is the full product description for part number 330706-005-046-10-02-00?

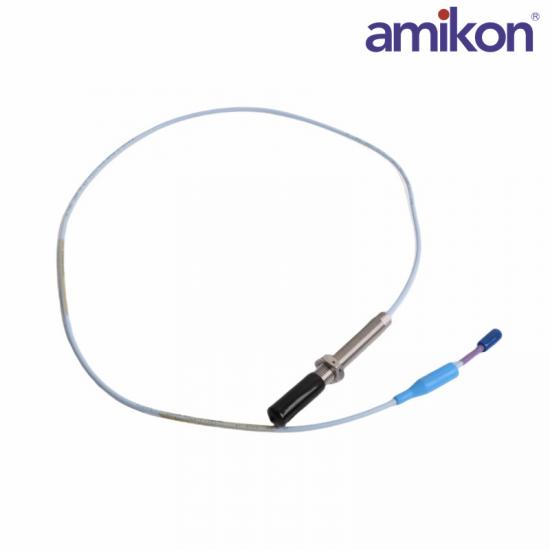

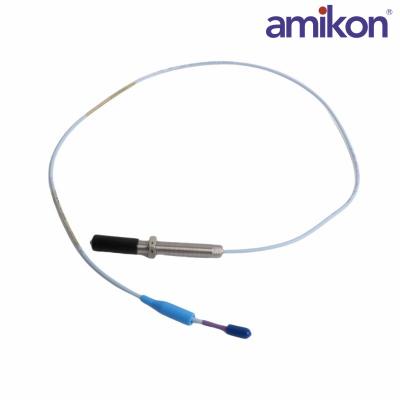

A: It is a 3300 XL 11 mm Reverse Mount Proximity Probe with an M10×1 threaded housing, 5 mm unthreaded length, 46 mm overall case length, 1.0-meter total cable length, miniature ClickLoc coaxial connector, and standard approvals.

Q : What does the "330706" portion of the part number signify?

A: It represents the core product base model for the 3300 XL 11 mm Reverse Mount Probe series.

Q : What is the standard scale factor (sensitivity) of this 11 mm probe system?

A: When properly matched with its corresponding extension cable and Proximitor sensor, the system features a sensitivity of 3.94 V/mm (100 mV/mil).

Q : What is the total linear measurement range of this 11 mm probe system?

A: It has a wide linear range of 0.5 mm to 4.5 mm (20 to 180 mils), which is double the range of a standard 8 mm probe.

Product Applications

Power Industry: Steam turbines and gas turbines for large thermal and hydroelectric power plants.

Oil and Gas: Centrifugal compressors, large fans, and industrial turbines for oil refineries and chemical plants.

Metallurgy and Mining: Blast furnace blowers and large rotating machinery such as large rolling mills in steel plants.
