English
Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|

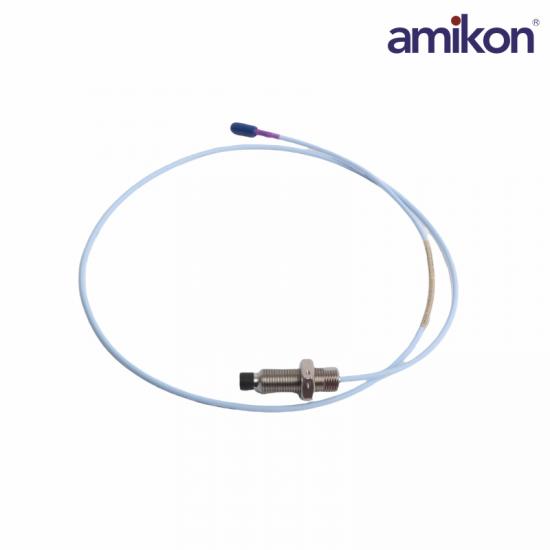

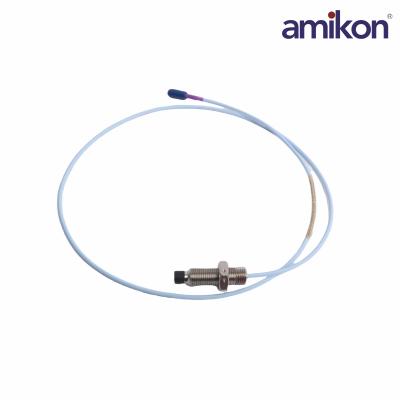

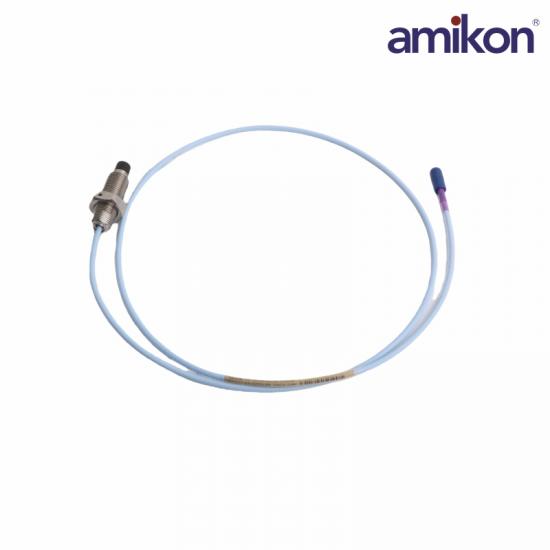

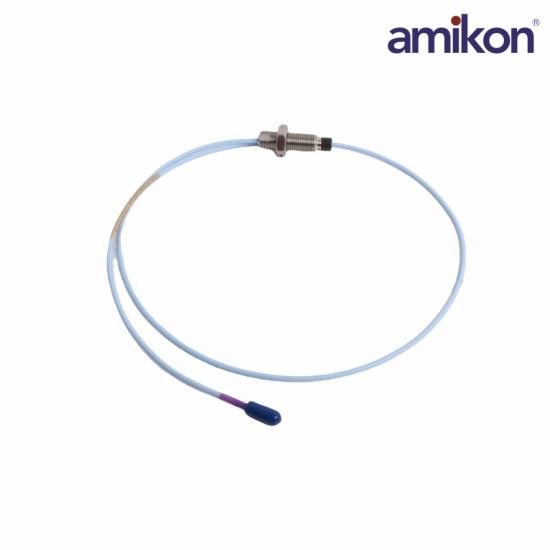

Model: 330709-000-050-10-12-05 |
|
A:Unthreaded Length Option |
|
Order in increments of 2 mm. |
|
Length configuration: |
|
Maximum unthreaded length: 224 mm |
|
Minimum unthreaded length: 0 mm |
|
Example: 0 6 0 = 60 mm |
|
B: Overall Case Length Option |
|
Order in increments of 2 mm. |
|
Metric thread configurations: |
|
Maximum length:250 mm |
|
Minimum length:26 mm |
|
Example: 0 6 0 = 60 mm |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
+86 18965423501
sales7@amikon.cn
AMKPLC
Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
Finding a reliable and experienced supplier of components can be a daunting task. At AMIKON, we cooperate with more than 30,000 customers in 156 countries and regions around the world. With the help of industry-leading service, speed and knowledge, purchasing spare parts couldn't be easier
Spare inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "Contact Us".
Spare quotatio
We will reply you within an average of one hour and provide a competitive offer. Then, we will contact you to ensure that you are satisfied with the quotation and delivery time.
Spare order
One of our warehouses will pack your parts—make sure you receive the parts in good condition, your parts are usually shipped the same day.
Amikon sells new and surplus products and develops channels to purchase such products.
This site is not approved or endorsed by any of the listed manufacturers or trademarks.
Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.
All product names, trademarks, brands and logos used on this site are the property of their respective owners.
The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
