The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’sinterior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection2.

Frequently Asked Questions

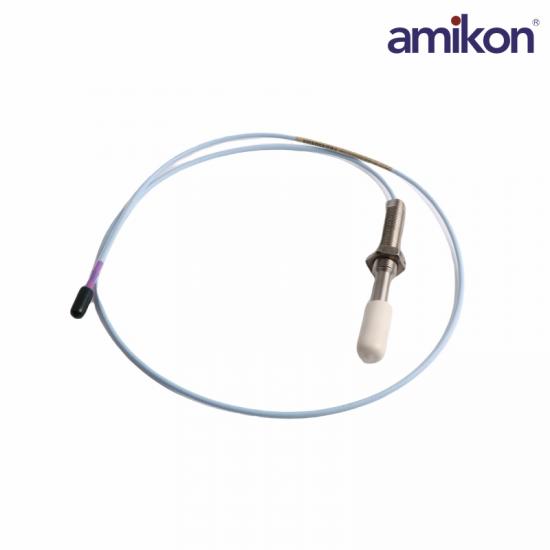

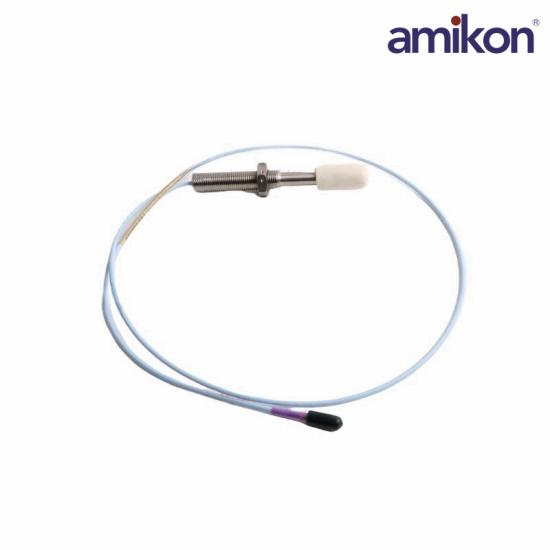

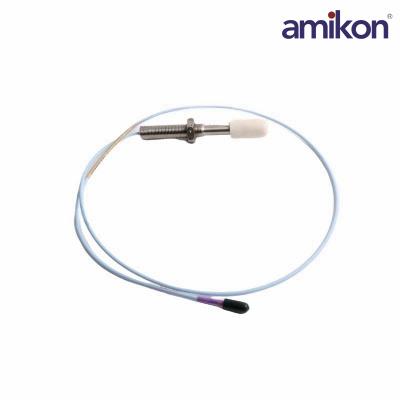

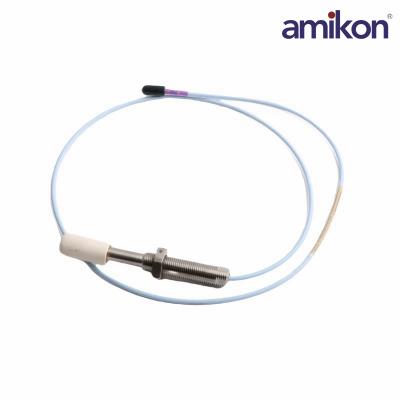

Q1: What is the Bently Nevada 330709-050-120-90-02-00 Proximity Probe used for?

A: The 330709-050-120-90-02-00 is a non-contact proximity probe used for monitoring shaft vibration, shaft position, and displacement in rotating machinery.

Q2: What is the overall case length of this 330709-050-120-90-02-00 proximity probe?

A: The 330709-050-120-90-02-00 probe features an overall case length of 120 mm, providing flexibility for installations that require additional mounting depth.

Q3: What is the total length of the 330709-050-120-90-02-00 probe assembly?

A: The 330709-050-120-90-02-00 probe has a total length of 9.0 meters (29.5 feet), making it suitable for applications where long cable runs are required between the sensing point and monitoring equipment.

Q4: What is the linear range of the 330709-050-120-90-02-00?

A: The 330709-050-120-90-02-00 probe offers a linear range of 4.0 mm (160 mils), enabling accurate displacement measurements across a wide operating range.

Product Applications

Power Generation: Large steam turbines, gas turbines, hydroelectric generator sets, generators.

Oil & Gas/Petrochemical: Large centrifugal compressors, reciprocating compressors, pipeline pumps, pyrolysis gas separators.

Metallurgy & Heavy Industry: Blast furnace blowers, large exhaust fans, rolling mill gearboxes, air separation unit compressors.

Marine & Water Conservancy: Large axial flow pumps, marine main propulsion shaft systems.
