Bently Nevada 3300 XL 11 mm Proximity Transducer System

330710-00-05-50-02-05

Price and Availability Inquiry

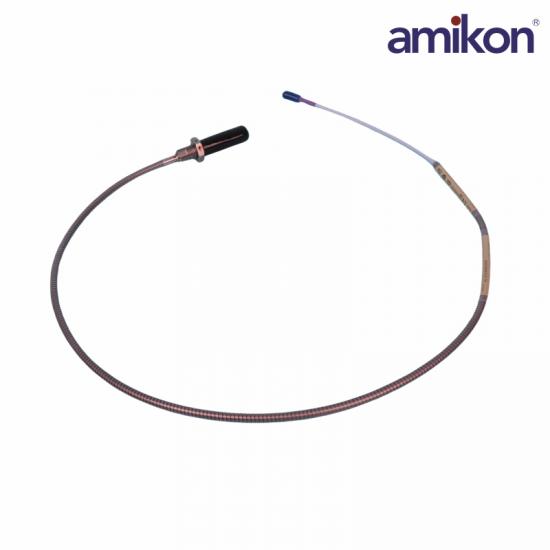

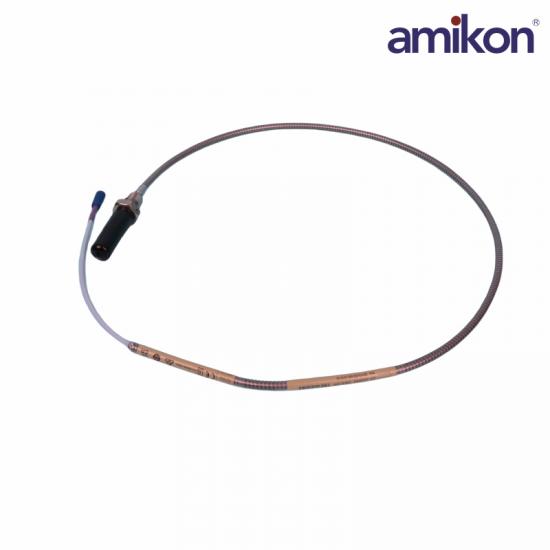

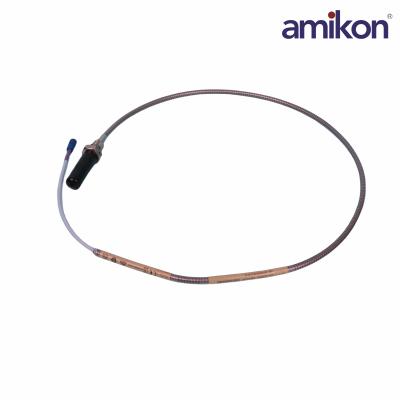

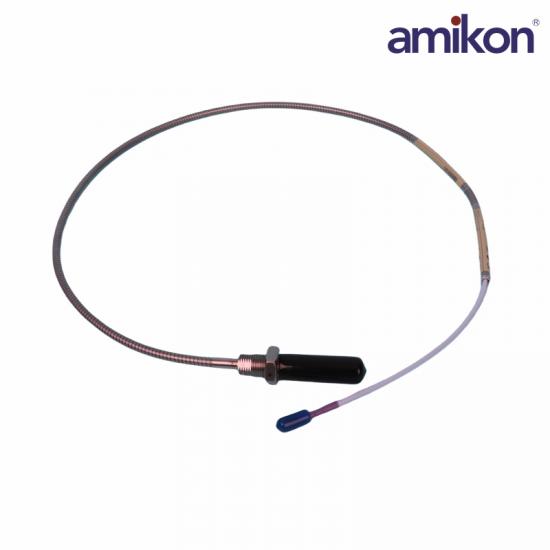

The Bently Nevada 330710-00-05-50-02-05 is a 3300 XL 11 mm armored proximity probe with M16 x 1.5 mounting, a 5.0 m (16.4 ft) total probe length, miniature coaxial ClickLoc connector, standard cable and multiple approvals. The compact 00/05 length fields are retained exactly and should be verified against the installed nameplate or equipment BOM.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330710-00-05-50-02-05 and required quantity in your inquiry.

BENTLY NEVADA 330710-00-05-50-02-05

Technical Specifications

Source-verified identification, construction, performance and installation data for 330710-00-05-50-02-05.

01Product IdentityOfficial Baker Hughes ordering data

MANUFACTURERBently Nevada

ORDER NUMBER330710-00-05-50-02-05

PRODUCT DESIGNATION3300 XL 11 mm Proximity Probe

PROBE BODYM16 x 1.5 thread; with armor

02Order-Code ConfigurationDecoded official selectable fields

LENGTH FIELDS 00 / 05Exact compact code retained; verify dimensions

TOTAL LENGTH 505.0 m (16.4 ft)

CONNECTOR / CABLE 02ClickLoc connector; standard cable

AGENCY APPROVAL 05Multiple Approvals

03Probe ConstructionOfficial mechanical data

TIP MATERIALPolyphenylene sulfide (PPS)

CASE MATERIALAISI 304 stainless steel

CABLE CONSTRUCTION75 Ω triaxial, FEP-insulated probe cable

MINIMUM BEND RADIUS25.4 mm (1.0 in)

04System PerformancePublished complete-system data

LINEAR RANGE4.0 mm (160 mil)

SCALE FACTOR3.94 V/mm (100 mV/mil)

RECOMMENDED GAP2.5 mm (100 mil)

PROBE TEMPERATURE-52 to +177 °C

Bently Nevada 330710-00-05-50-02-05 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 330710-00-05-50-02-05.

Which thread and armor configuration does 330710 use?

The 330710 base number identifies an M16 x 1.5 metric 3300 XL 11 mm probe supplied with armor. Match both features before replacing an installed probe.

How should the compact 00 / 05 length fields be verified?

The supplied order identity is retained exactly as 330710-00-05-50-02-05. The current Baker Hughes table publishes metric length fields in three-digit AAA/BBB format, so confirm the physical unthreaded and overall case lengths from the installed nameplate, equipment BOM or drawing.

Which total probe length and sensor pairing apply?

Code 50 specifies a 5.0 m (16.4 ft) total probe length. Baker Hughes states that five-meter probes are designed for use with the five-meter 3300 XL 11 mm Proximitor Sensor.

Which connector and cable option is included?

Code 02 specifies a miniature coaxial ClickLoc connector with standard cable and no connector protector. The probe lead uses 75 Ω triaxial FEP-insulated cable.

Which measuring range and scale factor apply?

The complete 3300 XL 11 mm system provides a 4.0 mm (160 mil) linear range with a nominal incremental scale factor of 3.94 V/mm (100 mV/mil).

Which installation limits should be checked?

Use the published 2.5 mm (100 mil) recommended gap, 25.4 mm (1.0 in) minimum cable bend radius and a maximum M16 x 1.5 thread engagement of 24 mm.

Which details should accompany a quotation request?

Provide the exact order number 330710-00-05-50-02-05, required quantity, installed nameplate photos, verified length fields, five-meter sensor pairing and approval requirements.
