Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer : Bently Nevada

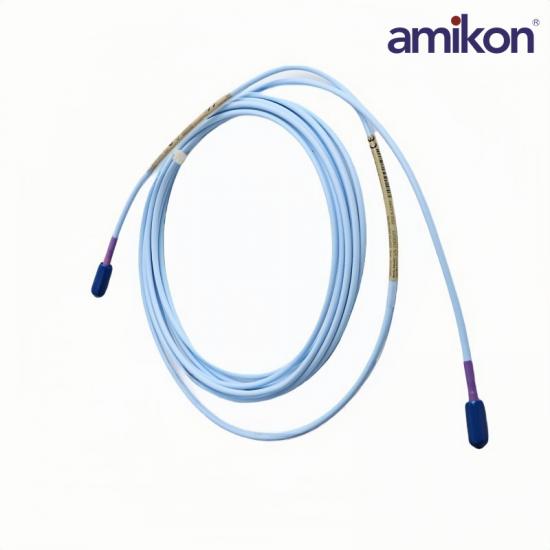

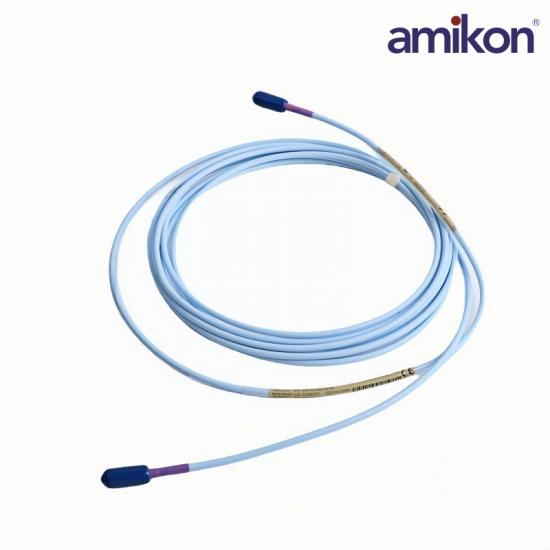

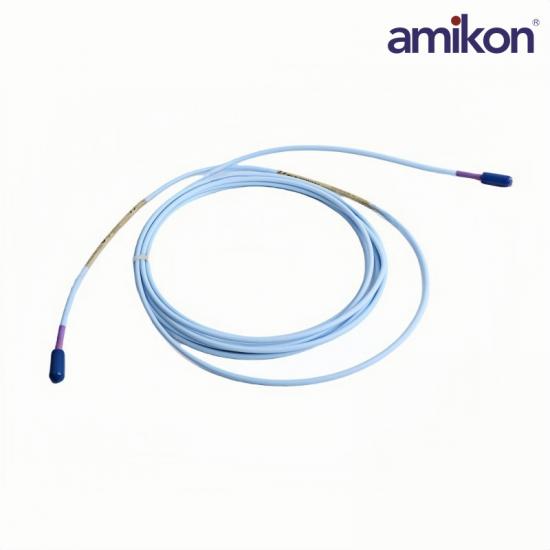

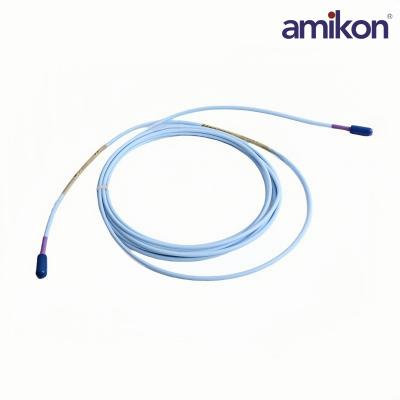

Product Number :330730-040-03-05
Product type :3300 XL 11 mm Probe
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Recommended Gap Setting: 2.5 mm (100 mils)
Output Resistance: 50 Ω
Standard DSL Range: Less than ±0.10 mm (±4 mils)
Extended DSL Range: Less than ±0.15 mm (±6 mils)
Recommended Minimum Probe Tip Distance: 30.5 mm (1.2 in)
Recommended Minimum Probe Case Distance: 152 mm (6.0 in)
The 3300 XL 11 mm Proximity Transducer System provides a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip allows this transducer system to achieve a longer linear range compared to the standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where a longer linear range is essential:
Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals
