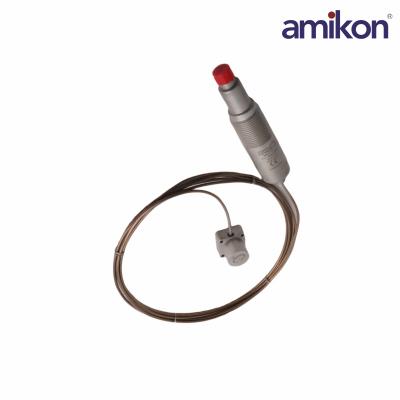

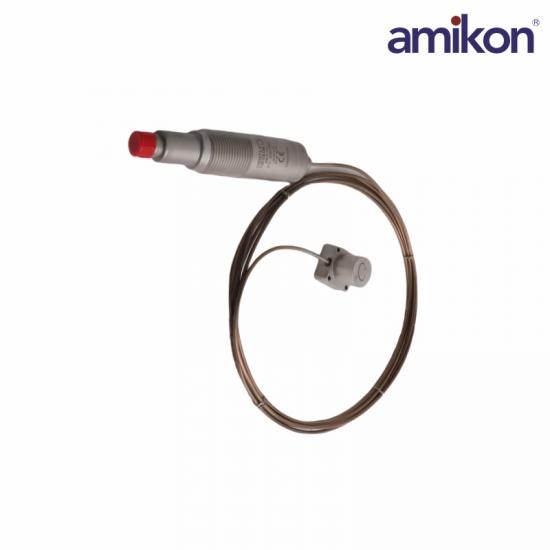

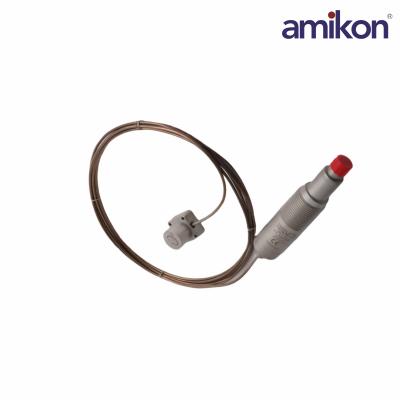

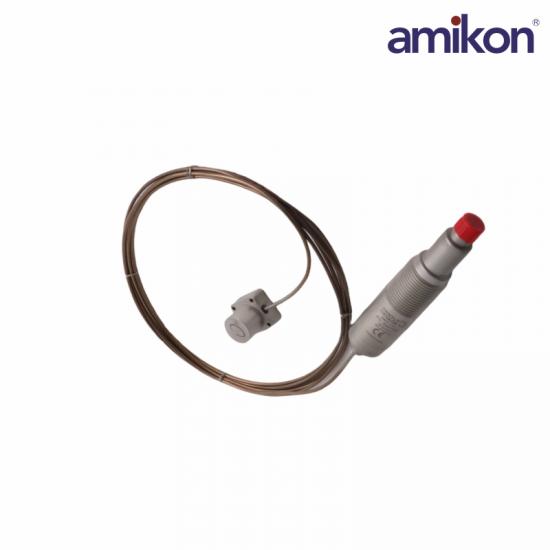

The 330750 and 330752 High Temperature Velomitor System sensor head and integral cable are designed for high temperature environments. This enables you to mount the sensing head on surfaces with temperatures up to +400°C (+752°F).

To accomplish this, the transducer design segregates the sensing element from the signal conditioning electronics. The two are permanently connected using an integrated cable. The integrated cable eliminates connectors which are a significant source of transducer failures.

The cable enables you to position the signal conditioning electronics in a cooler location. The internal electronics withstands temperatures of 55°C to +121°C (-67°F to +250°F). The integrated design makes it possible to capture machinery performance data comparable to other Bently Nevada Velomitor transducers, but at significantly higher temperatures.

Frequently Asked Questions

Q : What is the exact temperature limit for the sensor head?

It operates continuously from -54°C to +400°C (-65°F to +752°F)

Q : What is the precise sensitivity of the 330750-20-05?

The scale factor is 5.7 mV/mm/s (145 mV/in/s) ±5%

Q : What is the official frequency range of this system?

The rated frequency range spans from 15 Hz to 2,000 Hz

Q : What is the minimum allowed bend radius for the cable?

The hardline cable requires a minimum bend radius of 51 mm (2.0 inches)

Product Applications

Oil and Gas Refineries: Used to monitor bearing vibration in catalytic cracking units, high-temperature pumps, gas turbines, and compressors.

Coal Power Plants: Used to monitor heavy-duty gas turbines, steam turbines, induced draft fans, and boiler feed pumps.

Iron and Metallurgical Plants: Used to monitor high-temperature, heavy-duty equipment such as blast furnace blowers and hot/cold rolling mill drive systems.

Chemical Plants: Used for measuring the absolute velocity of casing vibration in high-temperature reactor stirring shafts, special high-temperature pumps, and fans.
