Brand |
Bently Nevada |
|
Model |

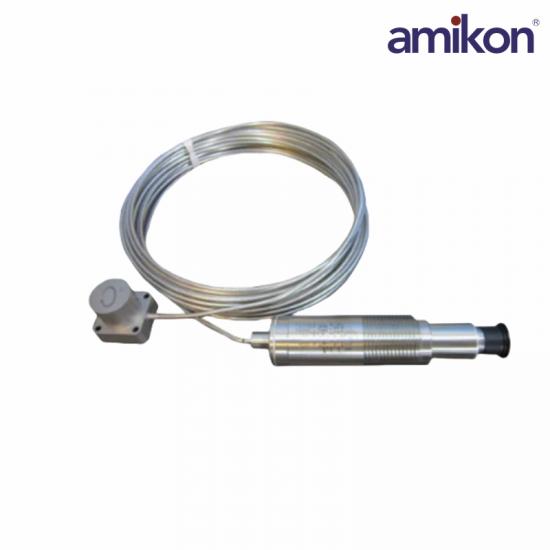

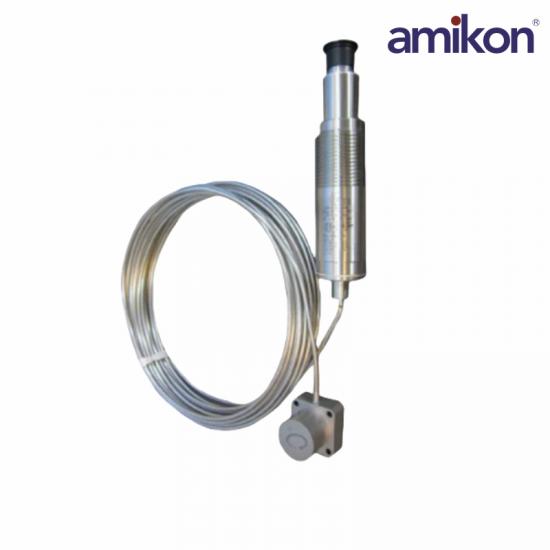

330752-40-CN |
|
Built-in Cable(Code 40) |
4.0 m |
|
Max Probe Head Temp |
≤400℃(752℉) |
|
Housing Material |
304 Stainless Steel |
|
Hardline Cable Temp Range |
-55℃～+400℃（-67℉～+752℉） |
|
Electronic Unit Temp Range |
-55℃～+121℃（-67℉～+250℉） |
|
Shock Resistance |
2500 g（24535 m/s²）peak |
|
Amplitude Linearity |
±2% within 152 mm/s (6 in/s) peak |
|
Output Bias Voltage |
-12 VDC ±2.0 VDC |
The cable enables you to position the signal conditioning electronics in a cooler location. The internal electronics can withstand temperatures ranging from 55°C to +121°C (-67°F to +250°F).
The integrated design allows for capturing machinery performance data comparable to other Bently Nevada Velomitor transducers, but at significantly higher temperatures.
For lower temperature environments, the standard 330500 Velomitor Piezo-velocity Sensor is recommended. It can be installed in locations with a maximum operating temperature of +121°C (+250°F).
Frequently Asked Questions
Q1: What is the Bently Nevada 330752-40-CN High Temperature Velomitor System used for?
A1: It is used for vibration monitoring and machinery condition monitoring in high-temperature industrial applications.
Q2: What is the 330752-40-CN cable length of the system?
A2: Cable Length option 40 provides a total cable length of 4.0 meters.
Q3: What is the 330752-40-CN maximum sensing head temperature?
A3: The 330752-40-CN sensing head can operate at temperatures up to 400°C (752°F).
Q4: What material is used for the 330752-40-CN housing?
A4: The 330752-40-CN housing is made of 304 stainless steel.
Q5: What type of connector does the 330752-40-CN system use?
A5: It uses a 2-pin MIL-C-5015 receptacle connector.
Product Applications
Gas turbines and steam turbines: Primarily installed near the turbine casing and bearing housings to monitor unit vibration under high-temperature environments.
High-temperature pumps and compressors in petrochemical/refinery plants: Monitor rotating equipment conveying high-temperature media (such as hot oil, crude oil, and pyrolysis gas).
Industrial boiler induced draft fans and blowers: Monitor bearing vibration of high-temperature flue gas fans in power plants and large chemical plants.
Steel mills and heavy industrial hot rolling lines: Deployed in critical machinery exposed to heat radiation and high ambient temperatures.
|
