Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooBrand: Bently Nevada

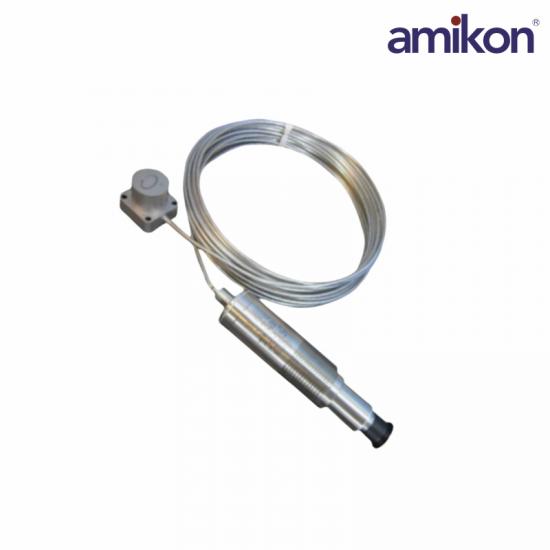

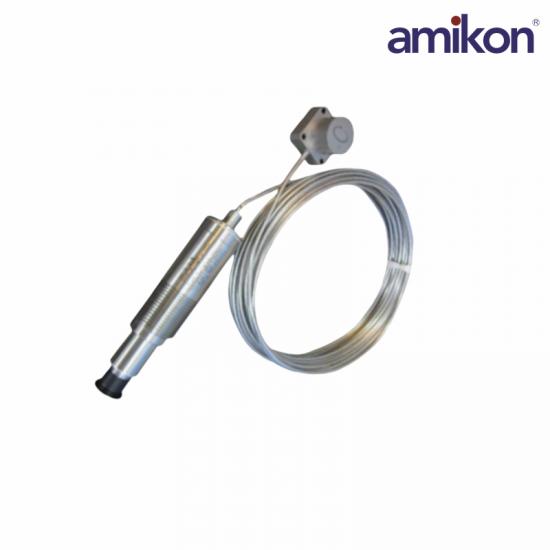

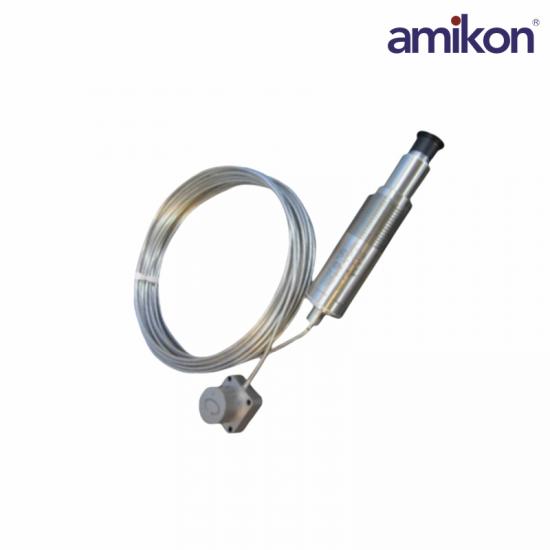

Model: 330752-80-CN
Type: High Temperature Velomitor System
Integral Hardline Cable: -55° to +400°C (-67° to +752°F)
Electronics: -55° to +121°C (-67° to +250°F)
Shock Survivability: 24,535 m/s² (2500 g) peak
Transverse Sensitivity: Less than 5% of Sensitivity
Amplitude Linearity: ±2% to 152 mm/s (6 in/s) peak
Mounted Resonant Frequency: Greater than 5 kHz
Output Bias Voltage: -12 ±2.0 VDC
Broadband Noise Floor (15Hz to 2kHz): 0.127 mm/s (0.005 in/s) rms nominal
Sensitivity: 5.7 mV/mm/s (145 mV/in/s) ±5%
The 330750 and 330752 High Temperature Velomitor System sensor head and integral cable are designed specifically for high-temperature environments. This design allows the sensing head to be mounted on surfaces with temperatures up to +400°C (+752°F).
To achieve this, the transducer design separates the sensing element from the signal conditioning electronics. These two components are permanently connected through an integrated cable, which eliminates connectors—a common source of transducer failures.
The cable allows you to position the signal conditioning electronics in a cooler location. The internal electronics can withstand temperatures ranging from 55°C to +121°C (-67°F to +250°F).
This integrated design enables the capture of machinery performance data comparable to other Bently Nevada Velomitor transducers, but at significantly higher temperatures.
For lower temperature environments, the standard 330500 Velomitor Piezo-velocity Sensor is recommended. It can be installed in locations with a maximum operating temperature of +121°C (+250°F).
