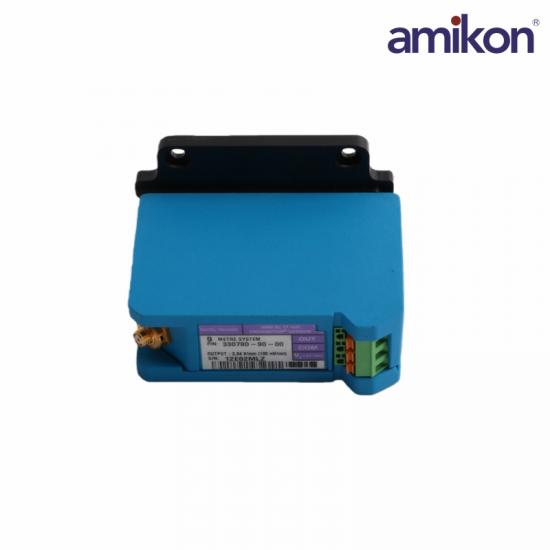

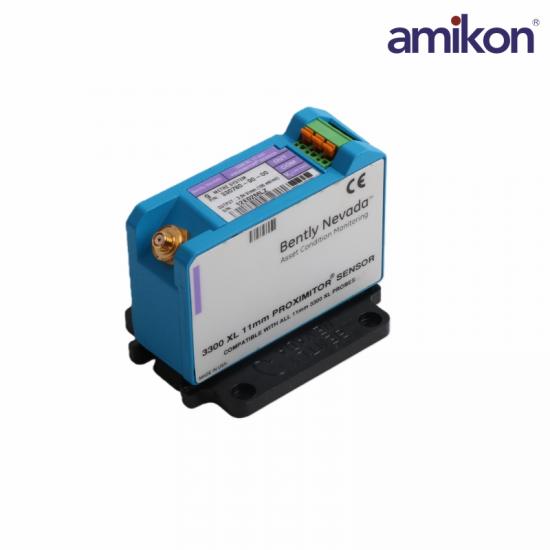

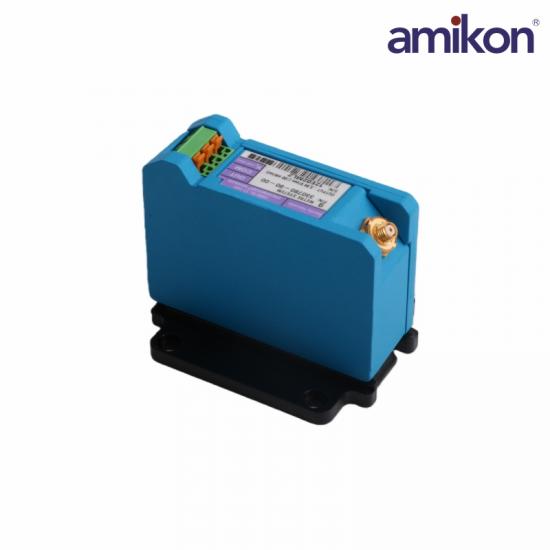

Bently Nevada 330780-90-05 3300 XL 11 mm Proximitor Sensor

330780-90-05
330780-90-05
330780-90-05

Bently Nevada 330780-90-05 3300 XL 11 mm Proximitor Sensor

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 11 MM PROXIMITY SYSTEM

330780-90-05

3300 XL 11 mm Proximitor Sensor

MANUFACTURERBently Nevada
MODEL330780-90-05
PART NUMBER330780-90-05
PRODUCT TYPE3300 XL 11 mm Proximitor Sensor
SYSTEM FAMILY3300 XL 11 mm Proximity System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts Sourcing Model Identification Support Global Customer Support In-Stock Supply Support
  • Item NO.:

    330780-90-05
  • Product Origin:

    USA
  • Brand/Manufature:

    Bently Nevada
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

BENTLY NEVADA 3300 XL 11 MM PROXIMITY SYSTEM

330780-90-05

Price and Availability Inquiry

The 330780-90-05 is a 9.0 m system-length, panel-mount 3300 XL 11 mm Proximitor Sensor with multiple approvals for non-contacting shaft vibration and position measurement.

SALES SUPPORTDirect specialist contact
QUOTATIONCurrent commercial details
DELIVERYDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Lisa Lin using the contact options on the right.

YOUR AMIKON CONTACT

LLLisa LinSales Specialist
WhatsApp+86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330780-90-05 and required quantity in your inquiry.

330780-90-05

Technical Specifications

Official identification, 9.0 m panel-mount ordering configuration and published 11 mm transducer-system performance data from Baker Hughes datasheet 146256.

01Product IdentityOfficial 11 mm system identification
ManufacturerBently Nevada
Article Number330780-90-05
Product Designation3300 XL 11 mm Proximitor Sensor
System Family3300 XL 11 mm Proximity System
02Ordering ConfigurationDecoded official option fields
System Length9.0 m (29.5 ft), option 90
MountingPanel mount
Approval OptionMultiple approvals (05)
System MatchingUse 11 mm probe plus extension cable totaling 9.0 m
03Electrical InterfacePublished Proximitor data
Power Requirement-17.5 to -26 Vdc, 12 mA maximum
Output Resistance50 ohm
Field Wiring3-conductor shielded triad, 16 to 24 AWG
Maximum Field Wiring305 m (1,000 ft)
04Measurement PerformanceOfficial AISI 4140 target data
Linear Range4.0 mm (160 mils)
Recommended Gap2.5 mm (100 mils)
Scale Factor3.94 V/mm (100 mV/mil), +/-10%
Frequency Response0 to 8 kHz (+0, -3 dB)

BENTLY NEVADA 330780-90-05 PRODUCT SUPPORT

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 330780-90-05.

01
Which probe and cable combination matches 330780-90-05?

Use a 3300 XL 11 mm probe and 330730 extension cable whose combined length is exactly 9.0 m.

02
When is the option 90 mounting style appropriate?

Option 90 is the official 9.0 m panel-mount configuration; choose DIN or no-hardware variants only when the cabinet design requires them.

03
Which supply should be checked before commissioning?

Confirm a -17.5 to -26 Vdc supply and adequate current capacity; operation more positive than the published limit can reduce linear range.

04
How should the initial probe gap be set?

Gap the 11 mm probe at approximately 2.5 mm against the actual target material, then verify voltage and linear travel.

05
Can an 8 mm probe be used with this Proximitor Sensor?

No. This part is calibrated for the 3300 XL 11 mm transducer system; match probe, cable and Proximitor family.

06
Which field cable is suitable for the monitor connection?

Use a 3-conductor shielded triad in the published 16 to 24 AWG range and maintain shield continuity.

07
Which details should accompany a replacement inquiry?

Provide 330780-90-05, the installed probe and extension-cable numbers, target material, mounting style and label photos.
