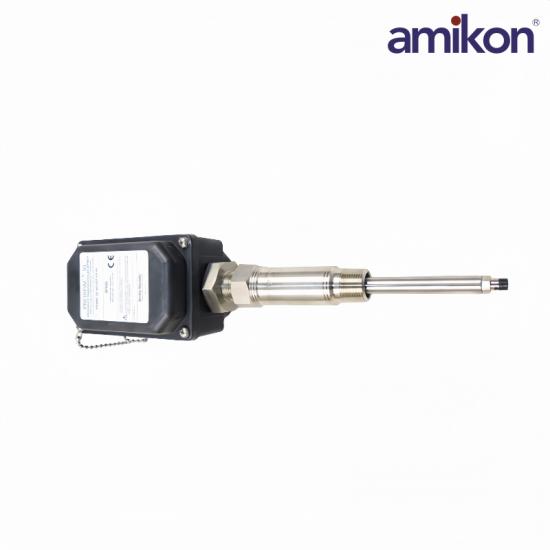

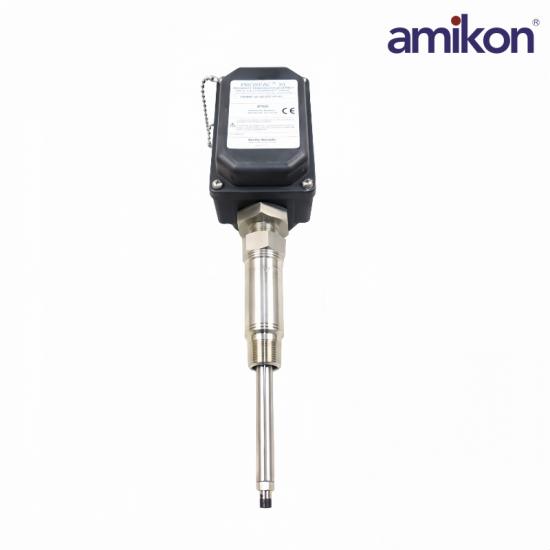

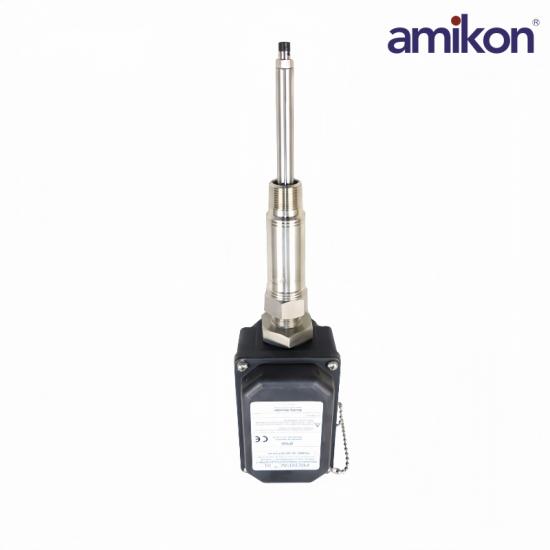

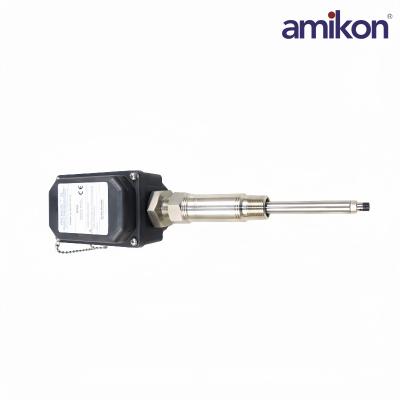

Bently Nevada 330800-28-45-020-03-02 PROXPAC Proximity Transducer Assembly

330800-28-45-020-03-02
330800-28-45-020-03-02
330800-28-45-020-03-02

Bently Nevada 330800-28-45-020-03-02 PROXPAC Proximity Transducer Assembly

✉  INQUIRE NOW

BENTLY NEVADA · PROXPAC legacy series

330800-28-45-020-03-02

PROXPAC Proximity Transducer Assembly

MANUFACTURERBently Nevada
MODEL330800-28-45-020-03-02
PART NUMBER330800-28-45-020-03-02
PRODUCT TYPEPROXPAC Proximity Transducer Assembly
SYSTEM FAMILYPROXPAC legacy series
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330800-28-45-020-03-02

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada PROXPAC legacy series

330800-28-45-020-03-02

Price and Availability Inquiry

The Bently Nevada 330800-28-45-020-03-02 is an original PROXPAC proximity transducer assembly configured with an 8 mm probe, 4.5 in standoff adapter and 2.0 in probe penetration.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330800-28-45-020-03-02 and required quantity in your inquiry.

Bently Nevada 330800-28-45-020-03-02

Technical Specifications

Official order-code, mechanical, cable, interface and system-reference data for 330800-28-45-020-03-02.

01Product IdentityLegacy assembly identification
ManufacturerBently Nevada
Part number330800-28-45-020-03-02
Assembly seriesOriginal PROXPAC 330800
Ordering unitsEnglish / inch
02Probe & GeometryConfigured probe and dimensions
Probe option8 mm probe with Multiple Approvals (28)
Standoff adapter4.5 in (45)
Probe penetration2.0 in (020)
Mounting thread3/4-14 NPT (02)
03Fittings & EnclosureOption 03 contents
Retaining nut torque29.5 N·m (260 in·lbf)
NPT fittingOne 3/4-14 NPT fitting
Stainless-steel reducerOne 3/4-14 to 1/2-14 NPT reducer
Housing protectionIP66 / Type 4X
04Order VerificationLegacy-series distinctions
Probe sleeve locknut torque39.3 N·m (350 in·lbf)
Probe DC resistance (1.0 m)7.58 ± 0.50 Ω
Supply / current (without barriers)-17.5 to -26 Vdc; ≤12 mA
Housing/sensor operating temperature-34 to +100 °C

Bently Nevada 330800-28-45-020-03-02 Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 330800-28-45-020-03-02.

01

Which English-unit fields set this 330800 assembly's mounting geometry?

The 45 field selects a 4.5 in standoff adapter, 020 selects 2.0 in probe penetration, and the final 02 specifies a 3/4-14 NPT outer mounting thread.

02

How should the 2.0 in penetration be reviewed for side-view effects?

Check the machine-case bore and target geometry. The manufacturer's PROXPAC ordering note warns that penetrations in the 1.0 to 2.0 in range may require a counterbore to reduce side-view or rear-view effects.

03

Which probe and approval package is selected by option 28?

Option 28 selects a 3300 XL 8 mm probe with Multiple Approvals in this complete original-series PROXPAC assembly.

04

How does fittings option 03 accommodate a 1/2-14 NPT conduit?

The kit includes one 3/4-14 NPT fitting, a stainless-steel 3/4-14 to 1/2-14 NPT reducer and two plugs. Confirm that those parts suit the actual conduit arrangement.

05

Where is the Proximitor Sensor located, and how is field wiring routed?

The original PROXPAC has a Proximitor Sensor in the housing cover. Short field runs can connect toward the monitor directly; longer runs may use a nearby junction box. No separate probe-to-Proximitor extension cable is needed.

06

Which enclosure rating applies after suitable installation?

The complete PROXPAC housing is a glass- and conductive-fiber-reinforced PPS design rated Type 4X and IP66; verify that installed entries preserve the required protection.

07

Which checks are required before migrating from 330800 to a PROXPAC XL order?

Do not substitute by series name alone. Compare the full part number, 4.5 in standoff, 2.0 in penetration, 3/4-14 NPT mount, option 03 fittings, approvals and the manufacturer's replacement guidance.
