Industrial Automation Module

330850-91-00

Price and Availability Inquiry

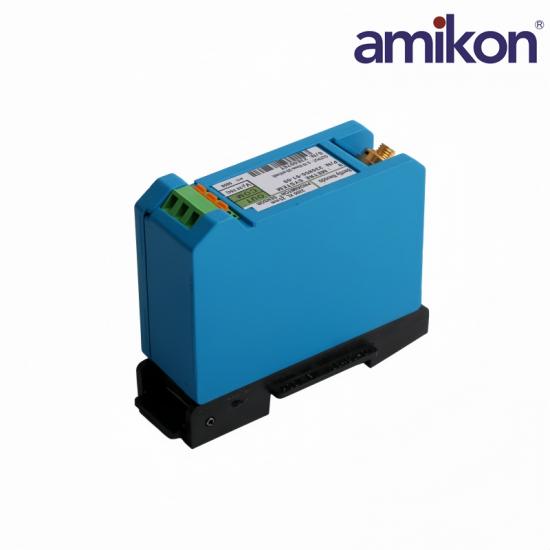

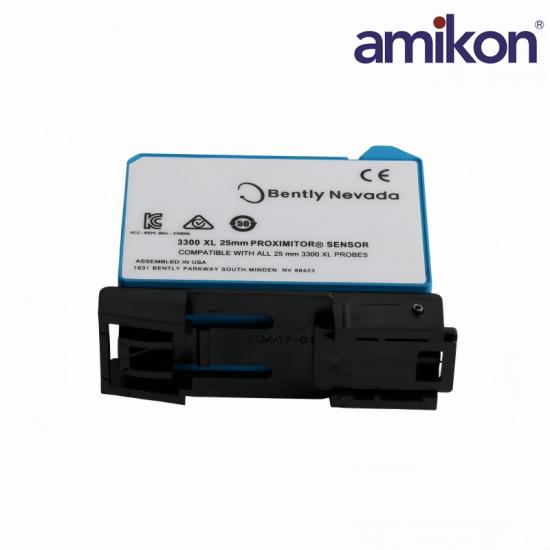

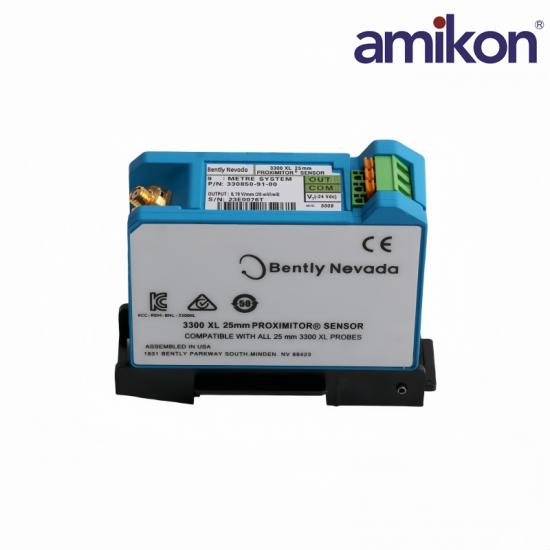

330850-91-00 is a 3300 XL 25 mm Proximitor Sensor configured for a 9.0 m system length, DIN-rail mounting and no agency approval option in differential-expansion measurement systems.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330850-91-00 and required quantity in your inquiry.

330850-91-00 PRODUCT DATA

Technical Specifications

Official electrical, measurement, environmental and configuration data for 330850-91-00.

01Product IdentityOfficial ordering data

ManufacturerBently Nevada

Order number330850-91-00

Product designation3300 XL 25 mm Proximitor Sensor

System family3300 XL 25 mm

02System & Electrical DataOfficial sensor data

System length9.0 m (29.5 ft)

Supply voltage−17.5 to −26 V DC

Agency approval optionNo approvals

Output resistance50 Ω

03Measurement PerformanceOfficial system data

Linearity deviationLess than ±0.31 mm (±12 mil)

Linear range12.7 mm (500 mil)

Scale factor0.787 V/mm (20 mV/mil) nominal

Frequency response0 to 2.7 kHz; +0/−3 dB typical

04Environmental & MechanicalOfficial sensor limits

Sensor materialA380 aluminum

Operating temperature−51 to +100 °C (−60 to +212 °F)

Storage temperature−51 to +105 °C (−60 to +221 °F)

Relative humidity100% condensing; non-submersible with protected connectors

330850-91-00 PRODUCT SUPPORT

Application and Ordering FAQ

Product-specific compatibility, application, installation and ordering guidance for 330850-91-00.

How is the 330850-91-00 order code configured?

Code 91 specifies a 9.0 m system length with DIN mounting, while code 00 specifies no agency approvals.

Which transducer components must be used with this Proximitor Sensor?

Use one compatible 3300 XL 25 mm proximity probe and extension cable whose combined length equals the 9.0 m sensor configuration.

Which power supply range is required?

Without barriers the official range is −17.5 to −26 V DC at 12 mA maximum; barrier installations require the more restrictive published range.

Which measuring range and scale factor apply?

The complete 25 mm system provides a 12.7 mm linear range with a nominal 0.787 V/mm scale factor.

How is the sensor mounted in the cabinet?

This exact 91 option uses the high-density DIN-mount configuration rather than the panel-mount option.

Which target and field wiring limits should be checked?

Use an AISI 4140 target at least 61 mm in diameter for standard specifications and limit field wiring to 305 m.

Can only one system component be replaced during an upgrade?

No. When upgrading from older 7200 or 25 mm DE systems, the official guidance requires replacing the probe, extension cable and Proximitor Sensor with matched 3300 XL 25 mm components.
