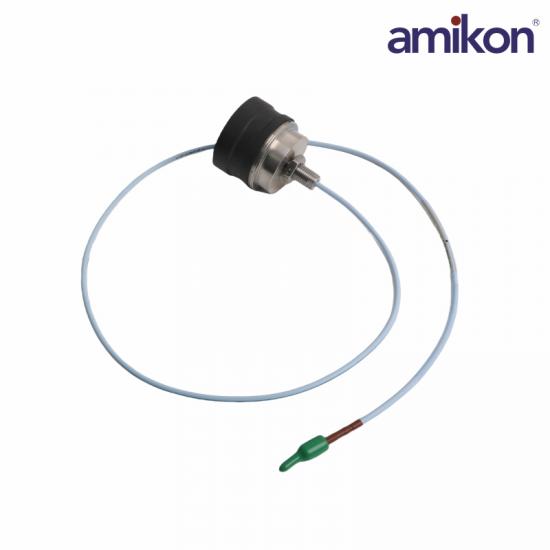

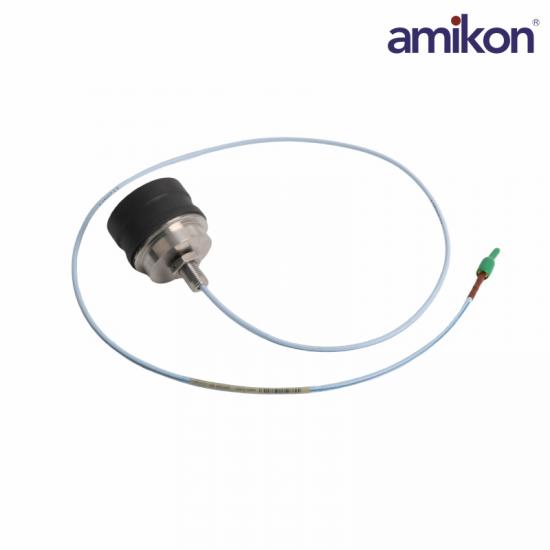

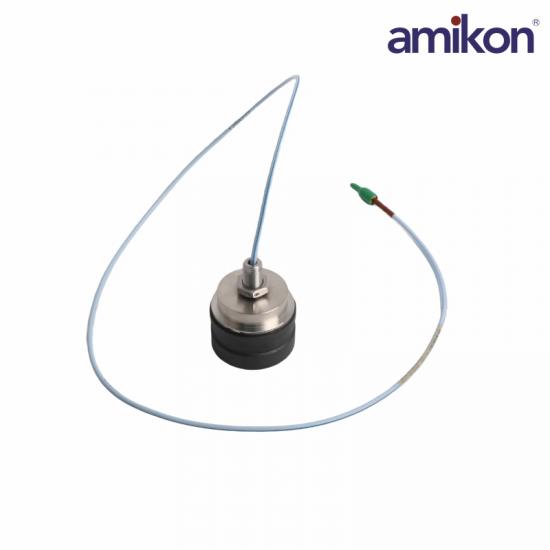

The 3300 XL 50 mm probe is designed to withstand the harshest steam turbine DE environments. It can operate continuously and maintain its accuracy at high temperatures up to 200°C (392°F) and can endure intermittent high temperatures up to 250°C (482°F). The 50 mm probe features both a front and rear seal, and together with the High Temperature FluidLoc cable (standard on all 50 mm probes), they prevent moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable. Each probe and cable includes connector protectors and a disposable connector protector installation tool to ensure the connectors remain free from contamination. The ClickLoc connector on the probe lead has a removable collar to facilitate routing the cable through tight clearances.

The 3300 XL 50 mm probe is available in straight exit case styles with ½-20 English threads or M14x1.5 metric threads, including a locknut with predrilled safety wire holes. The side exit probe has two ¼-20 mounting holes in the rear of the probe case. For both straight exit and side exit probes, the overall case diameter is 1.99 inches.

Frequently Asked Questions

Q1: What is the Bently Nevada 330876-03-10-00-00?

A1: It is a proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery.

Q2: What are the 330876-03-10-00-00 power requirements?

A2: The 330876-03-10-00-00 probe operates with a power supply range of −17.5 V DC to −26 V DC, with a maximum current consumption of 12 mA.

Q3: What is the 330876-03-10-00-00 output resistance?

A3: The 330876-03-10-00-00 output resistance is approximately 50 Ω, ensuring stable signal transmission.

Q4: What is the 330876-03-10-00-00 extension cable capacitance?

A4: The 330876-03-10-00-00 extension cable capacitance is 69.9 pF/m (21.3 pF/ft), which helps maintain signal integrity over distance.

Q5: What is the 330876-03-10-00-00 measurement range?

A5: The 330876-03-10-00-00 probe provides a measurement range of 27.9 mm (1.1 inches).

Product Applications

Electric power industry: Monitoring the shaft vibration and axial displacement of steam turbines, gas turbines and generators.

Petroleum and natural gas: Used for condition monitoring of large compressors, pump sets and centrifuges.

Chemical and metallurgical industries: Monitoring rotating equipment on key production lines to prevent production shutdowns due to mechanical failures.

Hydroelectric power: Monitoring the operating status of hydro turbine units.
